Topology Broadcast Based Reverse Path forwarding TBRPF

1

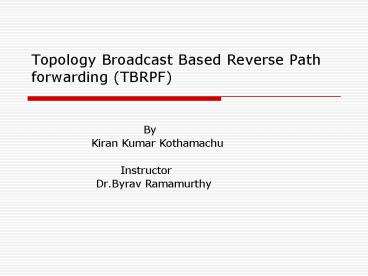

Topology Broadcast Based Reverse Path forwarding
(TBRPF)

• By
• Kiran Kumar Kothamachu
• Instructor
• Dr.Byrav Ramamurthy

2
Outline

• TBRPF overview
• Protocol characteristics
• TBRPF Operation
• TBRPF Advantages
• References

3
TBRPF Overview

• TBRPF is a proactive routing protocol (like OLSR
  and Star).
• TBRPF is a full topology link state protocol
  where each node is provided with state of each
  link in the network.
• Each link state update is broad cast reliably
  along a dynamic min-hop-path tree rooted at
  source u of the update.
• Each node I maintains a topology table contains
  link state updates, neighbor nodes.

4
TBRPF Operation

• A link state update is accpeted at node i if
  received from parent node .
• If node i accepts a link state update or
  discovers a new neighbor or a state change for an
  existing link to a neighbor, node I
• Enters update to its topology table.
• Forwards update to all neighbors in the children.
• Computes new parents for all sources by running
  Dijkstra.

5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
TBRPF Advantages

• Alternate paths and disjoint paths are
  immediately available allowing faster recovery
  from failures and topology changes.

9
References

• http//www3.ietf.org/proceedings/00jul/SLIDES/mane
  t-tbrpf/sld008.htm
• http//bwrc.eecs.berkeley.edu/Research/Cognitive/C
  R20Workshop/Liddle_CR.pdf
