CS263 Lecture 19 Query Optimisation

1

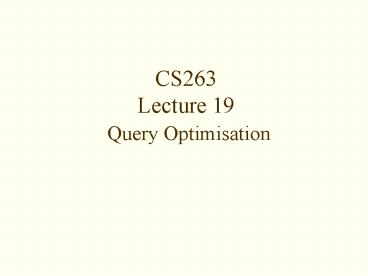

CS263Lecture 19 Query Optimisation
2
LECTURE PLAN

• Motivation for Query Optimisation
• Phases of Query Processing
• Query Trees
• RA Transformation Rules
• Heuristic Processing Strategies
• Cost Estimation for RA Operations

3
Motivation for Query Optimisation

• List all the managers that work in the sales
  department.
• SELECT
• FROM emp, dept
• WHERE emp.deptno dept.deptno
• AND emp.job Manager
• AND dept.name Sales

There are at least three alternative ways of
representing this query as a Relational Algebra
expression.
4
Motivation for Query Optimisation
Metrics 1000 tuples in the EMP relation 50
tuples in the DEPT relation 50 employees are
Managers (one per department) 5 separate Sales
departments (across the country)
Cost of processing the following query alternate
5
Motivation for Query Optimisation
Metrics 1000 tuples in the EMP relation 50
tuples in the DEPT relation 50 employees are
Managers (one per department) 5 separate Sales
departments (across the country)
Cost of processing the following query alternate
6
Motivation for Query Optimisation
Cost of processing the following query
7
Phases of Query Processing
8
Query Processing Stage - 1

• Cast the query into internal form
• This involves the conversion of the original
  (SQL) query into some internal representation
  more suitable for machine manipulation.
• The internal representation typically chosen is
  either some kind of abstract syntax tree, or a
  relational algebra query tree.

9
Relational Algebra Query Trees

• A Relational Algebra query can be represented as
  a query tree. For example the query to list all
  the managers that work in the sales department
  could be described as one of the following

Root
Intermediate operations
Leaves
10
Relational Algebra Query Trees

• A Relational Algebra query can be represented as
  a query tree. For example the query to list all
  the managers that work in the sales department
  could be described as one of the following

Root
Intermediate operations
Leaves
11
Relational Algebra Query Trees
Alternativequery tree for the query to list all
the managers that work in the sales department
?(job Manager) Ù (nameSales) (EMP
emp.deptno dept.deptno DEPT)
12
Relational Algebra Query Trees

• Alternativequery tree for the query to list all
  the managers that work in the sales department

13
Query Processing Stage - 2

• Convert to canonical form
• Find a more efficient representation of the
  query by converting the internal representation
  into some equivalent (canonical) form through the
  application of a set of well-defined
  transformation rules.
• The set of transformation rules to apply will
  generally be the result of the application of
  specific heuristic processing strategies
  associated with particular DBMSs.

14
Transformation Rules for RA Operations

• Conjunctive selection operations can cascade into
  individual selection operations (and vice versa).
• Sometimes referred to as cascade of selection.
• spÙqÙr(R) sp(sq(sr(R)))
• Example
• sdeptno10 Ù salgt1000(Emp)
  sdeptno10(ssalgt1000(Emp))

15
Transformation Rules for RA Operations

• Commutativity of selection
• sp(sq(R)) sq(sp(R))
• Example
• ssalgt1000(sdeptno10(Emp))
  sdeptno10(ssalgt1000(Emp))

16
Transformation Rules for RA Operations

• In a sequence of projection operations, only the
  last in the sequence is required.
• PLPM PN(R) PL (R)
• Example
• PdeptnoPname(Dept) Pdeptno (Dept))

17
Transformation Rules for RA Operations

• Commutativity of selection and projection.
• PAi, , Am(sp(R)) sp(PAi, , Am(R))
• where p ÎA1, A2, , Am
• Example
• Pname, job(snameSmith(Emp))
  snameSmith'(Pname, job(Staff))

Selection predicate (p) is only made up of
projected attributes
18
Transformation Rules for RA Operations

• Commutativity of theta-join (and Cartesian
  product).
• R p S S p R

NOTE Theta-join is a generalisation of both the
equi-join and natural-join
R X S S X R
Example
EMP emp.deptno dept.deptno DEPT
DEPT emp.deptno dept.deptno EMP
19
Transformation Rules for RA Operations

• Commutativity of selection and theta-join
• (or Cartesian product).

Selection predicate (p) is only made up of join
attributes
Example
(semp.deptno10 (EMP)) emp.deptno
dept.deptno DEPT
semp.deptno10 (EMP emp.deptno
dept.deptno DEPT)
20
Transformation Rules for RA Operations

• Commutativity of projection and theta-join
• (or Cartesian product).

PL(R r S) (PL1(R)) r (PL2(S))
Project attributes L L1 ? L2, where L1 are
attributes of R, and L2 are attributes of S. L
will also contain the join attributes
Example
P job, location, deptno (EMP emp.deptno
dept.deptno DEPT)
(P job, deptno (EMP)) emp.deptno
dept.deptno (P location, deptno (DEPT))
21
Transformation Rules for RA Operations

• Commutativity of union and intersection
• (but not set difference).
• R È S S È R
• R Ç S S Ç R

22
Transformation Rules for RA Operations

• Commutativity of selection and set operations
  (union, intersection, and set difference).
• Union
• sp(R È S) sp(S) È sp(R)
• Intersection
• sp(R Ç S) sp(S) Ç sp(R)
• Set Difference
• sp(R - S) sp(S) - sp(R)

23
Transformation Rules for RA Operations

• 10 Commutativity of projection and union
• PL(R È S) PL(S) È PL(R)

24
Transformation Rules for RA Operations

• 11 Associativity of natural join (and Cartesian
  product)
• Natural Join
• (R S) T R (S T)
• Cartesian Product
• (R X S) X T R X (S X T)

25
Transformation Rules for RA Operations

• 12 Associativity of union and intersection (but
  not set difference)
• Union
• (R È S) È T S È (R È T)
• Intersection
• (R Ç S) Ç T S Ç (R Ç T)

26
Heuristic Processing Strategies

• Perform selection operations as early as possible
• Translate a Cartesian product and subsequent
  selection (whose predicate represents a join
  condition) into a join operation.
• Use associativity of binary operations to ensure
  that the most restrictive selection operations
  are executed first
• Perform projections as early as possible.
• Compute common expressions once

27
Heuristic Processing - Example
28
Query Processing Stage - 3

• Choose candidate low-level procedures
• Consider the (optimised canonical) query as a
  series of low-level operations (join, restrict,
  etc).
• For each of these operations generate alternative
  execution strategies and calculate the cost of
  such strategies on the basis of statistical
  information held about the database tables
  (files).

29
Query Processing Stage - 4

• Generate query plans and choose the cheapest
• Construct a set of candidate Query Execution
  Plans (QEPs).
• Each QEP is constructed by selecting a candidate
  implementation procedure for each operation in
  the canonical query and then combining them to
  form a string of associated operations.
• Each QEP will have an (estimated) cost associated
  with it the sum of the cost of each of its
  operations.
• Choose the QEP with the least cost.

30
Cost Based Optimisation

• Cost Based Optimisation (stages 3 4)
• A good declarative query optimiser does not rely
  solely on heuristic processing strategies.
• It chooses the QEP with the lowest estimated
  cost.
• After heuristic rules are applied to a query,
  there still remains a number of alternative ways
  to execute it .
• The Query Optimiser estimates the cost of
  executing each one (or at least a number) of
  these alternatives, and selects the cheapest one.

31
Costs associated with query execution

• Secondary storage access costs
• Searching for data blocks on disk,
• Reading data blocks from disk
• Writing data block to disk
• Storage costs
• Cost of storing intermediate (temp) files
• Computation costs
• Cost of CPU usage
• Main memory usage costs
• Cost of buffering data
• Communication costs
• Cost of moving data across

32
Database statistics used in cost estimation

• Information held on each relation
• number of tuples
• number of blocks
• blocking factor
• primary access method
• primary access attributes
• secondary indexes
• secondary indexing attributes
• number of levels for each index
• number of distinct values of each attribute

33
Physical Data Structures File Types

• Heap (Sequential, Unordered)
• no key columns
• queries, other than appends, scan every page
• rows are appended at the end
• duplicate rows are allowed
• Ordered
• physically sorted data file with no index
• Hash (Random, Direct)
• data is located based on the (calculated) value
  of a hash field (key)
• Indexed Sequential (ISAM)
• sorted data file with a primary index
• BTree
• dynamic multilevel index
• reuses deleted space on associated data pages

34
Strategies for implementing the RESTRICT operation

• Different access strategies dependant upon the
  structure of the file in which the relation is
  stored, and whether the predicate attribute(s)
  have been indexed/hashed Each uses a different
  cost algorithm (which refers to specific database
  statistics).
• Linear Search (Heap)
• Binary Search (Ordered)
• Equality on Hash Key
• Equality condition on primary key
• Inequality condition on primary key
• Equality condition on secondary index
• Inequality condition on secondary BTree index
• If the selection predicate is a composite (AND
  OR) then there are additional cost
  considerations!

35
Strategies for implementing the JOIN operation

• Different access strategies dependant upon the
  structure of the files in which the relations to
  be joined are stored, and whether the join
  attributes have been indexed/hashed Each uses
  its own cost algorithm (which refers to specific
  database statistics).
• Block nested loop join
• Indexed nested loop join
• Sort-merge join
• Hash join

36
Query Optimisation Summary

• The aims of query processing are to transform a
  query written in a high-level language (SQL),
  into a correct and efficient execution strategy
  expressed in a low-level language (Relational
  Algebra), and to execute the strategy to retrieve
  the required data.
• There are many equivalent transformations of the
  same high-level query, the DBMS has to choose the
  one that minimises resource usage.
• There are two main techniques for query
  optimisation. The first uses heuristic rules that
  order the operations in a query. The second
  compares different execution strategies for those
  operations, based on their relative costs, and
  selects the least resource intensive (cheapest)
  ones.
