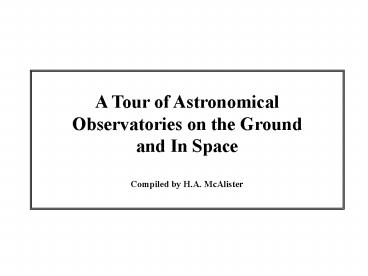

A Tour of Astronomical Observatories on the
Ground and In Space Compiled by H.A. McAlister
2
But First, A Little Bit About Light
The light we see with our eyes is a form of
electromagnetic radiation which propagates
through space at the speed of light c where c
300,000 km/sec ( 186,000 mi/sec). This
radiation exists in the form of a wave that is
characterized by its wavelength l and
frequency n such that lxn c.
l
l
Propagation direction
c
l
n is the number of waves that pass a fixed point
in one second
3
The Electromagnetic Spectrum Visible Light
Invisible Region (long ls)
Infrared
Red
Orange
Incident White Light
Yellow
n
Visible Region Roy G. Biv
Green
Blue
Glass Prism
Indigo
Violet
l
Ultraviolet
Energy
Invisible Region (short ls)
Screen
4
The Electromagnetic Spectrum Complete Spectrum
Region g-rays X-rays Ultraviolet Visible Light
Infrared Microwave Radio
l (meters) lt10-12 10-11 10-8 0.4x10-6-
0.7x10-6 10-5 10-3 gt 10-3
n (Hertz) gt1020 1018 1016 1014 1013 1011 lt
1011
5
Astronomical Telescopes Refracting Telescopes
fo
fe
Incoming Starlight
Eyepiece
Observer
Focus
Refracting Objective Lens (convex)
fo
Magnifying Power
fe
6
Astronomical Telescopes Newtonian Reflecting
Telescopes
Secondary Mirror (flat)
Incoming Starlight
Reflecting Objective Mirror (concave)
Focus
Observer
7
Astronomical Telescopes Light Gathering Power
The amount of light collected by a telescope is
proportional to the area of the telescopes
objective lens or mirror. The diameter of the
objective is known as the aperture (A) of the
telescope. Remember that the area of a circle
is given by pr2 or p(A/2)2 in the case of a
telescope whose aperture is A.
Objective 1
Objective 2
Thus, we can compare the light gathering power
(LGP) of two telescopes using
LGP1 p(A1/2)2


(A1/A2)2
(10/1)2 100 for the case of the 10-m
Keck telescope compared
with the 1-m Yerkes
telescope.

LGP2 p(A2/2)2
8
Some Early Telescopes
4.5 ft
One of Galileos early telescopes c. 1610 (wood
and paper with 1-inch aperture)
Newtons first reflecting telescope c.
1670 (metal mirror with 2-inch aperture)
9
Early Telescopes Hevelius 140-ft Long Refractor
c. 1670
10
Early Telescopes Huygens Aerial Telescope c.
1680
11
Early Telescopes Hevelius Rooftop Observatory c.
1670
12
Yerkes ObservatoryUniversity of Chicago,
Williams Bay, WI
40-inch (1-m) telescope is the worlds largest
refractor
13
Mount Wilson ObservatoryMt. Wilson, CA
14
Mount Wilson Observatory100-inch Telescope
15
Mount Wilson Observatory100-inch Dome with Orion
16
Mount Wilson Observatory150-ft Solar Tower with
Comet Hale-Bopp 1997
17
Mount Palomar ObservatoryCaltech, Mt. Palomar, CA
18
Kitt Peak National ObservatoryNational Science
Foundation, Kitt Peak, AZ
19
Kitt Peak National Observatory4-m Mayall
Telescope
20
Kitt Peak National Observatory4-m Mayall
Telescope Control Room
21
Kitt Peak National ObservatoryMcMath-Pierce
Solar Telescopes
22
Kitt Peak National ObservatoryWIYN Telescope
23
Cerro Tololo Inter-American Observatory4-m
Telescope at Night
24
Mauna Kea ObservatoryOn the Big Island of Hawaii
25
W.M. Keck ObservatoryTwo 10-meter telescopes on
Mauna Kea
10-meters is the largest aperture of any single
telescope in the world.
26
W.M. Keck ObservatoryWith NASA Sponsored
Interferometer Outriggers
27
Gemini TelescopesTwo 8-meter telescopes on Mauna
Kea, Hawaii and Cerro Pachon, Chile
28
European Very Large Telescope (VLT)Four
8.2-meter telescopes on Cerro Paranal, Chile
(latitude 25oS)
29
Radio Telescopes And Interferometric Arrays
30
The Green Bank Telescope (GBT)100-m Dish is
the Worlds Largest Fully Steerable Radio
Telescope
31
Arecibo Radio Telescope 1000-ft Radio/Radar
Telescope in Arecibo, PR
32
The Very Large Array (VLA)National Radio
Astronomy Observatory, near Socorro, NM
33
The Very Long Baseline Array (VLBA)National
Radio Astronomy Observatory
Kitt Peak Site
34
Telescopes in Space
35
NASAs Great Observatories
36
Hubble Space Telescope
37
James Webb Space Telescope To be launched in 2013
38
James Webb Space Telescope On display in Orlando,
June 2006
39
Georgia State Universitys Astronomical
Observatories
Student Observatory Roof of Urban Life Building
on Campus Hard Labor Creek Observatory 50 miles
east of Atlanta near Rutledge, Georgia The CHARA
Array On Historic Mount Wilson, California
40
GSUs Hard Labor Creek Observatory Rutledge, GA
Multiple-Telescope Telescope
16-in Cassegrain Telescope
41
Optical Interferometry
42
GSUs CHARA Array Mt. Wilson, CA
E1
E2
W1
OPLE
W2 (Keck)
100-in
BCL
Michelson Building
S2
60-in
Kapteyn Cottage
S1
43
CHARAs Telescope Enclosures
Concept Engineering by Sea West Enterprises,
Inc.
44
Installing CHARAs Telescope Enclosures February
1998
45
CHARAs 1-meter Telescopes
46
CHARAs Beam Synthesis Facility

• 308-ft long, 12,000 ft2 area
• A Building within a Building
• Thermally Vibrationally Stabilized
• Encloses OPLEs BCL

47
Optical Delay Lines
South Cart Pair
JPL Integration
Setting Sleepers
Metrology Laser
48
GSUs CHARA Array Mt. Wilson, CA
