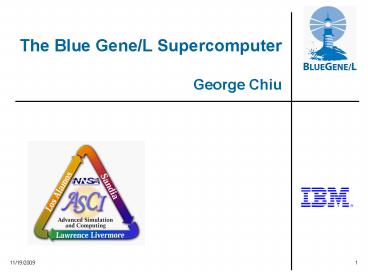

The Blue GeneL Supercomputer George Chiu

1
The Blue Gene/L Supercomputer George Chiu
2
June 2005 25th TOP10 of the TOP500 list
IBM is the clear leader in the TOP500 list with
51.8 of systems and 57.9 of installed
performance.
3
BG/L 32768 nodes (IBM Rochester) Linpack 136.8
TF/s sustained, 183.5 TF/s peak 1 TF
1000,000,000,000 Flops
4
Blue Gene/L Sales

• Advanced Industrial Science and Technology, Japan
  (Yutaka Akiyama) 4 racks 2/05
• Argonne National Laboratory Consortium (William
  Gropp, Rick Stevens) 1 rack 12/04
• ASTRON Lofar - Holland (Harvey Butcher) 6
  racks 3/05
• Boston University (Claudio Rebbi) 1 rack
  12/04
• Ecole Polytechnique Federale de Lausanne (Henry
  Markram) 4 racks 06/05
• IBM Yorktown Research Center 22 racks 06/05
• IBM Almaden Research Center 2 racks 03/05
• Juelich (Thomas Lippert) 1 rack 7/05
• Lawrence Livermore National Laboratory (Mark
  Seager, Don Dossa) 65 racks 32 3/05
• National Center for Atmospheric Research (Richard
  Loft) 1 rack 3/05
• NIWS (Suesada) 1 rack 1/05
• San Diego Supercomputing Center (Wayne Pfeiffer)
  - Intimidata 1 rack 12/17/04
• University of Edinburgh (Anthony Kennedy, Richard
  Kenway) 1 rack 12/04

5
BlueGene/L System Buildup
System
64 Racks, 64x32x32
Rack
32 Node Cards
180/360 TF/s 32 TB
Node Card
(32 chips 4x4x2) 16 compute, 0-2 IO cards
2.8/5.6 TF/s 512 GB
Compute Card
2 chips, 1x2x1
Chip
90/180 GF/s 16 GB
2 processors
5.6/11.2 GF/s 1.0 GB
2.8/5.6 GF/s 4 MB
6
Two Computation Modes for the BG/L Node

• Mode 1 (Co-processor mode)
• CPU0 does all the computations
• CPU1 does all the communications (including
  MPI etc)
• Communications can overlap with computations
• Peak compute performance is 5.6/2 2.8
  GFlops
• Mode 2 (Virtual node mode)
• CPU0, CPU1 act as independent virtual nodes
• Each one does both computations and
  communications
• The two CPUs communicate via common memory
  buffers
• Computations and communications can not
  overlap.
• Peak compute performance is 5.6 GFlops

CPU0
CPU1
CPU0
CPU1
7
(No Transcript)
8
Supercomputer Power Efficiencies
9
Microprocessor Power Density Growth
10
(No Transcript)
11
HPC Challenge Global-Random Access (Gup/s)
12
Summary of performance results

• DGEMM
• 92.3 of dual core peak on 1 node
• LINPACK
• 73.73 of peak on 32,768 nodes (136.8 Tflops/s on
  3/23/05)
• SPECint2000 316
• SPECfp2000 436
• G-FFTE 48.993 GFlop/s
• STREAM
• Tuned Copy 3.8 GB/s, Scale 3.3 GB/s, Add
  2.8 GB/s, Triad 3.0 GB/s
• Standard Copy 1.8 GB/s, Scale 1.3 GB/s, Add
  1.5 GB/s, Triad 1.5 GB/s
• Competitive with STREAM numbers for most high end
  microprocessors
• G-Random Access
• Ranked 1 in HPCC at 0.134994 gups/s
• MPI
• Latency 3.3 ls at 700 MHz

13
Comparing Systems
14
BlueGene/L Compute ASIC

• IBM CU-11, 0.13 µm
• 11 x 11 mm die size
• 25 x 32 mm CBGA
• 474 pins, 328 signal
• 1.5/2.5 Volt

15
Dual FPU Architecture

• Two 64 bit floating point units
• Designed with input from compiler and library
  developers
• SIMD instructions over both register files
• FMA operations over double precision data
• More general operations available with cross and
  replicated operands
• Useful for complex arithmetic, matrix multiply,
  FFT
• Parallel (quadword) loads/stores
• Fastest way to transfer data between processors
  and memory
• Data needs to be 16-byte aligned
• Load/store with swap order available
• Useful for matrix transpose

16
BlueGene/L Interconnection Networks

• 3 Dimensional Torus
• Interconnects all compute nodes (65,536)
• Virtual cut-through hardware routing
• 1.4Gb/s on all 12 node links (2.1 GB/s per node)
• 1 µs latency between nearest neighbors, 5 µs to
  the farthest
• MPI 3.3 µs latency for one hop, 10 µs to the
  farthest
• Communications backbone for computations
• 0.7/1.4 TB/s bisection bandwidth, 68TB/s total
  bandwidth
• Collective Network
• One-to-all broadcast functionality
• Reduction operations functionality
• 2.8 Gb/s of bandwidth per link
• Latency of one way tree traversal 2.5 µs, MPI 6
  µs
• 23TB/s total binary tree bandwidth (64k machine)
• Interconnects all compute and I/O nodes (1024)
• Ethernet
• Incorporated into every node ASIC
• Active in the I/O nodes (164)
• All external comm. (file I/O, control, user
  interaction, etc.)

17
BlueGene/L System
18
Complete BlueGene/L System at LLNL
BG/L I/O nodes 1,024
WAN
506
visualization
128
archive
128
BG/L compute nodes 65,536
Federated Gigabit Ethernet Switch 2,048 ports
CWFS
226
1024
Front-end nodes
28
Service node
8
8
Control network
19
Applications

• N-body simulation
• Classical molecular dynamics AMBER8, Blue
  Matter, ddcMD, DL_POLY, GRASP, LAMMPS, LJ,
  MDCASK, NAMD, PRIME (Schrodinger), SPaSM
• Quantum chemistry CHARMm, CPMD, FEQMD,
  GAMESS-UK, GAMESS-US, Gaussian, NWChem, Qbox,
  QMC
• Plasma Physics TBLE
• Stellar dynamics of galaxies Enzo
• Complex multiphysics code
• Climatology CCSM, HOMME
• Computational Fluid Dynamics FLUENT, Miranda,
  Overflow, POP (Ocean), Raptor, SAGE, sPPM,
  STAR-CD,
• Astronomy Accretion, planetary formation and
  evolution, stellar evolution, FLASH (supernova),
  Radiotelescope (Astron)
• Electromagnetics FDTD code
• Finite element analysis, Car Crash LS-Dyna,
  NASTRAN, PAM-Crash (ESI), HPCMW (RIST)
• Radiative transport 2-D SPHOT, 3-D UMT2000
• Neutron transport Sweep3D
• Weather MM5, IFS (ECMWF)
• Life Sciences and Biotechnology mpiBLAST,
  Smith-Waterman
• CAD/CAE AVBP
• Crystallography with X-Ray Diffraction Shake
  Bake
• Drug Screening OpenEye Scientific Software,
  Tripos, MOE (CCG Chemical Computing Group)
• Finance NIWS (Nissei)

20
BlueGene/L will allow overlappingevaluation of
models for first time
Continuum
Mesoscale
s
Time Scale
Microscale
ms
Finite ElementPlasticity of complex shapes
Atomic Scale
Aggregate Materials Aggregate grain response,
poly-crystal plasticity
ms
ns
Dislocation Dynamics Collective behavior of
defects, single crystal plasticity
BlueGene/L simulations bring qualitative change
to material and physics modeling efforts
Molecular Dynamics Unit mechanisms of defect
mobility and interaction
ps
mm
Length Scale
mm
nm
21
Closing Points

• Blue Gene represents an innovative way to scale
  to multi-teraflops capability
• Massive scalability
• Efficient packaging for low power and floor space
  consumption
• Unique in the market for its balance between
  massive scale-out capacity and preservation of
  familiar user/administrator environments
• Better than COTS clusters by virtue of density,
  scalability and innovative interconnect design
• Better than vector-based supercomputers by virtue
  of adherence to Linux and MPI standards
• Blue Gene is applicable to a wide range of Deep
  Computing workloads
• Programs are underway to ensure Blue Gene
  technology is accessible to a broad range of
  researchers and technologists
• Based on PowerPC, Blue Gene leverages and
  advances core IBM technology
• Blue Gene RD continues so as to ensure the
  program stays vital
