Title: ILC intro


1

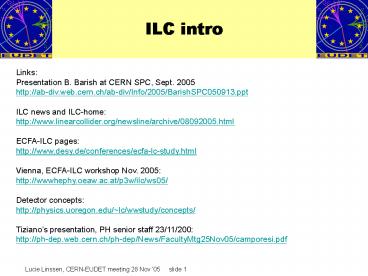

ILC intro
Links Presentation B. Barish at CERN SPC, Sept.
2005 http//ab-div.web.cern.ch/ab-div/Info/2005/Ba
rishSPC050913.ppt ILC news and
ILC-home http//www.linearcollider.org/newsline/a
rchive/08092005.html ECFA-ILC pages http//www.d
esy.de/conferences/ecfa-lc-study.html Vienna,
ECFA-ILC workshop Nov. 2005 http//wwwhephy.oeaw.
ac.at/p3w/ilc/ws05/ Detector concepts http//phy
sics.uoregon.edu/lc/wwstudy/concepts/ Tizianos
presentation, PH senior staff 23/11/200 http//ph
-dep.web.cern.ch/ph-dep/News/FacultyMtg25Nov05/cam
poresi.pdf
2
basic ILC performance aims
  • Ecm adjustable from 200 500 GeV (or even down
    to Z0 peak)
  • Upgradable to Ecm 1 TeV
  • Luminosity ? ?Ldt 500 fb-1 in 4 years
  • Ability to scan between 200 and 500 GeV
  • Energy stability and precision below 0.1
  • Electron polarization of at least 80

3
schematic machine layout
single arm drawn
4
Beam Delivery
  • 2820 bunches, 300 µm, 300 ns separtion
  • bunch train duration 0.9 ms, 5Hz repetition
    rate
  • Optional 20 mrad or 2 mrad beam crossing
  • 1 or 2 interaction points ?
  • gamma-gamma and e-gamma options

5
machine bunch parameters
0.9 ms bunch train duration
6
main accelerator physics challenges
  • Develop High Gradient Superconducting RF systems
  • Achieve nm scale beam spots
  • Reach Luminosity Requirements

7
main machine parameter decisions to be taken
Critical choices luminosity parameters gradient
8
global plan (accelerator)
9
main detector requirements
  • Momentum resolution
  • ?(1/p) 4 10-5
  • magnetic field, point resolution, track length,
    number of points,
  • low density
  • Precise EM calorimetry Energy flow in jets
  • Jet resolution ?E/E 30/vE
  • through particle flow method in fine-grained
    calorimeter
  • Efficient B-tagging
  • precise vertex detector placed at low radius,
    low density

10
the SiD concept
  • High field solenoid (5T)
  • Vertex (small pixels, e.g. CCD), with timing
  • Tracker silicon only, with timing (R1.3 m)
  • ECAL SiW
  • HCAL optional (Steel, W) with (scint, GEM, RPC)
    with either analog or digital readout

11
the SiD concept
vertex detector
tracker
12
the LDC concept
  • Solenoid (4T)
  • Inner tracker pixels silicon
  • TPC (200 pad rows, GEM or micromegas), R1.7 m
  • ECAL SiW
  • HCAL similar to SiD

13
the LDC concept
vertextracking
vertical cut LDC
14
the GDC concept
  • Solenoid (3T)
  • Inner tracker pixels silicon
  • TPC (gt100 pad rows, GEM or micromegas), R2.1 m
  • ECAL Scintillator W
  • HCAL Scintillator - W

15
the GLD concept
vertical cut GLD
16
the 4th concept
  • 2 air-coil Solenoids (2T)
  • Vertex pixels (5 µm)
  • TPC with silicon strips at inner and outer radii,
    R1.4 m
  • Calorimeters triple readout fibres
    (scintillation/cherencov/neutron)
  • Muon detection ATLAS drift tubes

17
main RD activities
  • Vertexing
  • Small pixels, thin integrated detectors, low
    power
  • ? MAPS, DEPFET, CCDs
  • Trackers, silicon
  • High resolution, low power (pulsed), low
    material, time info
  • TPC
  • Resolution 80 µm, high density readout, low
    material, low power

18
main RD activities
  • ECAL/HCAL
  • High granularity, small Rmol, high density,
    excellent jet resolution (separation of
    electromagnetic hadronic neutron components)
  • ? Silicon-tungsten RD
  • ? Scintillator (tile/strip/fiber)

19
ILC physics
  • e,e- (gamma-gamma and e-gamma) interactions
  • Electroweak precision measurements
  • Higgs couplings, Higgs spin
  • Electroweak symmetry breaking
  • SUSY (precision parameters, LHC discovery)
  • Extra dimensions, new theories
  • Impacts on cosmology (e.g. dark matter)
