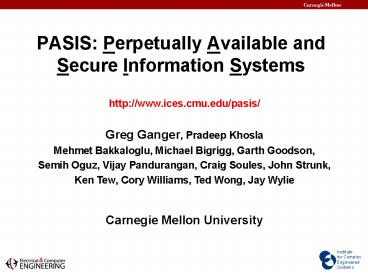

PASIS: Perpetually Available and Secure Information Systems

1
PASIS Perpetually Available and Secure
Information Systems
http//www.ices.cmu.edu/pasis/ Greg Ganger,
Pradeep Khosla Mehmet Bakkaloglu, Michael
Bigrigg, Garth Goodson, Semih Oguz, Vijay
Pandurangan, Craig Soules, John Strunk, Ken Tew,
Cory Williams, Ted Wong, Jay Wylie Carnegie
Mellon University
2
PASIS Objective

• Create information storage systems that are
• Perpetually Available
• Information should always be available even when
  some system components are down or unavailable
• Perpetually Secure
• Information integrity and confidentiality should
  always be enforced even when some system
  components are compromised
• Graceful in degradation
• Information access functionality and performance
  should degrade gracefully as system components
  fail
• Assumptions Some components will fail, some
  components will be compromised, some components
  will be inconsistent, BUT.
• surviving components allow the information
  storage system to survive

3
Survivable Storage Systems

• Surviving server-side intrusions
• decentralization data distribution schemes
• provides for availability and security of storage
• Surviving client-side intrusions
• server-side data versioning and request auditing
• enables intrusion diagnosis and recovery
• Tradeoff management balances availability,
  security, and performance
• maximize performance given other two

4
Step 1 Decentralized storage systems
5
Step 2 Data distribution schemes

• Scheme Algorithm ltParametersgt
• E.g., 3-fold replication replication ltn 3gt
• 1000s of possible choices
• Many different algorithms
• Cryptographic
• Threshold (n shares, any m to reconstruct)
• Hybrids and combinations
• Many reasonable parameters

6
PASIS Agent Architecture
System Characteristics
User Preferences
Tradeoff Management
Client Applications
PASIS Storage Nodes
Multi-read/write Communication
Encode Decode
7
Features of PASIS Architecture

• Security
• confidentiality no single storage node can
  expose data
• integrity no single storage node can modify data
• Availability
• any M-of-N storage nodes can collectively provide
  data
• Flexibility
• range of options in space of trade-offs among
  availability, security, and performance

8
Engineering survivable systems

• Performance and manageability need to approach
  that of conventional systems
• to ensure significant acceptance
• Approach exploit threshold scheme flexibility
• achieve maximum performance given desired levels
  of availability and security
• requires quantification of the corresponding
  trade-offs
• Approach exploit ability to use any M shares
• send requests to more than M and use quickest
  responses
• send requests to closest servers first

9
Trade-off management challenges

• Reasoning about security and availability
• specifically, need to translate settings into
  configuration rules and limitations
• e.g., M gt 0.7N, (N-M) gt 2, M shares cannot be on
  same OS
• Finding best performing configuration
• within the limitations imposed by first step and
  given the expected workload and system components
• configuration includes choices of data
  distribution scheme, values for M and N and P,
  degree of over-requesting, server selection
  algorithm, etc
• 2-step approach predict performance of any
  possible configuration and then search for
  optimal choice

10
Trade-off space
Scheme Selection Surface
11
Quantifying the axes

• Performance (MB/s)
• based on simple performance model
• computed with standard performance eval.
  techniques
• Availability (nines)
• standard fault tolerance math with independent
  failures
• relative values are useful even if not
  independent
• Security (Effort to defeat)
• estimate effort involved with possible attack
  paths
• overall effort is minimum of possible efforts

12
Generation of scheme selection surface

• Quantify performance, security, and availability
  of each algorithmparameters
• Select best performing scheme for each region

13
Trade-off space
Scheme Selection Surface
14
Selection surface sensitivity

• Models are insensitive to small perturbations of
  configuration parameters
• Scheme selection surface is different for truly
  different configurations

15
Extreme read workload
50 Read Workload
99 Read Workload
16
Security Model Sensitivity
ECircumventCrypto EBreakIn
ECircumventCrypto 2.5?EBreakIn
17
Self-Securing Storage Nodes

• Goal protect data from authorized but malicious
  users
• both client-side intruders and insider attacks
• How assume all clients are compromised
• keep all versions of all data
• audit all requests
• Benefits
• fast and complete recovery by preventing data
  destruction and undetectable modifications
• enhanced detection and diagnosis of intrusions by
  providing tamper-proof audit logs

18
Where were at

• PASIS architecture and first prototype complete
• Re-implementation of agent in progress
• more efficient, portable, flexible
• and more data distribution schemes and storage
  protocols
• based on lessons from initial prototype
• Re-implemented multi-versioning storage node
• working on internal space and time optimizations
• investigating how it can be used for intrusion
  diagnosis
• Trade-off quantification in progress
• measurements and modeling continue

19
Technology Transfer

• Transfer path via CMU Consortia (e.g., PDL)
• 15-20 storage and networking companies
• EMC, HP, IBM, Intel, 3Com, Veritas, Sun, Seagate,
  Lucent, Snap, LSI Logic, Hitachi, Panasas,
  Network Appliances, Platys Communications
• 20 embedded system infrastructure companies
• Raytheon, Boeing, United Technologies, Hughes,
  Bosch, ATT, Adtranz, Emerson Electric, Ford, HP,
  Intel, Motorola, NIIIP Consortium
• Joint Battlespace Infosphere (JBI)
• working with AFRL researchers to understand how
  PASIS technologies might fit into JBI
  infrastructures

20
PASIS Summary

• Decentralization data distribution schemes
• provides for availability and security of storage
• Tradeoff management balances availability,
  security, and performance
• and it is good engineering practice!
• Data versioning to survive malicious users
• enables intrusion diagnosis and recovery
