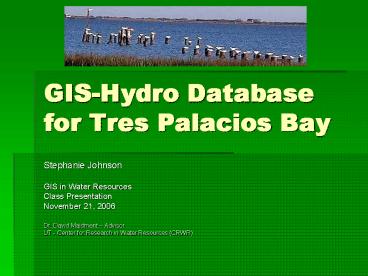

GIS-Hydro Database for Tres Palacios Bay

• Stephanie Johnson
• GIS in Water Resources
• Class Presentation
• November 21, 2006
• Dr. David Maidment Advisor
• UT - Center for Research in Water Resources
  (CRWR)

2
Study Area
3
Tres Palacios Bay

• Determined to not meet dissolved oxygen standards
  of 5 mg/L
• TCEQ begins a dissolved oxygen TMDL study
• Overseen by Dr. Paul Montagna, Texas AM Corpus
  Christi
• Water quality monitoring for the past 2 years
• UT-CRWR asked to help with water quality modeling

4
Objective of Project

• Develop a GIS-based dataset for future water
  quality modeling
• Introductory qualitative analysis of monitoring
  data
• Use as a test for webscraper tool that calculates
  duration curves

5
Dataset
Soils
Roads/Cities

• Base map used as a guide
• Developed by Sally Morehead, M.S. at UT-Austin
  Marine Science Institute for initial efforts in
  study
• Hydrography
• Tyler Jantzen at CRWR - NHDPlus data
• Jantzen is supported by TNRIS to develop TX
  NHDPlus Data for his M.S. thesis
• General data
• Texas General Land Office (GLO) Political
  boundaries, roads, etc.
• Federal agencies NRCS soil and landuse, etc.
• Local data sources
• TCEQ Water quality monitoring stations
• Dr. Paul Montagna water quality monitoring
  points in Tres Palacios Bay

6
Tres Palacios Bay Watershed
7
Monitoring Points

• 1 USGS flow gage on the Tres Palacios River
• 27 TCEQ TRACS river monitoring points
• 4 monitoring points in Tres Palacios Bay
• 17 TCEQ TRACS monitoring points in Tres Palacios
  Bay

8
Qualitative Analysis

• Patterns in low D.O. levels
• Location
• Time of year
• Natural events (flow regime)
• Theorize potential sources of pollution
• Non-point vs. point
• Municipal vs. rural

(Yet to be completed)
9
Load Duration Curve

• Basically a cumulative frequency distribution
• Derived from a flow duration curve
• Multiply flow duration curve by the desired
  pollutant concentration and a conversion factor
• Outcome allowable load/day

10
Example
Low Flow
High Flow
Applying the water quality standard of 0.05 mg/L
TP
Source White Paper (1) Advantages and
Disadvantages of Using Load Duration Curves to
Estimate Existing and Allowable Loads for the
Development of Nutrient TMDLs
11
Webscraper for Duration Curve Creation
12
Raw Data
13
Calculations
14
Calculations (cont.)
15
Future Work

• For GIS Project
• Qualitative analysis of monitoring data
• Create more duration curves for Tres Palacios
  River
• Future Modeling
• Use data to develop a dissolved oxygen water
  quality model
• Use runoff and land use data to determine the
  nutrient load from each catchment
• Create duration curves for non-point source
  nutrient loads

16
Credits

• Thanks to
• Dr. David Maidment, Tyler Jantzen, Dr. Paul
  Montagna, Ernest To, Sally Morehead, CRWR staff

Photos from http//www.portofpalacios.com
17
