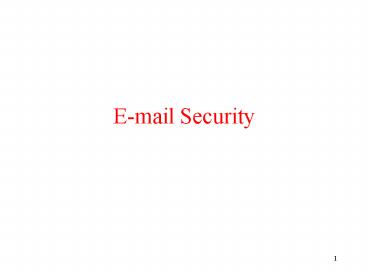

Email Security

1
E-mail Security
2
E-mail Security

• Secure e-mail techniques
• PGP
• S/MIME
• E-mail vulnerabilities
• Spam mail

3
Secure e-mail techniques

• Main features
• Confidentiality
• Integrity
• Authentication
• Non-repudiation
• Encryption
• Symmetric
• Asymmetric
• PGP
• S/MIME

4
Main features

• Confidentiality assures message content was not
  read by others
• Integrity assures that the message was not
  tampered with
• Authentication validates the sender
• Non-repudiation validates both the sender and the
  receiver. Sender cannot disown the message and
  receiver cannot claim non-receipt of message

5
Encryption

• Data of all sorts that traverse the network can
  be encrypted in one of two ways
• Symmetric key (also known as DES, Data Encryption
  Standard)
• The same key is used to both encrypt and decrypt
• Not suited, when dealing with many users
• 40-bit encryption is the most common.
• 128-bit and 512-bit encryptions are considered
  strong, meaning that they are very difficult to
  crack.

6
Encryption

• Triple DES (3DES) is another method that is
  considered a strong encryption. This uses three
  keys instead of one key for encryption.
• DES was originally developed by IBM in the 1970s
  but is not a proprietary technology
• Hardware and software that use strong encryption
  cannot be exported from U.S.
• DES uses 64-bit encryption key
• AES (Advanced Encryption Standard developed by
  NIST) uses 128-bit to 256-bit encryption key

7
Encryption

• Asymmetric key methods are more popular today
• Consists of a public key / private key pair
• Encrypt using public key for a specific user
• The intended user uses his/her private key to
  decrypt the message
• Known as the Diffie-Helman model
• Popularized by RSA (Rivest, Shamir, and Adleman
  who were at MIT in the mid-1970s when this was
  published)

8
Encryption

• Each user gets a public key that is known to
  others and a private key that is secret. Both
  keys are needed to decrypt. Only the public key
  is needed to encrypt.
• Today, the public key / private key pairs are
  issued by Verisign, an offshoot of RSA
• Organizations that provide the public key /
  private key are known as Certificate Authorities
  (CAs)

9
PGP

• Developed by Phil Zimmerman at MIT
• Provides 256-bit encryption key
• Widely used for encrypting files such as email
• Message is first compressed
• A session key is created
• The compressed message is encrypted using the
  session key

10
PGP

• Session key alone is encrypted using the
  recipients public key
• The encrypted message and the encrypted session
  key are then sent to the receiver
• Receiver uses the private key to decrypt the
  session key first. Then the message is decrypted
  in a symmetric key way.

11
PGP

• PGP supports the following encryption methods
• CAST (named after the developers Carlisle Adams
  and Stafford Tavares) is owned by Nortel. It
  uses a 128-bit key. Freeware.
• IDEA (International Data Encryption Algorithm).
  Not a freeware. Uses 128-bit key
• Triple DES. Freeware. Uses three 56-bit keys
• Twofish. Uses 128-bit, 192-bit, and 256-bit.
  Freeware.

12
S/MIME

• Secure/Multipurpose Internet Mail Extensions
  goal is to provide integrity for email
• S/MIME is in version 3 and it is an IETF standard
• S/MIME follows a hierarchical trust scheme in
  which a trusted party passes on the trust to the
  next level below. For example, a trusted CAs
  Digital Certificate can be used for
  authentication
• S/MIME certificates follow X.509 standard

13
S/MIME
14
E-mail vulnerabilities

• Usually sent as plaintext and so subject to
• Interception
• Spoofing
• Alteration
• Trojan horses are usually hidden in emails
• As a widely used medium of free communication,
  sensitive data usually is sent via email

15
Spam email

• Spam email is unsolicited email sent in bulk
• Spammers send as much as 800,000 emails at a time
• Spamming is successful since there are people who
  buy products based on spam email
• AOL blocks 2 Billion spam emails a DAY. It is
  80 of the email traffic per day.
• Spam email in 2000 was 8 and in 2003 it was 54
• Lost productivity estimate
• In 2002, 9 Billion
• In 2003, 10 Billion

16
Spam email

• Congress passed an anti-spam legislation in 2003.
  It requires all emails to have legitimate return
  addresses
• Spam is considered a marketing tool as well
• Two of the well-known spammers are
• K.C. Smith of Tennessee
• Howard Carmack of Buffallo, NY
