Dead Channels, CFT Axial, 1Dec03

1

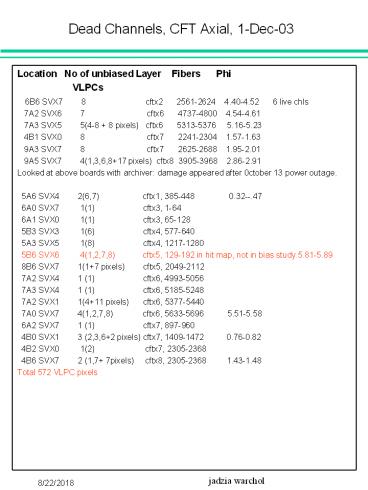

Dead Channels, CFT Axial, 1-Dec-03

• Location No of unbiased Layer Fibers
  Phi
• VLPCs
• 6B6 SVX7 8
  cftx2 2561-2624 4.40-4.52 6 live
  chls
• 7A2 SVX6 7
  cftx6 4737-4800 4.54-4.61
• 7A3 SVX5 5(4-8 8 pixels) cftx6
  5313-5376 5.16-5.23
• 4B1 SVX0 8
  cftx7 2241-2304 1.57-1.63
• 9A3 SVX7 8
  cftx7 2625-2688 1.95-2.01
• 9A5 SVX7 4(1,3,6,817 pixels) cftx8
  3905-3968 2.86-2.91
• Looked at above boards with archiver damage
  appeared after 0ctober 13 power outage.
• 5A6 SVX4 2(6,7) cftx1,
  385-448 0.32--.47
• 6A0 SVX7 1(1)
  cftx3, 1-64
• 6A1 SVX0 1(1)
  cftx3, 65-128
• 5B3 SVX3 1(6)
  cftx4, 577-640
• 5A3 SVX5 1(8)
  cftx4, 1217-1280
• 5B6 SVX6 4(1,2,7,8) cftx5,
  129-192 in hit map, not in bias study 5.81-5.89
• 8B6 SVX7 1(17 pixels) cftx5,
  2049-2112
• 7A2 SVX4 1 (1)
  cftx6, 4993-5056
• 7A3 SVX4 1 (1)
  cftx6, 5185-5248

2
6B6 current versus time
3
7A2 current versus time
4
3A7 current versus time
5
Other problems in CFT axialSome SVXs need odd
thresholds

•
  Layer Fibers
  phi
• 6B7 SVX0 board 451 readout errors
  cftx2 2625-2688 4.52-4.65
• 8A3 SVX1 board 609 does not rspond to vref
  cftx3 2497-2560 3.45-3.56
• 7A3 SVX0 readout errors
  cftx6 4673-4737 4.47-4.54 new
• 8A5 SVX0 board 461 readout errors
  cftx7 4801-4864 4.08-4.14
• 6A6 SVX0 board 518 readout errors
  cftx7 5121-5184 4.40-4.46
• BB1 resets itself
• 3A1 SVX0 board 489 needs odd SVX threshold
• 6B1 SVX0 board 581 needs odd SVX threshold

6
Dead Channels and Readout Problems

• DEAD CHANNELS
  READOUT PROBLEMS
• 6A2 4B0 4B1 9A3
  8A5 6A6
• SVX7 SVX1 SVX0 SVX7
  SVX0 SVX0

7
Testing Readout Problems

• Vref increased by 15 so now pedestals above
  threshold.
• Global threshold set to 0x56, triggering on led
  crossing

8
(No Transcript)
9
Testing Readout Problems

• Triggering on all crossings

10
Testing Readout Problems
11
Dead Channels, CFT Stereo 1-Dec-03

• Location No of unbiased
  Layer,Fibers Phi Alive pixels
• VLPCs
• 3A7 SVX7 8
  cftu1, 641-704 3
• 3B2 SVX6 4(1,2,3,85 pixels)
  cftu2, 1217-1280
• 2A5 SVX2 4(1,5,6,713 pixels)
  cftu3, 513-576
• 2A0 SVX7 8
  cftu4, 1217-1280 6 in
  VLPC 5
• 3B4 SVX2 7(1-5,7,8)
  cftv1, 833-896 2 in
  VLPC 8
• 3A0 SVX7 5 (1-4,86 pixels)
  cftv2, 193-256
• 3B1 SVX7 5(1,2,6,7,8)
  cftv3, 2049-2112
• 3B0 SVX0 4(1,6,7,87pixels)
  cftv3, 2113-2176
• 3A4 SVX7 6(1,3-5,7,8)
  cftv3, 2241-2304
• 1B1 SVX0 8
  cftv4, 129-192 7
• 1B0 SVX4 6(1,4,5,6,7,8)
  cftv4, 321-384
• Looked at above boards with archiver damage
  appeared after 0ctober 13 power outage.
• 4A4 SVX7 2(1,25 pixels)
  cftu3, 1857-1920
• BA6 SVX6 1(8)
  cftu3, 4033-4096
• 4A6 SVX7 2(1,810pixels) cps
  cftu4, 1473-1536
• 4A7 SVX7 3(1,2,63pixels) cps
  cftu4, 1537-1600

12

• 3A7 SVX3 6 cps
  cps
• 3B3 SVX3 7
  cps
• 3B6 SVX3 7
• 3B7 SVX3 1
  cps

13

• 3A7 SVX7 3 pixels alive pixels, VLPC channels
  32, 37, 38

14
6B6 SVX 7Red standard bias1V
15
6B6 SVX 7Black standard bias1V
16
6B6 SVX 7Red standard bias1V
17
6B6 SVX 7Red standard bias1V
18
6B6 SVX7

• Alive channels
• Channel VLPC fiber
• 3,13 35 2619
• 7,21 34 2620
• 10,26 22 2590
• 11,27 21 2563
• 25,52 32 2588
• 26,53 36 2598
• Hit Map during store

19
6B6 SVX7VRB 15 hdi 0 chip 7

• 110 overflows, 6 alive channels
• 110/6641173 overflows if all alive, compare
  this with 1100 overflows in neighboring chip 6

20
CFTX6 26-Nov-03
21
CFTX6 26-Nov-03
22
CFTX6 26-Nov-03
23
CFTX6 26-Nov-03
24
CFTX6 26-Nov-03
25
CFTX6 26-Nov-03
26
CFTX6 26-Nov-03
27
Dead cft channels

• 6-May-03
  15-August-03
• Layer Total Dead Dead VLPC Total Dead
  Dead VLPC
• cftx1 3 0 2560 5
• cftx2 17 8 3200 17 8
• cftx3 23 8 3840 15 0
• cftx4 6 0 4480 6
• cftx5 16 0 5120 16
• cftx6 29 16 5760 21 8
• cftx7 22 8 6400 36 16
• cftx8 24 8 7040 33 16
• cftu1 13 0 2560 13
• cftu2 13 0 3840 14
• cftu3 33 16 5120 33 16
• cftu4 19 0 6400 21
• cftv1 2 0 3200 1
• cftv2 9 0 4480 13
• cftv3 27 0 5760 36 8
• cftv4 19 0 7040 31
• Total 275 64 76800 311 72 (9 chips)
