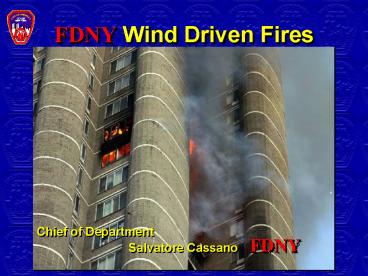

FDNY Wind Driven Fires

1
FDNY Wind Driven Fires
Chief of Department
FDNY
Salvatore Cassano
2
Motivation
3
Motivation
1980 1 Civilian fatality
1989 3 Civilian fatalities
1994 2 Civilian fatalities
1996 1 Firefighter fatality
1997 Numerous Injuries / Burns
1998 3 Firefighter / 4 Civilian fatalities
2004 Numerous Injuries / Burns
2006 Numerous Injuries / Burns
2007 Numerous Injuries / Burns
2008 1 Firefighter fatality
4
Partnerships in Research
Project Planning Spring of 2006
5
FDNY High Rise Research
Toledo, OH Pressure Exp. June 2006
Chicago, IL Fire Experiments November 2006
6
Wind Driven Fire
7
Vandalia Avenue
12-18-98
8
NIST Computer ModelVandalia Avenue
9
Further Research Required
Assistance to Fire Fighters Grant Program
10
FDNY High Rise Research
11
Research Goals

• Examine and Validate
• Stairwell Pressurization with Portable Fans
• Maintain Stairwells Clear of Smoke Heat
• Equalize Pressure of a Wind Driven Fire
• Wind Management Control
• Blocking Wind with (WCD) Wind Control Device
• Fire Curtains / Blankets
• Validate Alternate Strategies of Attack
• Flanking from Adjoining Space
• Deployment of Outside Streams
• Including the High
  Rise Nozzle

12
Research Building
13
Research Building
Conducted 12 controlled burns with WIND
14
Stairwell Pressurization

• Proven Success
• 27 Portable Gas powered Fan
• 24,000 cfm cubit feet per minute
• Placement
• 4 to 6 feet back
• 80 Angle

15
Stairwell Pressurization

• Clears Stairwell lt 60 seconds
• Open Bulkhead then Close
• Pressure Equalized at Fire Floor

16
Wind NOT a Factor

• Fan Pressure will Push Smoke Heat
• Back into Fire Apartment

17
Size Up

• The Ventilation Profile
• Outside Observations
• Inside Observations

18
Ventilation Profile
19
Ventilation Profile
20
Wind Management / Control

• Wind Control Devices
• Blankets
  Curtains

Temperatures Dropped 50 Upon Deployment
21
Wind Control Device
22
Alternate Strategies
Exterior Streams
The High Rise Nozzle
23
Defensive Attack
24
Sharing Technology
25
