10:4012:40 Breakout Session

1

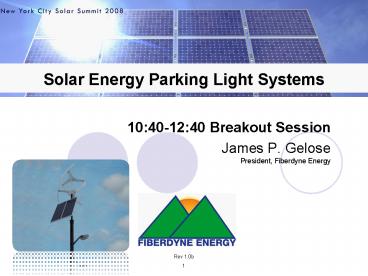

Solar Energy Parking Light Systems

• 1040-1240 Breakout Session
• James P. GelosePresident, Fiberdyne Energy

2
US DoE 20 Year Look _at_ LED Lighting

• Reduce electricity demands 62
• Eliminate 258 million tons of carbon emissions
• Avoid building 133 new power plants
• Financial savings exceed 115 billion

3
Parking Lot Lighting
4
Practical Applications

• Parking lots, street lights, pathways,
  residential driveways, residential areas,
  schoolyards, marinas, parks, security areas,
  government facilities and courtyards.

5
Solid-State Lighting (SSL) Benefits

• De-burden the Electrical Grid - 40 to 60
  energy savings over current lighting
  technologies.
• Instant-On Technology with motion sensing, this
  allows low energy mode
• Minimized Maintenance Costs proper designed SSL
  will last 50,000 hours (gt12 Years _at_ 11.2 hours
  per day). gt4X that of current technologies.
• Labor savings, minimize usage of bucket truck /
  lift longer life less maintenance , petroleum
  savings

6
Solid-State Lighting (SSL) Benefits

• Environmental - Current sodium, mercury, and
  fluorescent lighting technologies pose an
  environmental issue due to lead and mercury
  content. SSL technologies do not have this
  issue.
• Minimized Light Pollution - minimized glare,
  reduced light trespass and night sky pollution -
  International Dark-Sky Association (IDA)
  certification

7
Centurion Cobra Heads
4200 Lumens 8400
Lumens 12,600
Lumens 70w
140w
210w Life 50,000 hours
50,000 hours 50,000
hours
8
Color and Spectrum
9
Lighting for Optimal Coverage - Radiometric
Pattern
10
Solar Energy Solid-State Lighting (SSL)

• Solar SSL solutions are ideal for deployment in
  areas where it is cost prohibitive to install an
  electrical grid connection.

11
Solar SSL Efficient Power Interface

• PV Array Output 24 VDC
• SSL LED designed to require 24VDC
• No inverter power conversion inefficiencies

12
Centurion SSL Street Parking Lot Lighting
Series
13
Centurion LED Street Parking Lot Lighting
Series

• SSL 4,200 Lumens
• SSL 60 Watts
• PV Array 220 Watt
• Turbine 350 Watts

• SSL 8,400 Lumens
• SSL 120 Watts
• PV Array 432 Watt
• Turbine 350 Watts

14
Luminaire On-Time
15
Calculation for 4,200 Lumens SSL

• PV Array Output 220 Watts
• Winter Peak Sun Hours 3 (for example)
• Min. Watts Generated (per day) 220w x 3hr. 660
  Watts
• Lighting Load 60 Watts
• System Loss Factor 1.2
• Load with Loss Factor 60w 1.2 72 Watts
• On-time 660 Watts / 72 Watts 9.16 Hours

16
Twisted Savonius Vertical-axis Wind Turbine

• Under development
• Perfectly sized for SSL - LED Lighting
  Applications
• Release October-2008

17
Centurion - Street Parking Lot LED Lighting
Wind PV Solar Powered

• 220 watt PV solar panel
• 1.2KW Vertical Wind Turbine
• 60 watt LED luminaire
• Replaces a 250 watt convention luminaire
• Dusk to Dawn Operation
• Microprocessor Controlled
• Motion sensor turns the light on as required /
  can be disabled
• Fiberdyne Energy can custom design the lighting
  system to meet your exact requirements.

• Autonomous outdoor lighting with no connection to
  the power grid

Rev 4.0a
Rev 1.0a
18
Futures / Pricing

• As the pricing of SSL LEDs normalizes with mass
  deployment and as solar technology becomes more
  efficient and pricing reduces, the initial
  capital investments shall reduce by 10 to 20 per
  year.

19
Wall Packs

• Low Power Consumption 60 Watts
• 4,200 Lumens
• 50,000 Hours Life

20
Closing Comments Solid-State Lighting (SSL)
Benefits

• SSL has 40 to 60 energy savings over current
  lighting technologies.
• Minimized Maintenance Saves
• Minimize Lightings Environmental Impact
• Minimized Light Pollution
• Solar Wind Powered SSL No burden on the GRID
• Deployment is NOW!!!

21
www.edisonled.com
22
Thank You
23
Resume
James P. Gelose President of Fiberdyne Energy
- Frankfort, New York U.S.A. Mr. Gelose started
his career in 1981, holding Electronic
Engineering design positions with General
Electric designing digital avionics circuitry for
various radar applications. He then moved to Par
Microsystems designing Point Of Sale (POS)
terminals which are still in use today at many
major fast-food chains (such as McDonalds). In
1989 he advanced his career by joining Laser
Precision/Nettest Corporation(now Anristu), a
leading supplier of Test Measurement equipment
as a Senior Electrical Engineer. He was quickly
promoted to Vice President positions leading
Engineering, Marketing, and Sales organizations.
In 2001, Mr. Gelose was promoted to Business Unit
General Management of the Optical Networking
Group, growing the revenue from 30m to 70m in 3
years.

• Mr. Gelose joined Fiberdyne Labs in 2006 as
  Executive VP responsible for the sales/marketing
  functions. His efforts have contributed to sales
  growth of over 40. As of April 2008, Mr. Gelose
  was promoted to President of Fiberdyne Energy, a
  newly created division focusing on the
  development and marketing of innovative energy
  saving Solid State Lighting (SSL) solutions based
  on Solar and Wind power.
• Mr. Gelose has also held the position of Chairman
  of the Board for Mohawk Valley Applied Technology
  Corporation (MVATC), which is a non-profit
  organization chartered to assist small businesses
  in growth and develop. Mr. Gelose received a BS
  degree from the State University of New York, a
  AAS degree in Industrial Engineering form Canton
  ATC, along with several advanced management and
  leadership certificates through various
  organizations throughout his career.
• (Office 315.895.8470 ext 133 // cell
  315.717.6684 // e-mail jgelose_at_fiberdyne.com
  )
•
• Fiberdyne Energy
• 127 Business Park Drive
• Frankfort, New York 13340
• U.S.A.

24
