Radioactive Ion Beam

1

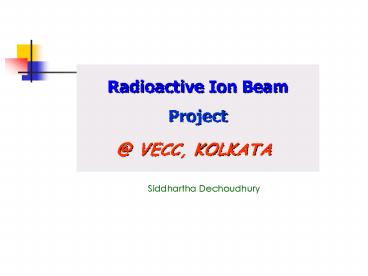

Radioactive Ion Beam Project _at_ VECC,
KOLKATA
Siddhartha Dechoudhury
2
SHE
Why to study Exotic Nuclei
126
184
p-drip line
p-drip line nuclei
Test of Standard Model NZ nuclei Superallowed
b-decay
Atomic Physics, Material science with RI Beams
rp-process
n-drip line
r-process path Origin of elements, Stellar
Nucleosynthesis
New Magic Numbers Shell Quenching
3
RIB facility at VECC Kolkata
1.5 keV/u
98 keV/u
29 keV/u
Dedicated beam-line for material science
experiments
Installation in progress
415 keV/u
286 keV/u
4
Thick target RD first few targets
Carbon , Al2O3, ZnO, HfO2, BN, LiF, MgO,
CaCl2, ThC2, UC2, ZrO2
Fibrous Target
Composite Thick Target
Al2O3 fiber
RVCF Al2O3
5

• Conceptualization of nano particles
• Problem with grain growth due to sintering

dTM 4.2(D.?1/2)1/2
ZnO
ZnO SiO2
Confirmation of zinc silicate phase from X-ray
data
Grain size 4-5 ?m
Grain size gt limit. grain size (10 ?m)
6
Integrated Thick-Target Electron Beam Plasma
Ion-Source
6
7
Two-Ion Source Charge Breeder design
calculations
SIMION

• 1 beam Surface ion-source e10 ?.mm.mrad E
  15 keV

• point-to-point beam transport 1 ion-source to
  end of dipole

TRANSPORT

• deceleration injection of 1 beam into ECR
  ion-source

IGUN
8
2-IS charge breeder beam-dynamics simulation

• 1 beam from the Surface ion-source injected
  into 6.4 GHz ECR ion-source for further
  ionization to n
• Gradual deceleration of 1 beam ( 20 eV) soft
  landing inside ECR

Plasma chamber
I 1 mA
Axial magnetic field
Tuner
Center of ECR plasma
Decelerator
Decelerated beam
14 mm
9
6.4 GHz On-Line ECR ion-source _at_ VECC
6.4 GHz Microwave
Dipole magnet
Solenoid coils
Injection box
10
(No Transcript)
11
RADIOFREQUENCY QUADRUPOLE (RFQ) first
post-accelerator

• Acceleration of RIB from 1 to 98 keV/u
• Heavy Ion RFQ ? q/A 1/16 f 37.6 MHz
• Extended rod structure ? Vane Length 3120 mm
  Vane Voltage 49.5 kV
• Transmission 83

RFQ development ? stage 1 ? ½ scale model
stage 2 ? 29 keV/u
RFQ stage 3
? 98 keV/u final RFQ
29 keV/u heavy-ion RFQ _at_ VECC
12
29 keV/u heavy-ion RFQ (close-up)

Result of Full power tests 29 keV/u RFQ
13
Energy measurement of RFQ output beam
Test Beam Ar 4
Beam line RFQ-Q1-Q2-Dipole
Experimental Results
14
Dirtha das expt.
Fe Implantation on ZnO
Fe extracted from ECR
using MIVOC technique
Fe irradiated ZnO sample
15
Chemically co-doping 2 at. Fe along with 2 at.
Mn in ZnO J. of Phys. D 41(2008) 135006,
M.Chakrabarti et.al
Beam Parameters

• Beam 56Fe
• Ion energy 29 keV/u i.e., 1.6
  MeV 56Fe after RFQ
• Implantation depth 1 mm
• (Bragg peak width of 0.2 mm (TRIM calculation)
• Total number of ZnO 5 1017 (in 1 cm2 area
  of thickness 0.5 mm)
• Available current 900 nA for 56Fe6
  5 1011 56Fe / sec
• NOTE
• Number of ions required for 2 Fe
  implantation in ZnO 1016

Substantial enhancement in magnetisation in Fe
implanted ZnO
16
Result of tests with 98 keV/u RFQ
3.4m RFQ during installation
17
RFQ to LINAC BEAM LINE (MEBT)
Re-buncher parameters Frequency 37.6
MHz Max. gap vol. 13.75 kV No. of gaps 4
Drift tubes 140 x 140 sq. mm
50mm dia. hole 48 mm long
Drift tube gaps 9.85 mm
OPTIMISED DESIGN PARAMETERS RFQ-Buncher
distance 2.2 m
Buncher-Linac distance 1.5 m
Buncher Voltage
13.75 kV BEAM PARAMETERS AT INPUT OF LINAC 1
Energy 85.6
keV/u ? ?W
? 7o ??
? 1 RE-BUNCHER CAVITY (?/4 RESONATOR) Drift
tube dimensions 140 mm x
140 mm L48 mm
Beam hole diameter
50 mm Inter drift tube gap
9.85 mm Total length
width of the cavity 232 mm x 232 mm
Height of the short 0.68
m Inner and outer conductors of the TL 60mm
? (O.D) 216mm ? (I.D) Q value
5750 Rp value
173 k?
18
Heavy-ion IH LINAC for RIB

• Acceleration of RIBs after RFQ from 98 keV/u to
  415 keV/u
• IH LINAC ? q/A 1/16 f 37.6 MHz E_max
  1.3E_K (10.2 MV/m)
• Transmission 100 Normalised acceptance en
  0.5 p-mm-mrad

LINAC Cavity
D.T. Stem
Drift Tubes
Lower Ridge
19
Linac -1 during assembly
20

• Status of RIB facility development

• 98 keV/u stable beams available from the facility

• beams available Oxygen, Nitrogen, Carbon,
  Argon, Iron,
• 1.5 keV/u (after ECR) 98 keV/u (after RFQ)
• Linac 1 2 presently under installation.
• 280 keV/u beam would be available by July/August
  2008. Linac 3 (415 keV/u) would be ordered soon.

• First RI beams planned
• 13N(t1/2 10 mins) graphite
  target
• 19Ne(t1/2 17 sec) ZnO
  target
• Beams December 2008 first proof of principle
  acceleration of RIB

21
(No Transcript)
22
?- induced fission (photo-fission) GDR peak at
13.5 MeV average photo-fission cross-section
160 mb
Expected yield of some very neutron-rich exotic
nuclei at target 78Ni 2 x 109 pps
132Sn 2 x 1011 pps 91Kr 1 x 1012 pps
94Kr 3 x 1010 pps
23
and e-Linac
TRIUMF
Parameters of e-Linac (nine cell)
50kW
50kW
50kW
50kW
50kW
10kW
13MeV
53MeV
Gun
50kW
50kW
50kW
50kW
50kW
10kW
Injector
Driver
24
First horizontal test module proposed to be
jointly developed by VECC and TRIUMF
25
Recent publications from RIB project group (in
international journals)

• J. of Phys. D (in press) Experiments (condensed
  matter (CM))
• J. of Phys. C20 (2208) 45217, Experiments (CM)
• J. of Mat. Sciences 43 (2208) 4175, Experiments
  (CM)
• Phys. Lett. A 371 (2007) 482. Experiments (CM)
• Nucl. Instrum. Meth. B261(2007)1018. RIB
  facility status
• Rev Sci Instrum. Vol78 (2007) 043303. RFQ
  results
• J of Phys. Condensed Matter 19, (2007) 236210.
  Experiments
• Ceramics International 34 (2008) 81 Target
• Nucl. Instrum. Meth. VolA560 (2006)182. Linac
  design
• Nucl. Instrum. Meth. VolA562 (2006)41.
  Beam-line
• Nucl. Instrum. Meth. VolA539 (2005)54. Target
• Nucl. Instrum. Meth. VolA547 (2005)270. Charge
  breeder design
• J. of Mat. Sc. 40 (2005) 5265. Experiments (CM)
• Nucl. Instrum. Meth. VolA535 (2004)599. RFQ
  design
• Physica C, Vol416, (2004) 25. Experiments (CM)
• Nanotechnology 15 (2004) 1792. Target
• Nucl. Instrum. Meth. VolA447 (2000)345. Charge
  breeder design
• __________________________________________________
  ____________________________
• Number of Ph. D degree awarded during 2005-07
  Four

26
THANK YOU
27
238U photo-fission fragments mass distribution
fission yield per electron for 238U as a function
of electron energy
