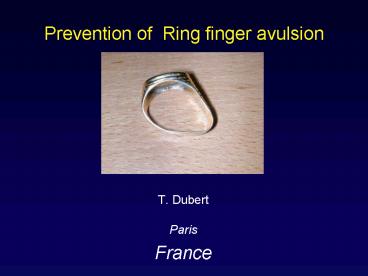

Prevention of Ring finger avulsion

1
Prevention of Ring finger avulsion

• T. Dubert
• Paris
• France

2
References

• Author Year Nbre of cases devasc Contry Perio
  d
• Crawford 1952 7 57 USA
• Davalli 1959 12 Italy 12 years
• Bevin 1963 4 100 USA
• Kinmonth 1964 1 per year 100
• Thompson 1968 24 USA
• Bianchi 1969 16 100 Italy 11 years
• Alonso Artieda1971 1 100 Spain
• Chase 1971 1 100 USA
• Carroll 1974 100 90 USA 20 years
• Flagg 1977 2 100 USA
• Hougaard 1986 14 85 Danemark 10 years
• Tampieri 1988 2 100 Italy
• Weil 1989 16 53 USA 10
• Urbaniak 1981 24 USA 5 years
• Weeks 1982 1 100 USA
• Nissenbaum 1984 17 88 USA 6 years
• Tsai 1984 12 100 USA 10 years

3
Mechanism of the accidentCatching the ring on
a fixed object while falling or jumping
30 are occupational accidents 70 of the
accidents occur in every day activities
30 to 49 yo  Regular  wedding rings Women
30 Men 60
4
Mechanism of the accidentCatching the ring on
a fixed object while falling or jumping

• Jumping from a moving vehicle
• Catching on a -pole or fence post
• A moving belt or other moving object
• On a nail
• slipping off a ladder or a tree
• Hanging up keys on a hook
• Shutting a door
• Jumping into the water from a pier
• Diving from a boat
• Attaching a goal-post nets
• Jammed in an antiaircraft machinegun

13 à 15 of all finger amputations
5
Mechanism of the accident
6
Mechanism of the accident
The ring is caught... and forces the soft
tissues to tear Amputation is frequent
7
Epidemiology
200 to 350 cases per year for a 60.106
population1 case per day in France 5
cases per day in Europe 25 (300.106
population)
Bianchi et al 1969 Carrol 1974 Davalli et
Zarotti 1959 Holst-Nielsen 1980 Kinmonth
1964
8
Consequences for the patient and the community

• Functional disability
• Cosmetic impairment
• Financial compensation

9
Kay- 1989

• I - Circulation adequate, with or without
  skeletal injury
• II - Circulation inadequate
• without skeletal injury
• III - Circulation inadequate
• with fracture or joint injury
• IV - Complete amputation

10

• Indication depends mainly
• on the
• Amputation level
• ABOVE FDS insertion - REPLANTATION
• BELOW FDS insertion - NO REPLANTATION

11
Prevention

•  The present day use of a finger ring frequently
  becomes as dangerous as the poison rings of the
  romans .

Bevin , 1963
12
Prevention

•  Should it be found to be mandatory to use a
  ring , serious thought should be given to
  modifying it so that this severe injury does not
  result in a tragedy .
• Carrol, 1974

13
Prevention
14
Mechanism of the accident

• Wedding rings
• Thin
• Sharp
• Too big

15
Prevention
Carroll 1974, Davalli and Zarotti
1959, Flagg et al 1977, Mitz
1994,Scerri and Ratcliffe 1994, Thompson et
al 1968
16
Existing prevention devices ?

• Weak point
• (Bianchi et al 1969, Varela
  1996)unacceptable because visible
• and no biomechnical experimentation

17
Prevention device

• Unvisible
• Sparing continuity of the ring
• Thresholds of finger resistance
• Thresholds of the ring opening
• Controls in cadaveric specimens

18
Many devices have been tested
19
High speed traction tests
20
The  Adlife  System!
21
Thresholds of finger resistance/Adlife rings
Laboratoire danatomie de la Faculté de
Médecine des Saints Pères
Ecole Nationale d Arts Métiers
22
High speed traction tests

• Skin treshold 5 Kg falling from a 50 cm
  height

23
Controls in cadaveric specimens
24
4 to 5 Kg No severe lesion
25
6 à 8 Kg 1 severe lesion / 21
26
gt9 Kg severe lesion 7/12
27
With a regular ring
28
With the preventive Adlife device
29
Traction tests at low speed

• F start F max
• Test 2 260 N 450 NAge 90 ans

46 after 70 yo
30
 Adlife  rings open before skin lesion

• 305 N (test 6)

31
The key element is the skin

• Skin resistance
• Palmar skin 2.5 Kg/mm
• Dorsal skin 1 Kg/ mm
• Skin opens between 260 N and 670 N
• Average 350 N

32
Thresholds of the ring opening
Laboratoire National dessaisRapport de
recherche B 012 897
33
Thresholds of the ring opening
34
Threshold of ring opening
Benign lesions
Severe lesions
Traction load
35
Reliability of Adlife device
140 tests
Adlife
36
US patent
European and international patent
37
Adlife
Continuity is preserved
38
RELIABLE and UNDETECTABLE

• The continuity is preserved
• No loss of the quantity or quality of gold
• There is no opening or hollow
• Preservation of the symbolic value
• Industrial gauging of the resistance.

39
(No Transcript)
40
Scientific publication An experimental study of
ring avulsion injuries and two preventive
devices Th. Dubert, A.Diop PhD, P.Voeltzel . J
Hand Surgery ,2000, 25B 5 418-421.Oral
presentations 4 Non scientific
publications News paper 18 Radio-Television 7
41
Government Recommandation
42
Prevention bill
43
Conclusion

• A well defined problem
• A technical solution simple and reliable
• Potentially high commercial benefits
• One cause of failure Prevention is not
  commercially efficient A legal obligation
  could not be obtained
