Runoff Lesson Objectives

1
RunoffLesson Objectives

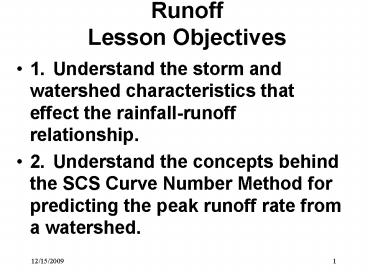

• 1. Understand the storm and watershed
  characteristics that effect the rainfall-runoff
  relationship.
• 2. Understand the concepts behind the SCS Curve
  Number Method for predicting the peak runoff rate
  from a watershed.

2
RunoffLesson Objectives

• 3. Be able to use the SCS Curve Number Method to
  predict peak runoff rate for a watershed.

3
The Hydrologic Cycle
Solar Energy
WIND MOVEMENT
CONDENSATION
EVAPOTRANSPIRATION
PRECIPITATION
EVAPORATION
RUNOFF
STREAMS
LAKES STREAMS
GROUND WATER
INFILTRATION
OCEAN
DEEP PERCOLATION
4
RUNOFF HYDROGRAPH
Peak Rate
Q
Flow Rate (Volume/Time)
Area under the curve represents total
runoff volume.
TIME SINCE START OF STORM
5
RAINFALL FACTORS AFFECTING RUNOFF

• STORM INTENSITY
• STORM DURATION
• DISTRIBUTION IN TIME
• DISTRIBUTION OVER THE WATERSHED

6
WATERSHED FACTORS AFFECTING RUNOFF

• SIZE
• SHAPE
• TOPOGRAPHY (Average land slope)
• GEOLOGY (Soil and bedrock)
• SURFACE COVER
• INITIAL SOIL MOISTURE

7
SCS RUNOFF METHOD
8
RUNOFF CURVE NUMBERSTable 5.3All good Stand
Contoured
9
TIME OF CONCENTRATION

• The time required for water to flow from the most
  remote point of the area to the outlet.
• A measure of how watershed shape and topography
  affect the peak rate of runoff
• Depends on stream flow velocity as well as
  distance from outlet

10
Affect of Watershed ShapeTwo Watersheds with
same Area, Slope and Soils
11
