Tampa FAASTeam

1

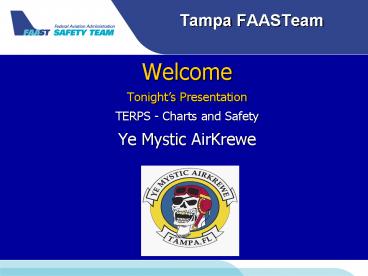

Tampa FAASTeam

• Welcome
• Tonights Presentation
• TERPS - Charts and Safety
• Ye Mystic AirKrewe

2
Tampa FAASTeam

• Welcome
• Tonights Presenters
• Dennis Whitley ATP CFII MEL SEL AGI AII
• Karen Dunbar Ph.D.

3
Tampa FAASTeam

• Can Everyone See Me Okay?
• Can Everyone Hear Me Okay?
• Can everyone See The Screen Okay?
• Does Everyone Know Where The Exits Are
• Does Everyone Know Where the Facilities are?

4
Tampa FAASTeam

• Please make sure that you have signed in so that
  we can validate your attendance tonight !!!

5
Tampa FAASTeam

• Please make sure that you have signed in so that
  we can validate your attendance tonight !!!
• Please register on www.FAASafety.gov

6
Tampa FAASTeam

• Please make sure that you have signed in so that
  we can validate your attendance tonight !!!
• Please register on www.FAASafety.gov
• Please sign up for events

7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
Tampa FAASTeam

• January Runway Safety
• February       AOPA, GPS From The Ground Up
• March           Airspace-Navigating The DC
  Airspace
• April             Tampa Tower and Tampa Airspace
• May              Flight Service, Weather and More
• June             Flight Safety, A Viewpoint From
  The Pros
• July              Light Sport Aircraft,
  RR
• August          Multi Vs. Single Engine Safety
• September Root Cause of Accidents- Human Factors
  of Flying
• October Runway Incursions Runway Safety
• November Simulation An Economical Way To Stay
  Current
• December      AOPA, What Went Wrong

12
Tampa FAASTeam

• Notes
• Peter O. Knight (KTPF) Runway Construction
• TFR-Orlando / Disney 3 NM / 3000 and Below
• October.. 20 thru 22 - NBAA OrlandoHigh Traffic
• November..5 thru 7 - AOPA Summit High traffic

13
Tampa FAASTeam

• Personal Safety Standards
• You Never Ever Want To See This

14

15
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures

16
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• How are they designed?

17
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• How are they designed?
• How To Use Them

18
Tampa FAASTeam

• Factors and Considerations
• Location
• Terrain
• Technical
• Proximity
• Conflict Resolution
• Performance

19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
Tampa FAASTeam

• TERPS
• Government vs. Jepp Charts

24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• When and Where Can I Let Down ?

28
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• MSA Minimum Sector Altitude

29
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• MSA Minimum Sector Altitude

30
(No Transcript)
31
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• MOCA - Minimum Obstruction Altitude
• Non-Mountainous 1000
• Mountainous 2000

32
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• MSA - Minimum Sector Altitude
• The lowest altitude which may be used under
  emergency conditions which will provide a minimum
  clearance of 300 m (1,000 feet) above all
  obstacles located in an area contained within a
  sector of a circle of 46 km (25 nautical miles)
  radius centered on a radio aid to navigation.

33
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• When, and Where, and How,
• Can I Let Down ?

34
Tampa FAASTeam

• Stabilized Approach
• Approach Briefing
• APP/RWY, Freq, Course, FAF Alt., DH/MDA Alt, Miss
  App.
• Verified
• Correct Approach
• ID
• RAIM
• WAAS
• Check List

35
Tampa FAASTeam

• Stabilized Approach
• Prior to touch down 1000 IFR
• Prior to touchdown 500 VMC
• Speed Vref /- 20 KTIS
• Descent rate No More that 1000 fpm
• Power Normal
• Glide Slope /- 1 Dot
• LOC-VOR-NDB-GPS 1 Dot or 5 Deg.

36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• When Can I Let Down ?
• Math 101

41
Tampa FAASTeam
42
Tampa FAASTeam

• FAF 2655
• MAP (ILS) 1078 (270 AGL)
• Alt to descend 1577
• Distance to descend 5.5 NM
• Speed 90 KTS (GS)
• 1.5 NM Per Min (90/60)
• Time to MAP 340 (5.5 NM / 1.5 NMPM)
• Feet Per NM Rate 438 FPM (1577 / 3.6Min)

43
Tampa FAASTeam

• FAF 2655
• MAP (LOC) 1560 (752 AGL)
• Alt to descend 1095
• Distance to descend 5.5 NM
• Speed 90 KTS (GS)
• 1.5 NM Per Min (90/60)
• Time to MAP 340 (5.5 NM / 1.5 MPM)
• Feet Per NM Rate 304 FPM (1095 / 3.6 Min)

44
Tampa FAASTeam

• ILS DH 270 AGL
• MAP Should be at
• (270 / 533 FPM) .4 minutes
• (.4 Min X 1.5 NMPM) .59 NM
• (MM_at_ 1300 TDZ 1000) 2300 or approx ½ mile
• LOC MAP 752 AGL
• MAP Should be at 2.11 NM
• (752 / 533 FPM) 1.4 minutes
• (1.4 Min X 1.5 NMPM) 2.11 NM

45
Tampa FAASTeam
46
(No Transcript)
47
Tampa FAASTeam

• TERPS
• Terminal Instrument Procedures
• STARs
• DPs
• RNAV and VOR

48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
Tampa FAASTeam

• WAAS and LPV

57
Tampa FAASTeam

• GPS - WAAS - LPV - RAIM
• Wide Area Augmentation System
• Localizer Performance Vertical Navigation
• Receiver Autonomous Integrity Monitoring

58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
Tampa FAASTeam

• NextGen
• Next Generation Avionics

62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
73
(No Transcript)
74
Tampa FAASTeam

• Resources and Research
• www.safecockpit.com
• Information

75
Next Meeting

• 2nd Tuesday of The Month
• Tuesday October 6th 2009
• MOSI in Tampa Fowler Ave.
• Museum Of Science and Industry
• Runway Incursions / Runway Safety

76
Thank You

• Thank you for coming this evening
• Thank you for your participation
• FLY SAFELY !!!
