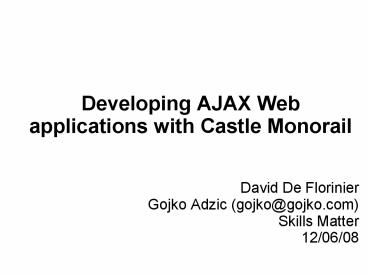

Developing AJAX Web applications with Castle Monorail

1
Developing AJAX Web applications with Castle
Monorail

• David De Florinier
• Gojko Adzic (gojko_at_gojko.com)?
• Skills Matter
• 12/06/08

2
Why Monorail for Ajax Apps?

• Plumbing handled by the framework
• Lots of helpers
• Integrated with Prototype and Scriptaculous
• Benefits from Castle Project integrations

3

• Write AJAX apps without much more code than if
  you were writing a
• non-ajax one!

4

• Options for AJAX with Monorail
• Preparing the application
• Proxying calls
• Monorail helpers and effects
• How it all comes together
• Some best practices and pitfalls

5
Option 1 Rails-style JS Generator

• Ajax actions send commands to the page
• Use NJS views instead of VM for Ajax Actions
• Mix and match Ajax and Non-Ajax calls
• Reuse partial templates

6
Option 2 Use Prototype and build parts of the
page with actions

• Ajax actions build only parts of the page
• Use AjaxHelper to coordinate calls
• Coordinate page updates from the browser side
• Cleaner code on the server, more focused
• Option to use JSONHelper to render results
• Option to use controller proxies

7
Option 3 Transparent JSON controller binding

• Actions exported to the web page
• Coordinate rendering on the client
• Clean code, all plumbing done by MR
• Use JSonReturnBinder and JSonBinder
• ... but not yet complete

8
Preparing the application for AJAX

• Add prototype.js library
• AjaxHelper.GetJavascriptFunctions()?
• ... will render ...
• src"/MonoRail/Files/AjaxScripts.rails"
• Use Ajax.Request and Ajax.Updater

9
Use AjaxHelper to create elements

• AjaxHelper.ButtonToRemote("Delete",
  "DeleteHero.rails", " Complete'heroActionCallba
  ck(request)' , with'\'iditem.Id\'' ")?
• ... will render ...
• Ajax.Request('DeleteHero.rails',
  onCompletefunction(request)
  heroActionCallback(request) ,
  asynchronoustrue, evalScriptstrue,
  parameters'id3') return false"/
• Methods provided for links, buttons, observers,
  autocompletion, forms

10
Use AjaxHelper to Build Forms

• AjaxHelper.BuildFormRemoteTag("/Heroes/CreateHero
  .rails", "update'heroList',formid'heroForm',
  Complete'document.pageHelper.heroes.listRefreshed
  ()'")?
• ... will render ...
• CreateHero.rails" enctype"multipart/form-data" on
  submit"new Ajax.Updater('heroList',
  '/Heroes/CreateHero.rails', onCompletefunction(r
  equest) document.pageHelper.heroes.listRefreshed
  () , asynchronoustrue, evalScriptstrue,
  parametersForm.serialize(this)) return
  false"

11
AjaxHelper parameters

• with
• form
• update
• success/failure
• evalScripts
• complete
• onSuccess/onFailure
• before/after/condition

12
Preparing controllers for AJAX

• Implemented as a method on the controller
• Tightly focused
• Promotes reusability
• Reduces risk due to change
• Simplifies unit tests

13
Generating controller proxies

• Decorate methods with AjaxAction attribute
• AjaxAction
• public void DeleteHero(int id)
• Use AjaxHelper.GenerateJSProxy
• AjaxHelper.GenerateJSProxy("controllerProxy")?
• .. then the following is rendered
• var controllerProxy
• deleteHero function(id, callback)

• var rnew Ajax.Request('/Heroes/De
  leteHero.rails', method 'get', asynchronous
  !!callback, onComplete callback, parameters
  '_\x26id'id'')
• if(!callback) return
  r.transport.responseText

14
Synchronous / asynchronous calls

• Proxies allow both synchronous and asynchronous
  calls to be made
• Supply a callback function to make asynchronous
  call
• function heroActionCallback(result)
• var response result.responseText.evalJSON()

• alert(response.message)
• function deleteHero(id)
• controllerProxy.deleteHero( id,
  heroActionCallback)

15
Synchronous / asynchronous calls

• Use synchronous calls ONLY if you don't want
  anything else to happen
• Prefer async calls for better performance
• Async replies can come in different order
• Number of simultaneous calls to the same domain
  is very limited

16
Monorail layout strategies

• Monorail has a concept of layouts
• AJAX actions would not have a layout
• ... but index method would
• There is more than one way to achieve this
• Two methods illustrated
• NJS templates don't use layouts (JS Generation)?

17
AJAX layout strategy 1

• No layout on the class
• Index method has a layout
• Layout("default")
• public void Index()?
• Simple, quick, no additional code
• ... but ties the action to blank layout for all
  calls

18
AJAX layout strategy 2

• Use filter to kill layout on AJAX calls
• public class AjaxLayoutFilter IFilter
• public bool Perform(ExecuteEnum exec,
  IRailsEngineContext context, Controller
  controller)
• if(IsAjaxRequest(context))
  controller.CancelLayout()
• return true
• //from http//blechie.com/
• public static bool IsAjaxRequest(IRailsEng
  ineContext context)
• string requestedWith
  context.Request.Headers"X-Requested-With"
• if (string.IsNullOrEmpty(requestedWith
  )) return false
• return requestedWith.Equals("XMLHttpRe
  quest",StringComparison.InvariantCultureIgnoreCase
  )

19
Script.aculo.us integration

• A JavaScript framework which is for UI sugar.
• Install scripts using ScriptaculousHelper.Instal
  lScripts()?
• Add effects using the ScriptaculousHelper
  VisualEffect method
• ScriptaculousHelper.VisualEffect('ToggleBlind',
  'colOne')?
• ScriptaculousHelper.VisualEffect('ToggleAppear',
  'colThree')?
• ScriptaculousHelper.VisualEffect('ToggleBlind',
  'colTwo')?

20
Script.aculo.us Drag Drop

• Make elements draggable
• new Draggable(element, reverttrue)
• Make elements Drop zones
• Droppables.add( element, hoverclass
  'dropHover', accept 'dropelementclassname',
  onDrop dropPower )
• Drop delegate accepts both elements as parameters
• function dropPower(draggable,droparea)

21
Stuff to remember

• JSON binding will probably be complete soon
• Use context for generic shared templates
• Use AjaxHelper for Prototype integration
• Use ScriptaculousHelper for effects
• You can use Prototype and Scriptaculous in JS
  code directly
• Use async calls for better performance

22
... a few links

• http//www.castleproject.org/MonoRail
• http//hammett.castleproject.org
• http//www.ayende.com/blog
• http//www.prototypejs.org
• http//script.aculo.us

23
What next?

• Beers straight away
• ALT.NET meeting next week
• TDD with Databases in two weeks
• ALT.NET talk at Skills Matter on July 31st
