The PLUTO event generator

1

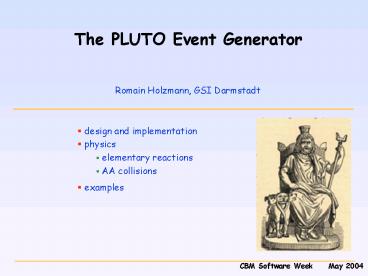

The PLUTO Event Generator
Romain Holzmann, GSI Darmstadt

• design and implementation
• physics
• elementary reactions
• AA collisions
• examples

CBM Software Week May 2004
2
What is PLUTO?

• In simple terms
• PLUTO is a ROOT-based framework for implementing
• customized event generators
• object-oriented (C), modular, flexible,
  extensible
• fast simulations (kinematics, decays)
• filters (e.g. acceptances, efficiencies)
• no transport through media, no geometry, no
  field!
• PLUTO designed by Marios Kagarlis (GSI 2000/2001)
• Documentation at www-hades.gsi.de/computing/pluto/
  html/PlutoIndex.html

3
The PLUTO web page
User manual
Class documentation
Tar ball
To be updated soon!
4
Basic design of PLUTO
TClonesArray of PParticle

• Main classes
• PParticle
• PChannel
• PReaction
• PDecayManager
• PData
• PUtils

TTree
HADES specific!
5
Physics implemented in PChannel

• kinematics (E and P conservation)
• build-in particle table (extendable)
• build-in and/or user-defined
• angular distributions
• resonances with G G(M)
• form factors in Dalitz decays
• beam momentum spread

6
Particle decay engine
Use internal PLUTO engine or Pythia engine
(needs libPythia6.so)
7
Output formats

• PLUTO offers 2 output formats
• Root file (TFile/TTree)
• Ascii file

8
Modes of operation

• 1) Simulate a specific reaction, e.g. 1.1 GeV
  p-p?n?
•
  1 ? p0ee-
•
  2
  4
• (? define a PReaction made of 4 PChannels)
  3 ? ??
• 2) Simulate a reaction with all decays open, e.g.
  25 AGeV AuAu
• (? define a PReaction made of thermal sources
  T, sy, flow)

9
Example 1 p-p ? n? ? p0 ee-
PParticle pim new PParticle("pi-",1.1)
// define projectile and target PParticle p
new PParticle("p") PParticle s new
PParticle(pimp) PParticle omeg new
PParticle("w") PParticle n new
PParticle("n") PParticle pl1
s,n,omeg PChannel ch1 new PChannel(pl1)
// define 1st reaction step PParticle
pi0 new PParticle("pi0") PParticle epem
new PParticle("dilepton") PParticle pl2
omeg, pi0, epem PChannel ch2 new
PChannel(pl2) // define 2nd reaction
step PParticle gam1 new PParticle("g")
PParticle gam2 new PParticle("g") PParticle
pl3 pi0, gam1, gam2 PChannel ch3 new
PChannel(pl3) // define 3rd reaction
step PParticle ep new PParticle("e")
PParticle em new PParticle("e-") PParticle
pl4 epem, ep, em PChannel ch4 new
PChannel(pl4) // define 4th reaction
step PChannel ch ch1, ch2, ch3, ch4
PReaction r new PReaction(ch, "w-Dalitz", 4,
1, 0, 0) // define reaction r-gtPrint()
r-gtloop(10000) //
run simulation
10
Example 2 Pions from 25 AGeV AuAu
Float_t Ebeam 25 // beam
energy Float_t T 0.12 //
temperature Float_t sigma 1. //
rapidity distribution Float_t blast 0.3
// blast Int_t Mpi 400
// pion multiplicity PFireball pip new
PFireball("pi",Ebeam, T, 0, 1, blast,0,0,0,0)
// pi source pip-gtsetSigma(sigma)
PFireball pim new PFireball("pi",Ebeam, T, 0,
1, blast,0,0,0,0) // pi- source
pim-gtsetSigma(sigma) PFireball pi0 new
PFireball("pi",Ebeam, T, 0, 1, blast,0,0,0,0)
// pi0 source pi0-gtsetSigma(sigma)
PChannel ch1 pip-gtmakeChannel(800,Mpi)
PChannel ch2 pim-gtmakeChannel(800,Mpi)
PChannel ch3 pi0-gtmakeChannel(800,Mpi)
PChannel ch ch1, ch2, ch3 PReaction r
new PReaction(ch, "AuAu25AgeV", 3, 1, 0, 0)
// define reaction r-gtsetDecayAll(10.)
// decay all particles with lifetime lt10 ns
r-gtPrint() r-gtloop(10000)
// run simulation
11
PLUTO for CBM VMC

• Interfaced to CBM simulation
• via Root files (existing)
• internal (to be implemeted)
