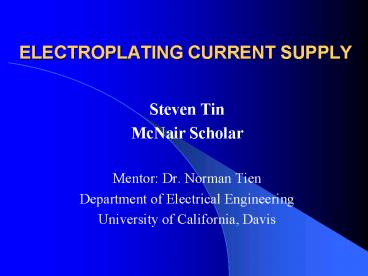

ELECTROPLATING CURRENT SUPPLY

1
ELECTROPLATING CURRENT SUPPLY

• Steven Tin
• McNair Scholar
• Mentor Dr. Norman Tien
• Department of Electrical Engineering
• University of California, Davis

2
INTRODUCTION

• Electroplating plays an important role in
  microfabrication of integrated circuits (IC) and
  microelectromechanical systems (MEMS).
• The requirement for the electroplating
• Good uniformity
• Low Stress

3

• Power supply is of great importance in the
  electroplating process.
• DC power supply is widely used in academic
  research laboratories.
• Advantages of DC power supply
• Inexpensive
• Easy to use
• Disadvantages of DC power supply
• Lack of uniformity
• Uncontrollable stress

4

• DC pulse is preferred to DC power supply in
  advanced microfabrication.
• Advantages
• Uniformity and stress is controllable.
• Disadvantages
• Current DC pulse power supplies are usually
  designed for industrial applications.
• Expensive. The prices ranges from 5,000 to
  20,000.

5

• Therefore, a cost effective DC pulse power supply
  is desirable for academic research on
  microfabrication.
• Requirements
• To provide constant DC current and DC pulse
  current
• To provide tunable frequency and duty cycle
• Low cost
• Easy to use

6
CURRENT SOURCE CIRCUIT

• The circuit can be divided into three parts
• Square wave with tunable frequency and duty cycle
• To adjust the magnitude of the output current
• The circuit that provides constant current

7
CIRCUIT FOR SQUARE WAVE

• This circuit outputs a triangle wave whose
  voltage varies from Vcc/3 to 2Vcc/3..
• The frequency of the wave varies from 7HZ to
  3KHZ by changing the value of R2.

8
TRIANGLE WAVE OUTPUT
9
CIRCUIT FOR SQUARE WAVE

• By changing the value of R4, the voltage at node
  7 varies from Vcc/3 to 2Vcc/3
• The duty cycle of the wave can change from 0 to
  100

10
DUTY CYCLE
11
SQUARE WAVE OUTPUT
12
VOLTAGE MAGNITUDE

• A voltage buffer is added to separate the
  circuits
• Two variable resistors are used to change the
  output voltage of this circuit
• Negative voltage is applied to opamp

13
NEGATIVE VOLTAGE
14
CONSTANT CURRENT CIRCUIT

• The circuit maintains a constant current through
  RL. The current I Vin / Rsense.
• Ic Ie, the current flows through Rsense is about
  equal to the current through Rload

Negative Voltage
15
THE OVERALL CIRCUIT
16
CURRENT SOURCE
17
FUTURE RESEARCH

• We will use the current source to do
  electroplating
• Current mode and Magnitude
• Frequency and Duty cycle
• Temperature

18
ACKNOWLEDGEMENTS

• Dr. Norman Tien
• Dr. Ellen Robert
• Andy Liu
• Ray Shiraishi
• McNair staff
• Dr. Tiens research group

19
