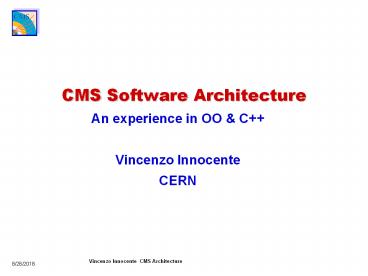

CMS Software Architecture

1
CMS Software Architecture

• An experience in OO C
• Vincenzo Innocente
• CERN

2
CMS (offline) Software
Quasi-online Reconstruction
Environmental data
Slow Control
Online Monitoring
store
Request part of event
Store rec-Obj
Request part of event
Event Filter Objectivity Formatter
Request part of event
store
Persistent Object Store Manager Object Database
Management System
Store rec-Obj and calibrations
store
Request part of event
Data Quality Calibrations Group Analysis
Simulation G3 and or G4
User Analysis on demand
3
Requirements (from the CTP, dec.96)

• Multiple Environments
• Various software modules must be able to run in a
  variety of environments from level 3 triggering,
  to individual analysis
• Migration between environments
• Physics modules should move easily from one
  environment to another (from individual analysis
  to level 3 triggering)
• Migration to new technologies
• Should not affect physics software module

4
Requirements (from the CTP)

• Dispersed code development
• The software will be developed by
  organizationally and geographically dispersed
  groups of part-time non-professional programmers
• Flexibility
• Not all software requirements will be fully known
  in advance
• Not only performance
• Also modularity, flexibility, maintainability,
  quality assurance and documentation.

5
Technologies

• Do not always jump on next year buzzword
• Do not limit to technologies standardized in
  times when graduate students were not born yet
• There is no Silver Bullet
• Any single technical issue can be solved with few
  thousand lines of code by any of us.
• This is not the point
• What is needed is a coherent Software
  Architecture for an experiment which will last
  longer than a decade

6
C

• C is a very advanced language which supports
• C style coding (for algorithms it is ok)
• but it is the source of all evils (as memory
  leaks)
• Object Oriented programming
• Data Hiding
• Encapsulation
• Polymorphism
• Multiple and Virtual inheritance
• Generic Programming
• Templates
• Parametric Polymorphism
• All this makes it complex but powerful!

7
Use Cases

• Simulated Hits Formatting
• Digitization of Piled-up Events
• Test-Beam DAQ Analysis
• L1 Trigger Simulation
• Track Reconstruction
• Calorimeter Reconstruction
• Global Reconstruction
• Physics Analysis

8
Track Reconstruction
Local measurements belongs to detector
element and are affected by the detector element
state (calibrations, alignments)
Pattern recognition navigates in the detector to
associate local measurements into a track
9
Global Reconstruction

• Global reconstruction is performed in an absolute
  reference frame
• 4-vector-like objects are built out of
  trajectories and localized energy deposits
• A wide range of particle identification, jet,
  vertex, etc algorithms can be applied to produce
  others 4-vector-like objects
• Access to the original detector data maybe
  required

10
Reconstruction Scenario

• Reproduce Detector Status at the moment of the
  interaction
• front-end electronics signals (digis)
• calibrations
• alignments
• Perform local reconstruction as a continuation of
  the front-end data reduction until objects
  detachable from the detectors are obtained
• Use these objects to perform global
  reconstruction and physics analysis of the Event
• Store Retrieve results of computing intensive
  processes

11
Reconstruction Sources
12
Components

• Reconstruction Algorithms
• Event Objects
• Physics Analysis modules
• Other services (detector objects, environmental
  data, parameters, etc)
• Legacy not-OO data (GEANT3)
• The instances of these components require to be
  properly orchestrated to produce the results as
  specified by the user

13
CARFCMS Analysis Reconstruction Framework
Application Framework
Physics modules
Reconstruction Algorithms
Event Filter
Data Monitoring
Physics Analysis
Calibration Objects
Event Objects
Visualization Objects
Utility Toolkit
14
Architecture structure

• An application framework CARF (CMS Analysis
  Reconstruction Framework),
• customisable for each of the computing
  environments
• Physics software modules
• with clearly defined interfaces that can be
  plugged into the framework
• A service and utility Toolkit
• that can be used by any of the physics modules
• Nothing terribly new, but...
• Traditional architecture can not cope with
• LHC-collaboration complexity

15
Problems with traditional architectures

• Traditional Framework schedules a-priori the
  sequence of operations required to bring a given
  task to completion
• Major management problems are produced by changes
  in the dependencies among the various operations
• Example 1
• Reconstruction of track type T1 requires only
  tracker hits
• Reconstruction of track type T2 use calorimetric
  clusters as seeds
• If a user switches from T1 to T2 the framework
  should determine that calorimeter reconstruction
  should run first now
• Example2
• The global initialization sequence should be
  changed because, for one detector, some condition
  changes often than foreseen

16
Framework Basic Dynamics

• Avoid monolithic structure
• Collection of loosely coupled mechanisms which
  implements
• in abstract the tasks of a HEP reconstruction and
  analysis software.
• Implicit Invocation Architecture
• No central ordering of actions, no explicit
  control of data flow only implicit dependencies
• External dependencies managed through an Event
  Driven Notification to subscribers
• Internal dependencies through an Action on Demand
  mechanism

17
Event Driven Notification
Observers are instantiated by static factories
residing in shared libraries. These are loaded
on demand during application configuration
Dispatcher
Detector elements observe physics
events Factories observe user requests
Obs1
Obs2
Obs3
Obs4
Observers clients or providers
18
Action on Demand
Compare the results of two different track
reconstruction algorithms
Rec Hits
Detector Element
Rec Hits
Rec Hits
Hits
Event
Rec T1
T1
CaloCl
Rec T2
Analysis
Rec CaloCl
T2
19
HEP Data

• Environmental data
• Detector and Accelerator status
• Calibrations, Alignments
• Event-Collection Meta-Data
• (luminosity, selection criteria, )
• Event Data, User Data

20
Do I need a DBMS? (a self-assessment)

• Do I encode meta-data (run number, version id) in
  file names?
• How many files and logbooks I should consult to
  determine the luminosity corresponding to a
  histogram?
• How easily I can determine if two events have
  been reconstructed with the same version of a
  program and using the same calibrations?
• How many lines of code I should write and which
  fraction of data I should read to select all
  events with two ?s with p?gt 11.5 GeV and
  ?lt2.7?
• The same at generator level?
• If the answers scare you, you need a DBMS!

21
A major challenge for LHC The scale

• Event output rate 100
  events/sec
•
  (109 events/year)
• Data written to tape 100 M
  Bytes/sec (1PB/yr)
• Processing capacity gt 10
  TIPS ( 1013 instr./s)
• Typical networks
  Hundreds of Mbits/second
• Lifetime of experiment
  2-3 decades
• Users 1700
  physicists
• Software developers
  100
• 100 Petabytes Total for the LHC

22
Can CMS do without a DBMS?

• An experiment lasting 20 years can not rely just
  on ASCII files and file systems for its
  production bookkeeping, condition database,
  etc.
• Even today at LEP, the management of all real and
  simulated data-sets (from raw-data to n-tuples)
  is a major enterprise.
• A DBMS is the modern answer to such a problem
  and, given the choice of OO technology for the
  CMS software, an ODBMS (or a DBMS with an OO
  interface) is the natural solution.

23
A BLOB Model
Event
Event
DataBase Objects
RecEvent
RawEvent
Blob a sequence of bytes. Decoding it is a
user responsibility.
Why should Blobs not be stored in the DBMS?
24
Raw Event
RawData are identified by the corresponding
ReadOut. RawData belonging to different detector
s are clustered into different containers. The
granularity will be adjusted to optimize I/O
performances. An index at RawEvent level is
used to avoid the access to all containers in
search for a given RawData. A range index at
RawData level could be used for fast
random access in complex detectors.
RawEvent
ReadOut
ReadOut
...
RawData
RawData
Index implemented as an ordered vector of pairs
25
A major challenge for LHC The scale

• Event output rate 100
  events/sec
•
  (109 events/year)
• Data written to tape 100 M
  Bytes/sec (1PB/yr)
• Processing capacity gt 10
  TIPS ( 1013 instr./s)
• Typical networks
  Hundreds of Mbits/second
• Lifetime of experiment
  2-3 decades
• Users 1700
  physicists
• Software developers
  100
• 100 Petabytes Total for the LHC

26
Can CMS do without a DBMS?

• An experiment lasting 20 years can not rely just
  on ASCII files and file systems for its
  production bookkeeping, condition database,
  etc.
• Even today at LEP, the management of all real and
  simulated data-sets (from raw-data to n-tuples)
  is a major enterprise.
• A DBMS is the modern answer to such a problem
  and, given the choice of OO technology for the
  CMS software, an ODBMS (or a DBMS with an OO
  interface) is the natural solution.

27
Physical clustering
28
Can every object have its own persistency?

• Data size
• Data complexity
• Self-Description which granularity?
• Meta-Data vs Data
• logical vs physical organization
• Flexibility vs Efficiency
• Interface with standard tools (like GUIs)
• Fast prototyping vs formal/controlled design
• User knowledge and training

29
Is an ODBMS an overkill for Histograms?

• Maybe, if histograms are your sole I/O.
• (I use my sun ultra-5 to read mails through pine
  even if a line-mode terminal would be more than
  adequate)
• N-tuples are user event-data and, for any
  serious use, require a level of management and
  book-keeping similar to the experiment-wide
  event data.
• What counts is the efficiency and reliability of
  the analysis
• The most sophisticated histogramming package is
  useless if you are unable to determine the
  luminosity corresponding to a given histogram!

30
Objectivity Features CMS (really) uses

• Persistent objects are real C (and Java)
  objects
• I/O cache (memory) management
• no explicit read and write
• no need to delete previous event
• Smart-pointers (automatic id to pointer
  conversion)
• Efficient containers by value (VArray)
• Full direct navigation in the complete federation
• Flexible object physical-clustering
• Object Naming
• as top level entry point (at collection level)
• as rapid prototyping tool

31
Additional ODBMS (Objy) Advantages

• Novel access methods
• A collection of electrons with no reference to
  events
• Direct reference from event-objects to condition
  database
• Direct reference to event-data from user-data
• Flexible run-time clustering of
  heterogeneous-type objects
• cluster together all tracks or all objects
  belonging to the same event
• Real DB management of reconstructed objects
• add or modify in place and on demand parts of an
  event

32
CMS Experience (Pro)

• Designing and implementing persistent classes not
  harder than doing it for native C classes.
• Easy and transparent distinction between logical
  associations and physical clustering.
• Fully transparent I/O with performances
  essentially limited by the disk speed (random
  access).
• File size overhead (3 for realistic CMS object
  sizes) not larger than for other products such
  as ZEBRA or BOS.
• Objectivity/DB (compared to other products we are
  used to) is robust, stable and well documented.
  It provides also many additional useful
  features.
• All our tests show that Objectivity/DB can
  satisfy CMS requirements in terms of performance,
  scalability and flexibility

33
CMS Experience (Cons)

• Objectivity (and the compilers it supports) does
  not implement the latest C features
  (changing fast convergence toward ANSI standard)

• There are additional configuration elements to
  care about ddl files, schema-definition
  databases, database catalogs
• organized software development rapid prototyping
  is not impossible, its integration in a product
  should be done with care
• Performance degradations often wait you around
  the corner
• monitoring of running applications is essential,
  off-the-shell solutions often exist (BaBar,
  Compass)
• Objectivity/DB is a bare product
• integration into a framework is our
  responsibility
• Objectivity is slow to apply OUR changes to their
  product
• Is this a real cons? Do you really want a product
  whose kernel is changed at each user request?

34
CMS Experience (missing features)

• Scalability 64K files are not enough (Objy is
  working on it)
• containers are the natural Objectivity units,
  still things for which the OS (and files) is
  preferred
• bulk data transfer (to mass-storage, among
  sites)
• access control, space allocation to users, etc.
• Efficient and secure AMS (ok in 5.2!!!)
• with MSS and WAN support
• Activator de-activator (part of ODMG standard)
• to implement transient parts of persistent
  objects
• Support for private user classes and user data
  (w.r.t. experiment-wide ones)
• many custom solution based on multi-federation
• Active schema
• User Application Layer
• like a rapid prototyping environment

35
ODBMS Summary

• A DBMS is required to manage the large data set
  of CMS
• (including user data)
• An ODBMS is the natural choice if OO is used in
  all SW
• There is no reason NOT to store event-data in the
  DB
• as a Blob or as a real object system
• Once an ODBMS will be deployed to manage the
  experiment data, it will be very natural to use
  it to manage any kind of data related to detector
  studies and physics analysis
• Objectivity/DB is a robust and stable kernel
  ideal to be used as the base to build a custom
  storage framework

36
Conclusions

• Object Oriented technologies have proven to be
  required to develop flexible software
  architectures
• C is the natural choice for a large project
• today JAVA can be a realistic alternative
• OO and C as been easily adopted by all detector
  developers
• (see C.Grandi, T.Todorov A.Vitelli CHEP talks)
• ODBMS is a robust technology ideal for building a
  large coherent object store
• CMS MC production 2000 will exercise on a real
  scale all this

37
Object Model
38
Reconstructed Objects
Reconstructed Objects produced by a given
algorithm are managed by a Reconstructor.
RecEvent
S-Track Reconstructor
A Reconstructed Object (Track) is split into
several independent persistent objects to allow
their clustering according to their access
requirements (physics analysis, reconstruction,
detailed detector studies, etc.). The top level
object acts as a proxy. Intermediate
reconstructed objects (Hits) are transient and
are cashed by value into the final objects .
Track SecInfo
Track Constituents
S Track
...
S Track
