MODELLING OF WIND FARM CONTROLLERS

1

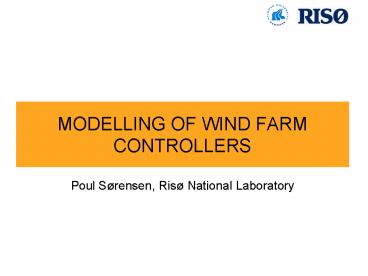

MODELLING OF WIND FARM CONTROLLERS

• Poul Sørensen, Risø National Laboratory

2
Simulation model - wind farm power control
Wind turbine controller
Wind farm controller
Operator
Wind turbine controller
Wind turbine controller
?
Speed optimum
Ramp rate settings
Speed control
Pbalance P?
Power reference setting
Dispatch control
Power control
Droop settings Deadband settings
PCC
3
Isolation of wind turbines in local grid
4
Active stall wind farm motor load (case B)
5
Conclusions

• Wind farms with power control can support
  secondary and primary control in grid frequency
  and voltage.
• Dynamic simulation models must contain
• wind turbine main mechanical and electrical
  components
• wind turibne (active / reactive) power control
• wind farm power control (secondary and primary)
• Simulation models for controlled wind farms are
  useful to study wind farm power system control
  capability with different grid and wind farm
  scenarios, particularly island operation and
  black start capability.
