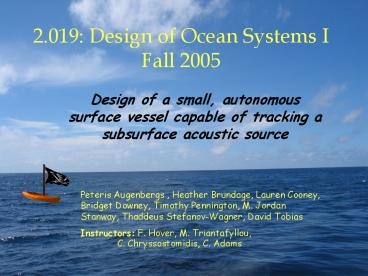

2.019 Design of Ocean Systems I Fall 2005

• Design of a small, autonomous surface vessel
  capable of tracking a subsurface acoustic source

2
Challenge Statement

• Your goal is to create a new capability in
  ocean observation, by constructing a small,
  autonomous surface vessel system capable of
  tracking a subsurface acoustic source
• PROJECT TECHNICAL GOALS (descending priority)
• Demonstrate a small, autonomous surface vessel
  homing to a
• subsurface acoustic beacon.
• Demonstrate this in Sea State 3 conditions.
• Demonstrate navigation in a global frame, e.g.,
  GPS, compass.
• Demonstrate waypoint autopilot capability.

3
A real-world problem
4
Prioritized Objectives

• Develop a stable surface vessel
• Create an acoustic tracking system
• Maintain remote control of vessel
• Develop control system to allow for autonomous
  operation
• Create a user-friendly interface
• Develop waypoint tracking

5
(No Transcript)
6
Trolling Motor
7
Azimuth Motor
8
Transducer
9
Hydrophones
10
GPS, Compass, Amp, Electronics
11
System Requirements

• Platform
• Controls
• Acoustic Sensing

12
System Requirements

• Platform

Small, surface vesselcapable of operating in
sea state 3
Sea State 3 Mean Wave Height is 0.5 - 1.25m,
Modal Wave Period is 5-14.8 seconds
13
Hull

• Wilderness Systems Pungo 120, 3.7 m kayak
• Full length keel line
• Waterproof compartment in stern

14
Hull Experiments

• Inclining test and initial condition response

We used a digital level for inclining
tests Initial condition response tests were
recorded with a high data rate Analog Devices
ADXL203 two axis accelerometer
15
Results of Experiments
At ballast weight of 100 kg, metacentric height
is 26 cm
16
These results show an optimal performance point
at 100 kg payload.
Damped Natural Frequency 1.2 Hz Damping Ratio
0.21
17
Hull Wave Response

• Wave response at target weight

This gives a significant roll of 9 in average
sea state 3 conditions 0.88m significant wave
height and 7.5 second period
18
Propulsion

• Minn-Kota Riptide trolling motor
• Seawater rated, has sacrificial anode
• 80 pounds bollard thrust
• Cable/pulley system to steer

19
Power Systems

• All power provided by sealed lead acid batteries
• 2 80Ah batteries provide propulsion and amplifier
  power
• 2 18Ah batteries provide acoustic electronics
  power
• Batteries connect with keyed Anderson PowerPole
  connectors

20
Safety

• 2 emergency stop buttons remove power from
  propulsion systems
• Warning light indicates propulsion system power
• All circuits are appropriately fused

21
Integration

• Removable deck holds batteries, main and motor
  controller TT8 enclosures
• Emergency stop, main power distribution and bilge
  pump are hard wired into kayak
• All electrical connectors are keyed and labeled

22
Packaging

• Electronics are in waterproof enclosures
• All connections made with environmentally sealed
  Switchcraft connectors
• All pass-throughs made with waterproof cord grips.

23
Azimuth Motor

• 12v Servo motor
• Attached encoder
• Watertight housing
• Self-homing via hall sensor
• Proportional control with 360 rpm max slew rate
• Power consumption
• 2 A _at_ max slew

24
Azimuth Motor Controller
25
Directional Stability

• Bare hull is unstable (confirmed in first sea
  trials)
• Hydrodynamic center near center of mass
• Destabilizing spring term
• Addition of foil-shaped struts at stern drives
  hydrodynamic center further aft
• Provides stabilizing spring term

26
Directional Stability

• Hydrophone struts have linear lift profile for
  AOA
• Hydrodynamic center at 3.02m aft of bow
• 1.02m aft of center of mass

CL
Source JavaFoil
27
Trolling motor placement

• Forward mounted propulsor gives increased control
  stability.
• Places motor and associated electric noise and
  magnetic fields far away from compass and
  computers.

28
Resistance (_at_ 1.25 m/s)

• Cylinder struts
• 65.5 N
• Streamlined struts
• 35.3 N
• Thrust available _at_ full throttle
• 242.3 N
• Effective speed limit
• 2.4 m/s (4.6 kts)

29
Resistance in Waves
Added resistance due to wave action found to be
negligible, even in sea state 3.
Source "Experimental Results of Non-linear
Seakeeping Motions, Wetted Surface and Sectional
Force Tests on a Ship with Large Bow Flare," by
S.B. Cohen (1995, University of Michigan
Department of Naval Architecture and Marine
Engineering)
30
System Requirements

• Control System

Autonomous operation in acoustic tracking and
waypoint navigation mode
31
Sensors

• Garmin eTrex Legend handheld GPS
• PNI Corp. TCM2 Compass
• Wireless

32
Control System Layout
33
(No Transcript)
34
System Requirements

• Acoustic Sensing

Demonstrate homing to a subsurface acoustic
beacon.
35
Acoustic Layout and Interaction
Hi location of hydrophone i, i 1, 2, 3 T
location of transducer
36
Acoustic Components

• International Transducer Corp. ITC-1001 Spherical
  Transducer
• Omnidirectional transmitting/receiving
• Sonardyne Type 7656 Transponder
• Interrogation frequency 20,492 Hz
• Reply frequency 29,762 Hz
• Sensor Technology Limited SQ03 Hydrophone

37
Range and Bearing
Transponder
Bearing to source
38
Acoustic Navigation

• Constrained by challenge statement
• Short baseline acoustic navigation
• Transponder at source
• Determine position of source relative to ASV
• Affords portability of system to different
  operating environments

39
Acoustic System
40
Signal Modulation

• Product of two sinusoids
• Low-pass filter to remove HF component
• Resultant output is 500 Hz, which TT8 can sample
  at 5X the Nyquist rate

41
New Hardware Developments

• Expanded modulation setup to include hydrophones,
  programmable amplifiers, bandpass filters
• Constructed 3-channel setup on breadboard for
  testing purposes
• Printed circuit boards for packaging after
  circuit design was verified

42
Discoveries/Fixes

• MAX038 is unstable as a carrier sine, therefore
  unfit for modulation XR2206 from pinger works
  better
• Breadboards are less than ideal, especially if
  you have to move them around a lot
• PCBs are hard to get right the first time

43
Working hardware

• The Stack consists of 4 boards 3 hydrophone
  sense and modulation, and one for ping and
  carrier sine generation
• Stack and TT8 fit in 4x4x8 otter box with
  splash-proof connections to hydrophones,
  amplifier, data and power
• Modulation output is stable to 200 Hz

44
Recorded Signals
45
Autocorrelation
46
Autocorrelation
47
Autocorrelation
48
Autocorrelation
49
(No Transcript)
50
Acoustic Processing Program
51
Accomplishments Constructed a Short Base Line
Acoustic Tracking System from scratch
Experimented with and designed circuits to
amplify and control a hydrophone array
Built a circuit to drive a transducer, simulating
the transponder's signal, from a TT8
52
Learned Auto-Correlation and other Signal
Processing Techniques
Characterized the Roll Response of our hull to
Initial Conditions
Conducted an Incline Test
53
Designed and Constructed Azimuth Motor Controller
and Watertight Container
Learned to process GPS data with a TT8 and C
programs
Tested the Transponder Hardware and determined
its response is in the noise and must be filtered
54
Accomplishments
Testing wireless control and autonomous steering
Testing acoustic system hardware
55
Next Steps

• Finish integrating acoustics hardware with
  hull/power plant
• Accurately calculate bearing from real acoustic
  data
• Integrate acoustic data output with control
  system
• AARGH!!! FOLLOW THAT SOUND!!!

56
Thank you!
Mechanical Engineering Department Center for
Ocean Engineering MIT Sea Grant MIT Towing
Tank Edgerton Center Student Shop Pappalardo
Machine Shop MIT Sailing Pavilion MIT 13SEAS

• Dr. Franz Hover
• Professor Michael Triantafyllou
• Professor Chryssostomos Chryssostomidis
• Christiaan Adams
• Dr. Ethem Sozer
• Professor Arthur Baggeroer
• Professor Steven Leeb
• Matt Greytak

57
