ObjectOriented, Intelligent and ObjectRelational Database Models

1

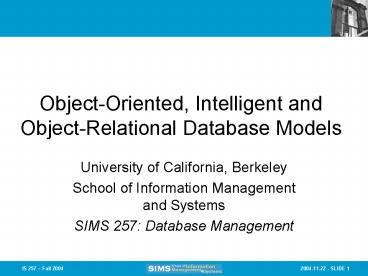

Object-Oriented, Intelligent and
Object-Relational Database Models

• University of California, Berkeley
• School of Information Management and Systems
• SIMS 257 Database Management

2
Lecture Outline

• Review
• Applications for Data Warehouses
• Data Mining
• Thanks again to lecture notes from Joachim Hammer
  of the University of Florida
• Object Oriented DBMS
• Inverted File and Flat File DBMS
• Object-Relational DBMS (revisited)
• Intelligent DBMS

3
Lecture Outline

• Review
• Applications for Data Warehouses
• Data Mining
• Thanks again to lecture notes from Joachim Hammer
  of the University of Florida
• Object Oriented DBMS
• Inverted File and Flat File DBMS
• Object-Relational DBMS (revisited)
• Intelligent DBMS

4
What is Decision Support?

• Technology that will help managers and planners
  make decisions regarding the organization and its
  operations based on data in the Data Warehouse.
• What was the last two years of sales volume for
  each product by state and city?
• What effects will a 5 price discount have on our
  future income for product X?
• Increasing common term is KDD
• Knowledge Discovery in Databases

5
Conventional Query Tools

• Ad-hoc queries and reports using conventional
  database tools
• E.g. Access queries.
• Typical database designs include fixed sets of
  reports and queries to support them
• The end-user is often not given the ability to do
  ad-hoc queries

6
OLAP

• Online Line Analytical Processing
• Intended to provide multidimensional views of the
  data
• I.e., the Data Cube
• The PivotTables in MS Excel are examples of OLAP
  tools

7
Data Cube
8
Operations on Data Cubes

• Slicing the cube
• Extracts a 2d table from the multidimensional
  data cube
• Example
• Drill-Down
• Analyzing a given set of data at a finer level of
  detail

9
Star Schema

• Typical design for the derived layer of a Data
  Warehouse or Mart for Decision Support
• Particularly suited to ad-hoc queries
• Dimensional data separate from fact or event data
• Fact tables contain factual or quantitative data
  about the business
• Dimension tables hold data about the subjects of
  the business
• Typically there is one Fact table with multiple
  dimension tables

10
Star Schema for multidimensional data
11
Data Mining

• Data mining is knowledge discovery rather than
  question answering
• May have no pre-formulated questions
• Derived from
• Traditional Statistics
• Artificial intelligence
• Computer graphics (visualization)

12
Goals of Data Mining

• Explanatory
• Explain some observed event or situation
• Why have the sales of SUVs increased in
  California but not in Oregon?
• Confirmatory
• To confirm a hypothesis
• Whether 2-income families are more likely to buy
  family medical coverage
• Exploratory
• To analyze data for new or unexpected
  relationships
• What spending patterns seem to indicate credit
  card fraud?

13
Data Mining Applications

• Profiling Populations
• Analysis of business trends
• Target marketing
• Usage Analysis
• Campaign effectiveness
• Product affinity

14
Data Mining Algorithms

• Market Basket Analysis
• Memory-based reasoning
• Cluster detection
• Link analysis
• Decision trees and rule induction algorithms
• Neural Networks
• Genetic algorithms

15
Market Basket Analysis

• A type of clustering used to predict purchase
  patterns.
• Identify the products likely to be purchased in
  conjunction with other products
• E.g., the famous (and apocryphal) story that men
  who buy diapers on Friday nights also buy beer.

16
Memory-based reasoning

• Use known instances of a model to make
  predictions about unknown instances.
• Could be used for sales forcasting or fraud
  detection by working from known cases to predict
  new cases

17
Cluster detection

• Finds data records that are similar to each
  other.
• K-nearest neighbors (where K represents the
  mathematical distance to the nearest similar
  record) is an example of one clustering algorithm

18
Link analysis

• Follows relationships between records to discover
  patterns
• Link analysis can provide the basis for various
  affinity marketing programs
• Similar to Markov transition analysis methods
  where probabilities are calculated for each
  observed transition.

19
Decision trees and rule induction algorithms

• Pulls rules out of a mass of data using
  classification and regression trees (CART) or
  Chi-Square automatic interaction detectors
  (CHAID)
• These algorithms produce explicit rules, which
  make understanding the results simpler

20
Neural Networks

• Attempt to model neurons in the brain
• Learn from a training set and then can be used to
  detect patterns inherent in that training set
• Neural nets are effective when the data is
  shapeless and lacking any apparent patterns
• May be hard to understand results

21
Genetic algorithms

• Imitate natural selection processes to evolve
  models using
• Selection
• Crossover
• Mutation
• Each new generation inherits traits from the
  previous ones until only the most predictive
  survive.

22
Lecture Outline

• Review
• Applications for Data Warehouses
• Data Mining
• Thanks again to lecture notes from Joachim Hammer
  of the University of Florida
• Object Oriented DBMS
• Inverted File and Flat File DBMS
• Object-Relational DBMS (revisited)
• Intelligent DBMS

23
Object-Oriented DBMS Basic Concepts

• Each real-world entity is modeled by an object.
  Each object is associated with a unique
  identifier (sometimes call the object ID or OID)

24
Object-Oriented DBMS Basic Concepts

• Each object has a set of instance attributes (or
  instance variables) and methods.
• The value of an attribute can be an object or set
  of objects. Thus complex object can be
  constructed from aggregations of other objects.
• The set of attributes of the object and the set
  of methods represent the object structure and
  behavior, respectively

25
Object-Oriented DBMS Basic Concepts

• The attribute values of an object represent the
  objects status.
• Status is accessed or modified by sending
  messages to the object to invoke the
  corresponding methods

26
Object-Oriented DBMS Basic Concepts

• Objects sharing the same structure and behavior
  are grouped into classes.
• A class represents a template for a set of
  similar objects.
• Each object is an instance of some class.

27
Object-Oriented DBMS Basic Concepts

• A class can be defined as a specialization of of
  one or more classes.
• A class defined as a specialization is called a
  subclass and inherits attributes and methods from
  its superclass(es).

28
Object-Oriented DBMS Basic Concepts

• An OODBMS is a DBMS that directly supports a
  model based on the object-oriented paradigm.
• Like any DBMS it must provide persistent storage
  for objects and their descriptions (schema).
• The system must also provide a language for
  schema definition and and for manipulation of
  objects and their schema
• It will usually include a query language,
  indexing capabilities, etc.

29
Generalization Hierarchy
30
OODBMS

• Many available commercially
• Gemstone, Polyhedra, Objectivity/DB, MetaKit,
  ObjectDB, etc.
• Many Open Source
• SHORE, GOODS (Generic Object Oriented Database
  System), The Zope Object DataBase (ZODB),
  Ozone, etc.
• If interested in finding more about oodbms
• See http//cbbrowne.com/info/oodbms.html

31
Example Ozone

• Version 1 of the MMM datastore used for the phone
  project in 202 last year was based on Ozone.
• The Ozone Database Project is a open initiative
  for the creation of an open source, Java based,
  object-oriented database management system.
• Definitely a work in progress

32
Example Ozone

• ozone is a fully featured, object-oriented
  database management system completely implemented
  in Java and distributed under an open source
  license. The ozone project aims to evolve a
  database system that allows developers to build
  pure object-oriented, pure Java database
  applications. Just program your Java objects and
  let them run in a transactional database
  environment.
• ozone includes a fully W3C compliant DOM
  implementation that allows you to store XML data.
  You can use any XML tool to provide and access
  these data. Support classes for Apache Xerces-J
  and Xalan-J are included.
• Besides the native API, ozone provides a ODMG
  3.0 interface. Although not fully ODMG compliant
  it helps you to port applications to/from ozone.
• ozone does not depend on any back-end database
  or mapping technology to actually save objects.
  It contains its own clustered storage and cache
  system to handle persistent Java objects.
• From http//www.ozone-db.org/frames/home/what.html

33
Example Ozone

• Database objects are the persistent objects
  designed by developers to fullfill their
  application logic needs. Database objects
  implement a given interface (in more concrete
  terms, a Java interface that extends
  org.ozoneDB.OzoneRemote), and this interface is
  the "visible" side of database objects. There is
  only one instance of a database object, which
  lives inside the database server. This database
  object is controlled via proxy objects.
• A given proxy object represents its corresponding
  database object - inside the client applications
  and inside other database objects. A proxy object
  can be seen as a persistent reference. Proxy
  classes are automatically generated out of the
  database classes by the Ozone post-processor and
  implement the same public interface as their
  respective database object counterpart - which
  means that they also implement the OzoneRemote
  interface that their corresponding database
  object implements.
• All ozone API methods return proxies for the
  actual database object inside the database.
  Therefore, the client deals with proxies only.
  However, this is transparent to the client
  proxies can be used as if they were the actual
  database objects, since they implement the same
  interface.
• Database objects are different from ordinary Java
  objects (other systems and specs, like JDO,
  respectively call them "primary" and "secondary",
  or "first-class" and "second-class"). Only one
  instance of a given database object reference
  exists in the database, as opposed to standard
  Java objects, which are treated in a "by-copy"
  fashion each time they are serialized. By
  analogy, database objects are a bit like rows in
  a relational database table, and members of these
  database objects that are standard Java objects
  correspond to the columns in the row - database
  object members would correspond to links to other
  tables, if we push the analogy.
• From http//sourceforge.net/docman/display_doc.ph
  p?docid10743group_id39695

34
Example Ozone
Ozone Architecture From http//sourceforge.net/d
ocman/display_doc.php?docid10743group_id39695
35
Example Ozone

• The Ozone architecture, very generally
  represented by the preceding diagram, has four
  main layers
• Client
• This is the client application area the client
  obtains a connection to an Ozone server,
  connection that can be shared by many threads.
  The client application interacts with the
  database API to create, delete, update and search
  persistent objects in the underlying Ozone
  storage
• Network
• The network layer is where the Ozone protocol
  plays a role similar to RMI. It carries method
  invocation information targeted at persistent
  objects, in addition to all other commands
  relayed to the Ozone server.
• Server
• The server manages client connections, security,
  transactions, and incoming method invocations
  from the clients. If required, it is in charge of
  invoking methods on persistent objects, therefore
  tightly interacting with the underlying object
  storage facility. The server maintains a
  transactionally safe environment for multiple
  clients that access persistent objects through a
  remote proxy.
• Storage
• The storage system is always accessed through an
  Ozone server. The storage is responsible for
  object persistence, clustering, object
  identification, and other task pertaining to
  low-level database-like operations.
• From http//sourceforge.net/docman/display_doc.ph
  p?docid10743group_id39695

36
Lecture Outline

• Review
• Applications for Data Warehouses
• Data Mining
• Thanks again to lecture notes from Joachim Hammer
  of the University of Florida
• Object Oriented DBMS
• Inverted File and Flat File DBMS
• Object-Relational DBMS (revisited)
• Intelligent DBMS

37
Inverted File DBMS

• Usually similar to Hierarchic DBMS in record
  structure
• Support for repeating groups of fields and
  multiple value fields
• All access is via inverted file indexes to DBS
  specified fields.
• Examples ADABAS DBMS from Software AG -- used in
  the MELVYL system

38
Flat File DBMS

• Data is stored as a simple file of records.
• Records usually have a simple structure
• May support indexing of fields in the records.
• May also support scanning of the data
• No mechanisms for relating data between files.
• Usually easy to use and simple to set up

39
Lecture Outline

• Review
• Applications for Data Warehouses
• Data Mining
• Thanks again to lecture notes from Joachim Hammer
  of the University of Florida
• Object Oriented DBMS
• Inverted File and Flat File DBMS
• Object-Relational DBMS (revisited)
• Intelligent DBMS

40
Object Relational Databases

• Began with UniSQL/X unified object-oriented and
  relational system
• Some systems (like OpenODB from HP) were Object
  systems built on top of Relational databases.
• Miro/Montage/Illustra built on Postgres.
• Informix Buys Illustra. (DataBlades)
• Oracle Hires away Informix Programmers.
  (Cartridges)

41
PostgreSQL

• Derived from POSTGRES
• Developed at Berkeley by Mike Stonebraker and his
  students (EECS) starting in 1986
• Postgres95
• Andrew Yu and Jolly Chen adapted POSTGRES to SQL
  and greatly improved the code base
• PostgreSQL
• Name changed in 1996, and since that time the
  system has been expanded to support most SQL92
  and many SQL99 features

42
Object Relational Data Model

• Class, instance, attribute, method, and integrity
  constraints
• OID per instance
• Encapsulation
• Multiple inheritance hierarchy of classes
• Class references via OID object references
• Set-Valued attributes
• Abstract Data Types

43
PostgreSQL Classes

• The fundamental notion in Postgres is that of a
  class, which is a named collection of object
  instances. Each instance has the same collection
  of named attributes, and each attribute is of a
  specific type. Furthermore, each instance has a
  permanent object identifier (OID) that is unique
  throughout the installation. Because SQL syntax
  refers to tables, we will use the terms table and
  class interchangeably. Likewise, an SQL row is an
  instance and SQL columns are attributes.

44
Creating a Class

• You can create a new class by specifying the
  class name, along with all attribute names and
  their types
• CREATE TABLE weather (
• city varchar(80),
• temp_lo int, -- low
  temperature
• temp_hi int, -- high
  temperature
• prcp real, --
  precipitation
• date date
• )

45
PostgreSQL

• Postgres can be customized with an arbitrary
  number of user-defined data types. Consequently,
  type names are not syntactical keywords, except
  where required to support special cases in the
  SQL92 standard.
• So far, the Postgres CREATE command looks exactly
  like the command used to create a table in a
  traditional relational system. However, we will
  presently see that classes have properties that
  are extensions of the relational model.

46
PostgreSQL

• All of the usual SQL commands for creation,
  searching and modifying classes (tables) are
  available. With some additions
• Inheritance
• Non-Atomic Values
• User defined functions and operators

47
Inheritance

• CREATE TABLE cities (
• name text,
• population float,
• altitude int -- (in ft)
• )
• CREATE TABLE capitals (
• state char(2)
• ) INHERITS (cities)

48
Inheritance

• In Postgres, a class can inherit from zero or
  more other classes.
• A query can reference either
• all instances of a class
• or all instances of a class plus all of its
  descendants

49
Inheritance

• For example, the following query finds all the
  cities that are situated at an attitude of 500ft
  or higher
• SELECT name, altitude
• FROM cities
• WHERE altitude gt 500
• --------------------
• name altitude
• --------------------
• Las Vegas 2174
• --------------------
• Mariposa 1953
• --------------------

50
Inheritance

• On the other hand, to find the names of all
  cities, including state capitals, that are
  located at an altitude over 500ft, the query is
• SELECT c.name, c.altitude
• FROM cities c
• WHERE c.altitude gt 500
• which returns
• --------------------
• name altitude
• --------------------
• Las Vegas 2174
• --------------------
• Mariposa 1953
• --------------------
• Madison 845
• --------------------

51
Inheritance

• The "" after cities in the preceding query
  indicates that the query should be run over
  cities and all classes below cities in the
  inheritance hierarchy
• Many of the PostgreSQL commands (SELECT, UPDATE
  and DELETE, etc.) support this inheritance
  notation using ""

52
Non-Atomic Values

• One of the tenets of the relational model is that
  the attributes of a relation are atomic
• I.e. only a single value for a given row and
  column
• Postgres does not have this restriction
  attributes can themselves contain sub-values that
  can be accessed from the query language
• Examples include arrays and other complex data
  types.

53
Non-Atomic Values - Arrays

• Postgres allows attributes of an instance to be
  defined as fixed-length or variable-length
  multi-dimensional arrays. Arrays of any base type
  or user-defined type can be created. To
  illustrate their use, we first create a class
  with arrays of base types.
• CREATE TABLE SAL_EMP (
• name text,
• pay_by_quarter int4,
• schedule text
• )

54
Non-Atomic Values - Arrays

• The preceding SQL command will create a class
  named SAL_EMP with a text string (name), a
  one-dimensional array of int4 (pay_by_quarter),
  which represents the employee's salary by quarter
  and a two-dimensional array of text (schedule),
  which represents the employee's weekly schedule
• Now we do some INSERTSs note that when appending
  to an array, we enclose the values within braces
  and separate them by commas.

55
Inserting into Arrays

• INSERT INTO SAL_EMP
• VALUES ('Bill',
• '10000, 10000, 10000, 10000',
• '"meeting", "lunch", ')
• INSERT INTO SAL_EMP
• VALUES ('Carol',
• '20000, 25000, 25000, 25000',
• '"talk", "consult", "meeting"')

56
Querying Arrays

• This query retrieves the names of the employees
  whose pay changed in the second quarter
• SELECT name
• FROM SAL_EMP
• WHERE SAL_EMP.pay_by_quarter1 ltgt
• SAL_EMP.pay_by_quarter2
• ------
• name
• ------
• Carol
• ------

57
Querying Arrays

• This query retrieves the third quarter pay of all
  employees
• SELECT SAL_EMP.pay_by_quarter3 FROM SAL_EMP
• ---------------
• pay_by_quarter
• ---------------
• 10000
• ---------------
• 25000
• ---------------

58
Querying Arrays

• We can also access arbitrary slices of an array,
  or subarrays. This query retrieves the first item
  on Bill's schedule for the first two days of the
  week.
• SELECT SAL_EMP.schedule1211
• FROM SAL_EMP
• WHERE SAL_EMP.name 'Bill'
• -------------------
• schedule
• -------------------
• "meeting",""
• -------------------

59
Lecture Outline

• Review
• Applications for Data Warehouses
• Data Mining
• Thanks again to lecture notes from Joachim Hammer
  of the University of Florida
• Object Oriented DBMS
• Inverted File and Flat File DBMS
• Object-Relational DBMS (revisited)
• Intelligent DBMS

60
Intelligent Database Systems

• Intelligent DBS are intended to handle more than
  just data, and may be used in tasks involving
  large amounts of information where analysis and
  discovery are needed.

The following is based on Intelligent Databases
by Kamran Parsaye, Mark Chignell, Setrag
Khoshafian and Harry Wong AI Expert, March 1990,
v. 5 no. 3. Pp 38-47
61
Intelligent Database Systems

• They represent the evolution and merging of
  several technologies
• Automatic Information Discovery
• Hypermedia
• Object Orientation
• Expert Systems
• Conventional DBMS

62
Intelligent Database Systems
Automatic discovery
Expert Systems
Intelligent Databases
Hypermedia
Object Orientation
Traditional Databases
63
Intelligent Database Architecture
High-Level Tools
High-Level User Interface
Intelligent Database Engine
64
Environment Components
Flexible queries
Error detection
Data Dictionary
Automatic Discovery
Concept Dictionary
65
Intelligent Databases

• Data Dictionary contains the system metadata
• Concept Dictionary defines virtual fields based
  on approximate definitions
• Data Analysis and discovery
• Find patterns
• detect errors
• Process queries

66
Intelligent Databases

• Automatic Discovery
• Data comprehension
• Form Hypotheses
• Make queries
• View results and perhaps modify hypotheses
• Repeat

67
Intelligent Databases

• Automatic Error Detection
• Integrity Constraints
• Rule systems
• Analysis of data for anomalies

68
Intelligent Databases

• Flexible Query Processing
• Approximate and fuzzy queries
• SELECT NAME, AGE, TELEPHONE FROM PERSONEL WHERE
  NAME Dovid Smith and AGE IS-CLOSE-TO 19
• confidence factors
• Ranked query results

69
Intelligent Databases

• Intelligent User Interfaces
• Hyperlinked data in the data/knowledge base
• Multimedia presentations
• Dynamic linking of related information

70
Intelligent Databases

• Intelligent Database Engine
• OO support
• Inference features
• Global optimization
• Rule manager
• Explanation manager
• Transaction manager
• Metadata manager
• Access module
• Multimedia manager
