Status Port, Commands

1

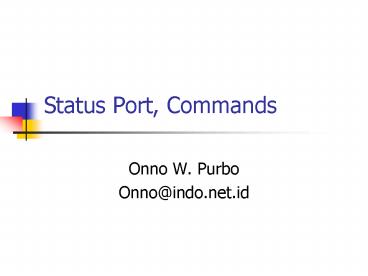

Status Port, Commands

• Onno W. Purbo
• Onno_at_indo.net.id

2
Reference

• http//www.gnugk.org
• Open H.323 Gatekeeper Manual

3

• Reload
• Reload the configuration.
• Version, v
• Show the version and OS information of the
  gatekeeper.

4

• Statistics, s
• Show the statistics information of the
  gatekeeper.
• Example
• Statistics
• -- Endpoint Statistics --
• Total Endpoints 21 Terminals 17 Gateways 4
  NATed 2
• Cached Endpoints 1 Terminals 1 Gateways 0
• -- Call Statistics --
• Current Calls 1 Active 1 From Neighbor 0 From
  Parent 0
• Total Calls 1539 Successful 1076 From
  Neighbor 60 From Parent 5
• Startup Fri, 21 Jun 2002 105022 0800
  Running 11 days 042259

5

• PrintAllRegistrations, r, ?
• Show all registered endpoints.
• Format
• AllRegistrations
• RCFIPPortAliasesTerminal_TypeEndpointID
• ...
• Number of Endpoints n
• Example
• AllRegistrations
• RCF10.1.1.101720800dialedDigitsWeih323_IDte
  rminal1289_endp
• RCF10.0.1.431720613dialedDigitsJacky
  Tsaih323_IDterminal1328_endp
• RCF10.0.1.551720705dialedDigitsSherry
  Liuh323_IDterminal1333_endp
• Number of Endpoints 3

6

• PrintAllRegistrationsVerbose, rv, ??
• Show details of all registered endpoints.
• Format
• AllRegistrations
• RCFIPPortAliasesTerminal_TypeEndpointID
• Registration_Time C(Active_Call/Connected_Call/Tot
  al_Call) ltrgt
• Prefixes (gateway only)
• ...
• Number of Endpoints n
• Example
• AllRegistrations
• RCF10.0.1.81720Accel-GW2h323_IDgateway1322_e
  ndp
• Wed, 26 Jun 2002 164003 0800 C(1/5/33) lt1gt
• Prefixes 09,002
• RCF10.1.1.101720800dialedDigitsWeih323_IDte
  rminal1289_endp
• Wed, 26 Jun 2002 164055 0800 C(0/32/39) lt1gt
• RCF10.0.1.661720716dialedDigitsVickyh323_ID
  terminal1425_endp
• Wed, 26 Jun 2002 164058 0800 C(1/47/53) lt1gt

7

• PrintCurrentCalls, c, !
• Show all current calls.
• Format
• CurrentCalls
• Call No. CallID Call_Duration Left_Time
• Dialed_Number
• ACFCaller_IPPortCaller_EPIDCRV
• ACFCallee_IPPortCallee_EPIDCRV
• ...
• Number of Calls Current_Call Active Active_Call
  From Neighbor Call_From_Neighbor \
• From Parent Call_From_Parent
• Example
• CurrentCalls
• Call No. 29 CallID bd c6 17 ff aa ea 18 10 85
  95 44 45 53 54 77 77 109 491
• Dial 0953378875dialedDigits
• ACF10.0.1.4917204048_CGK125263
• ACF10.1.1.117204037_CGK125263
• Call No. 30 CallID 70 0e dd c0 9a cf 11 5e 00
  01 00 05 5d f9 28 4d 37 563

8

• PrintCurrentCallsVerbose, cv, !!
• Show details of all current calls.
• Format
• CurrentCalls
• Call No. CallID Call_Duration Left_Time
• Dialed_Number
• ACFCaller_IPPortCaller_EPIDCRV
• ACFCallee_IPPortCallee_EPIDCRV
• Caller_AliasesCallee_AliasesBandwidthConnecte
  d_Time ltrgt
• ...
• Number of Calls Current_Call Active Active_Call
  From NB Call_From_Neighbor
• Example
• CurrentCalls
• Call No. 48 CallID 7d 5a f1 0a ad ea 18 10 89
  16 00 50 fc 3f 0c f5 30 570
• Dial 0225067272dialedDigits
• ACF10.0.1.20017201448_endp19618
• ACF10.0.1.717201325_endp19618
• Sherryh323_IDAccel-GW1h323_ID200000Wed, 26
  Jun 2002 172955 0800 lt2gt

9

• Find, f
• Find a registered endpoint by an alias or a
  prefix.
• Format
• Find Alias
• RCFIPPortAliasesTerminal_TypeEndpointID
• Example
• f 800
• RCF10.1.1.101720800dialedDigitsWeih323_IDte
  rminal1289_endp
• f 801
• SoftPBX alias 801 not found!

10

• FindVerbose, fv
• Find details of a registered endpoint by an alias
  or a prefix.
• Format
• FindVerbose Alias
• RCFIPPortAliasesTerminal_TypeEndpointID
• Registration_Time C(Active_Call/Connected_Call/Tot
  al_Call) ltrgt
• Prefixes (gateway only)
• Example
• fv 02
• RCF10.0.1.1001720TFNh323_IDgateway4037_CGK1
• Wed, 26 Jun 2002 174729 0800 C(0/84/120) lt1gt
• Prefixes 02,09

11

• UnregisterIP
• Forcedly unregister an endpoint by IP and call
  signalling port.
• Format
• UnregisterIP IPPort
• Example
• UnregisterIP 10.0.1.311720
• URQ10.0.1.3110321326_endpmaintenance
• SoftPBX Endpoint 10.0.1.311720 unregistered!

12

• UnregisterAlias
• Forcedly unregister an endpoint by one of its
  aliases.
• Format
• UnregisterAlias Alias
• Example
• UnregisterAlias 601
• URQ10.0.1.3110321326_endpmaintenance
• SoftPBX Endpoint 601 unregistered!

13

• UnregisterAllEndpoints
• Forcedly unregister all registered endpoints.
• Example
• UnregisterAllEndpoints
• URQ10.0.1.710241325_endpmaintenance
• URQ10.0.1.810241322_endpmaintenance
• URQ10.0.1.3210321324_endpmaintenance
• URQ10.0.1.3610321323_endpmaintenance
• URQ10.0.1.4210321318_endpmaintenance
• Done

14

• DisconnectCall
• Disconnect a call with given number.
• Format
• DisconnectCall Number
• Example
• DisconnectCall 1533

15

• DisconnectIP
• Disconnect all calls of an endpoint by IP and
  call signalling port.
• Format
• DisconnectIP IPPort
• Example
• DisconnectIP 10.0.1.311720

16

• DisconnectAlias
• Disconnect all calls of an endpoint by one of its
  aliases.
• Format
• DisconnectAlias Alias
• Example
• DisconnectAlias 601

17

• ClearCalls
• Disconnect all calls on the gatekeeper.
• GK
• Show the information of the parent gatekeeper.

18

• Debug
• Only used for debug purpose. Options
• trc -n - Show/modify trace level.
• cfg SEC PAR - Read print a config param in a
  section.
• set SEC PAR VAL - Write config value parm in a
  section.
• remove SEC PAR - Remove config value parm in
  section.
• remove SEC - Remove a section.
• printrm VERBOSE - Print all removed endpoint
  records.
• Example
• debug trc 3
• debug set RoutedMode H245Routed 1

19

• Who
• Show all people on the status port.
• Exit, q
• Quit the status port.
