1
E-mailga_at_uni-hd.de www.lasik-uni-hd.de

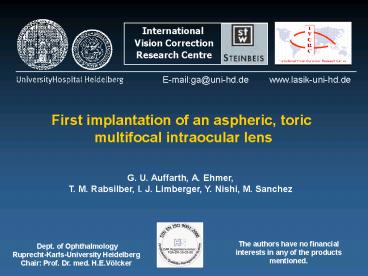

First implantation of an aspheric, toric
multifocal intraocular lens
G. U. Auffarth, A. Ehmer, T. M. Rabsilber, I. J.
Limberger, Y. Nishi, M. Sanchez
The authors have no financial interests in any of
the products mentioned.
Dept. of Ophthalmology Ruprecht-Karls-University
Heidelberg Chair Prof. Dr. med. H.E.Völcker
2
First implantation of an Rayner aspheric, toric,
multifocal IOL
Patient T.A., female, 45years, RLE
procedure Pre-OP data BCDVA OD
8.0/-2.25/170o 0.8 OS 10.25/-3.25/5o
0.8 ACD (from endothelium) 2.45 mm
(OD) 2.34 mm (OS). Corneal thickness was 528
and 507µm.
3
Combining Optical Features
Toric, multifocal IOL Model Rayner 588F
C-Flex Custom made IOL OD 33.5 / 3
Near Add/ -3.5 Torus OS 36.5 / 3 Near
Add/ -4.5 Torus
4
First implantation of an Rayner aspheric, toric,
multifocal IOL
B
A
D
C
5
Refractive Outcome
Model Rayner 588F C-Flex Post-OP data UCDVA OD
0.9 OS 0.6 UCNVA OD 0.5 OS 0.5
Defocus Curve
6
First Implantation of an Rayner aspheric, toric,
multifocal IOL
Good refractive outcome Good visual acuity for
distance and near Good centration, no rotation No
photic phenomena No subjective complaints
7
First Implantation of an Rayner aspheric, toric,
multifocal IOL
Combination of different optical features in one
IOL implant will enlarge the number of potential
candidates for Multifocal IOL implantation. Multif
ocal IOLs with a fixed torus of 2 to 4 Diopters
can be produced as mass products reducing the
price for individual implants.
8
G.U. Auffarth, MD, PhD A. Ehmer, MSc M.P. Holzer,
MD A.J. Hunold, MD I.J. Limberger, MD F. Nagadan,
MD Y. Nishi, MD T.M. Rabsilber, MD M.J.
Sanchez,MD I.Schmack, MD
International Vision Correction Research Centre
Certified for DIN EN ISO 90012000
Web www.lasik-hd.de
