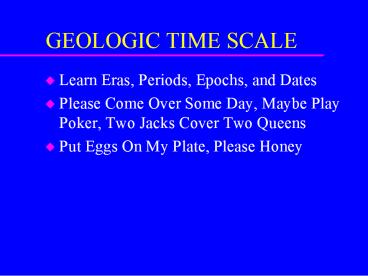

GEOLOGIC TIME SCALE

1
GEOLOGIC TIME SCALE

• Learn Eras, Periods, Epochs, and Dates
• Please Come Over Some Day, Maybe Play Poker, Two
  Jacks Cover Two Queens

• Put Eggs On My Plate, Please Honey

2
Ch 2 EARTH MATERIALS

• ATOMS

3
Ch 2 EARTH MATERIALS

• ATOMS

Protons
4
Ch 2 EARTH MATERIALS

• ATOMS

Protons
Neutrons
5
Ch 2 EARTH MATERIALS

• ATOMS

Protons
Neutrons
Electrons
6
Ch 2 EARTH MATERIALS

• ATOMS

Charge
Mass
Protons
Neutrons
Electrons
7
Ch 2 EARTH MATERIALS

• ATOMS

Charge
Mass
Protons

0
Neutrons
-
Electrons
8
Ch 2 EARTH MATERIALS

• ATOMS

Charge
Mass
Protons

1
0
Neutrons
1
-
0
Electrons
9
EARTH MATERIALS

• Atomic Number - Number of Protons

10
EARTH MATERIALS

• Atomic Number - Number of Protons
• Atomic Mass - Number of Protons Neutrons

11
EARTH MATERIALS

• Atomic Number - Number of Protons
• Atomic Mass - Number of Protons Neutrons
• Isotopes - have the same atomic number, but a
  different mass number

12
EARTH MATERIALS

• Chemical Bonding involves electrons

13
EARTH MATERIALS

• Chemical Bonding involves electrons

Electrons are found in shells
Ideal levels of electrons in shells include 2, 8,
8, ...
14
EARTH MATERIALS

• Ionic Bonding

An ion is a charged particle
15
EARTH MATERIALS

• Ionic bonding
• e.g. Sodium (Na)
• 11 protons
• 11 neutrons
• 11 electrons

16
EARTH MATERIALS

• Ionic bonding
• e.g. Sodium (Na)
• 11 protons
• 11 neutrons
• 11 electrons
• e.g. Chlorine (Cl)
• 17 protons
• 17 neutrons
• 17 electrons

17
EARTH MATERIALS

• Ionic Bonding
• an ion is a charged particle
• Covalent Bonding
• sharing of electrons

18
EARTH MATERIALS

• Ionic Bonding
• an ion is a charged particle
• Covalent Bonding
• sharing of electrons
• e.g. Cl2

19
EARTH MATERIALS

• Ionic Bonding
• an ion is a charged particle
• Covalent Bonding
• sharing of electrons
• e.g. Cl2
• Chlorine has 17 protons, neutrons and
  electrons

20
EARTH MATERIALS

• Atoms
• (e.g. O, Si, Ca, Na, C) form molecules

21
EARTH MATERIALS

• Atoms
• (e.g. O, Si, Ca, Na, C) form molecules
• Molecules
• (e.g. SiO2 , NaCl, CaCO3, NaAlSi3O8)
• form minerals

22
EARTH MATERIALS

• Atoms
• (e.g. O, Si, Ca, Na, C) form molecules
• Molecules
• (e.g. SiO2 , NaCl, CaCO3, NaAlSi3O8)
• form minerals
• Minerals
• (e.g. Quartz, Calcite, Feldspar) form rocks

23
ROCKS

• What are ROCKS?
• n. mineral matter variously composed, formed in
  masses or large quantities in the Earths crust
  by the action of heat, water, etc.

24
ROCKS

• Igneous
• Metamorphic
• Sedimentary

25
ROCKS

• Igneous
• cooled from molten material
• intrusive vs. extrusive

26
ROCKS

• Igneous
• Granite - intrusive
• - rich in silica
• - specific gravity 2.7
• (density in g/cc)

27
ROCKS

• Igneous
• Granite
• Basalt - extrusive
• - low silica (Pyroxine, Olivine, Sodium
  Plagioclase)

• - specific gravity 3.0

28
ROCKS

• Igneous
• Granite
• Basalt
• Andesite - extrusive
• - intermediate (Na/Ca plagioclase,
• biotite, amphibole)
• - specific gravity 2.8

29
ROCKS

• Igneous
• Metamorphic - altered by pressure,
  temperature, chemical change

• often foliated or layered
• Pressure may come from mountain
• formation

30
ROCKS

• METAMORPHIC
• Foliated
• (examples Slate, Schist, Gneiss)
• Non-Foliated
• (examples Marble, Quartzite, Greenstone)

31
ROCKS

• Igneous
• Metamorphic
• Sedimentary Clastic from fragments of
• other rocks
• Nonclastic chemical or biological in
  origin

32
ROCKS

• Clastic Sedimentary Rock Formation
• 1) Weathering
• 2) Transport
• 3) Deposition
• 4) Compaction
• 5) Cementation

33
ROCKS

• NONCLASTIC SEDIMENTARY ROCKS
• Chemical
• (cherts, carbonates, limestones, halite,
  gypsum, etc.)

• Biological
• (diatomite, bioclasts, coal, etc.)

34
ROCK CYCLE
Weathering
Igneous
Pressure
Chemical
Heat
Heat
Heat
Weathering
Sedimentary
Metamorphic
Pressure
Chemical
Heat
35
SEDIMENTARY ROCKS

• Characteristics
• particle size (Wentworth Scale p.69, Levin)

36
SEDIMENTARY ROCKS

• Particle size
• Texture
• -clastic - individual fragments
• - nonclastic - interlocking crystals grown
  together


37
SEDIMENTARY ROCKS

• Particle Size
• Texture
• Sorting
• - poorly sorted - little time in transport
• -well sorted - more time in transport

38
SEDIMENTARY ROCKS

• Particle Size
• Texture
• Sorting
• Parent Material
• - from which types of rocks were the
  sediments derived?

39
SEDIMENTARY ROCKS

• Particle size
• Texture
• Sorting
• Parent material
• Particle Shape
• - how rounded are the grains?
• - reflects method, distance, how fast

40
SEDIMENTARY ROCKS

• Particle size
• Texture
• Sorting
• Parent material
• Particle grain
• Color - red, yellow, brown - LAND
• - black - LOW OXYGEN
• - gray-green - MARINE

41
SEDIMENTARY ROCKS

• CLASTIC SEDIMENTARY ROCKS
• Sandstones (Arkoses, Graywackes, Quartz)
• Shales - fine grain, from clay, silt
• Conglomerate - gravel cemented

42
SEDIMENTARY ROCKS

• Nonclastic sedimentary rocks
• Carbonates - often associated with marine
• environments, may be produced in warm,
  shallow seas

• (e.g. limestone, dolomite)
• Diatomite - produced from algae with
• silica walls
• Coal - organic materials from dead plants
• Evaporites - salt, gypsum

43
SEDIMENTARY STRUCTURES

• Grain Orientation
• long axis toward flow
• grains may be tilted to upstream

44
SEDIMENTARY STRUCTURES

• Grain orientation
• Cross bedding
• current dominated deposition
• (e.g. deltas, dunes)

45
SEDIMENTARY STRUCTURES

• Grain orientation
• Cross bedding
• Ripple Marks
• - shallow water deposition
• - symmetric ripples oscillation
• - asymmetric ripples direction of flow

46
SEDIMENTARY STRUCTURES

• Grain orientation
• Cross bedding
• Ripple Marks
• Mud Cracks
• - alternating wet and dry conditions

47
FACIES

• Even though strata have lateral continuity, the
  sediments also change laterally due to differing
  environmental conditions.

shale
sand
Lithofacies
cclam shells
c
c
s
s
s
c
c
s
s
c
s
sshark teeth
Biofacies
48
SEDIMENTARY STRUCTURES

• THE KEY TO UNDERSTANDING SEDIMENTARY ROCKS IS
  THINKING ABOUT THE DEPOSITIONAL ENVIRONMENT

• sorted? particle size? parent? cement?
• pond? stream? ocean? wind? glacier?
