PIANC Seismic Design Guidelines for Port Structures

1

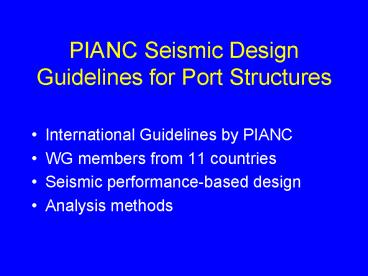

PIANC Seismic Design Guidelines for Port
Structures

• International Guidelines by PIANC
• WG members from 11 countries
• Seismic performance-based design
• Analysis methods

2
Performance-based design

• Acceptable damage level
• I Serviceable
• II Repairable
• III Near Collapse
• IV Collapse
• Earthquake motion level
• Level 1
• Level 2
• Performance grade
• S, A, B, C

3
Acceptable level of damage
4
Performance grades S, A, B, and C
5
(No Transcript)
6
Performance-based design

• Choose performance grade Owners/users
• Define damage criteria Engineers
  Owners/users
• Evaluate seismic performance Engineers

7
Performance-based design

• Damage criteria
• Failure mode
• Displacement
• Strain

• Analysis type
• Simplified analysis
• Simplified dynamic analysis
• Dynamic analysis
• Input
• Earthquake motions
• Geotechnical conditions
• Proposed design or existing structures
• Output
• Displacement
• Strain

8
Types of Analysis

• Simplified analysis
• Appropriate for evaluating approximate threshold
  level and/or elastic limit
• Simplified dynamic analysis
• Possible to evaluate extent of displacement/
  stress/strain based on assumed failure modes
• Dynamic analysis
• Possible to evaluate both failure modes and
  extent of displacement/stress/strain

9
Choice of analysis types

• Earthquake motion level
• Geotechnical conditions
• Structural conditions
• Analysis stage
• Performance grade

10
Types of analysis related to performance grade
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24




25


26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
PIANC Seismic Design Guidelines for Port
Structures

• PublishedSeptember, 2001, Balkema
• Sponsor Coastal Development Institute of
  Technology, Japan
• PIANC Seminars
• Tokyo, December 10, 2001
• London, October 30, 2002
• Long Beach or Auckland
