Titanium in Chemical Process Industry

1

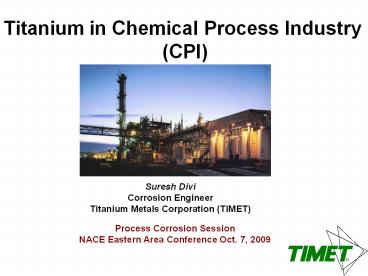

Titanium in Chemical Process Industry (CPI)
Suresh Divi Corrosion Engineer Titanium Metals
Corporation (TIMET)
Process Corrosion Session NACE Eastern Area
Conference Oct. 7, 2009
2
Outline

• Introduction to the CPI
• CPI Equipment/Components
• Titanium Corrosion Resistance
• Titanium alloys
• Ti Applications in CPI
• Benefits Cost considerations
• Ti role in the CPI
• Summary

3
Introduction to the CPI

• An industry in which the raw materials undergo
  chemical conversion during their processing into
  finished products
• Chemical conversion influences the pH of the
  product
• Intern pH influences the corrosion resistance of
  the metal
• Very aggressive conditions (low pH, high
  temperature)
• In Petroleum refining, acidic conditions arise
  from chloride salts entering the refinery in
  crude oil
• Dilute HCl acid encounter in many chlorination
  type chemical process.Example Manufacturing of
  Vinyl chloride monomer(VCM)

4
Typical CPI

• Power Generation
• Petrochemical
• Organic acid
• Chemical
• Fertilizers
• Metal Recovery
• Salt
• Chlorine
• Pulp paper

5
CPI Equipment

• Heat Exchangers
• Reactor vessels
• Piping
• Pumps
• Mixers
• Anodes
• Anode baskets
• Distillation Columns

6
Titanium

• Abundant - Not Exotic!
• 4th most plentiful metal on earth
• Classified as a reactive metal (passive oxide
  film)
• About half as dense as nickel
• Similar in strength to 316 S.S. (CP Ti)
• Excellent corrosion resistance/immunity in
  chlorides (especially sea water)
• 45 years service experience with the CPI

7
Ti Corrosion Resistance

• Corrosion protection is due to the formation of
  oxide film
• Thin (100Å) and transparent
• Stable and chemically resistant
• Smooth and ceramic like, hard to remove
• Instantaneously reheal after damage
• (needs traces of water or oxygen)

8
Titanium Corrosion Resistance

• Anodic Protection (external power supply)
• Inhibitors (Fe3, Cu2, Mo6,etc..)
• Alloying with stable elements (Mo,Zr ,Cr)
• Alloying with noble metals (Pt,Pd,Ru)
• Very resistant to oxidizing media (HNO3)

9
Titanium Corrosion Resistance
Wide range of passivation
10
Titanium Corrosion Resistance

• Excellent resistance to chloride corrosion
  (pitting)
• Immune to soil atmospheric corrosion
• No preferential weld corrosion
• Immune to MIC (microbial influenced
  corrosion)attack
• Good resistance to Erosion
• No corrosion in Sea water

11
Titanium alloys
Titanium Titanium Alloys for the CPI Market
12
Titanium alloys
Mechanical Properties
High
Medium
Low
13
Titanium alloys

• Low Strength Grades (1, 2, 7, 11, 16, 17)
• Grade 2 most readily available
• Strength similar to austenitic SS
• Pd/Ru does not affect mechanical props

• Medium Strength Grades (3, 12, 9, 28)
• Can be cold formed (strip producible)
• Available in all product forms
• Strength similar to duplex SS
• Highest strength ASME grades

• High Strength Grades (23, 29, 32, 5)
• Common product forms are bar/billet/plate
• Must use heat when forming
• Weldability is best in grade 32
• Oxygen/Al content affect toughness and SCC

14
Titanium alloys-Reducing acids
15
Localized Corrosion

• Not susceptible to pitting or SCC attack
  (unalloyed grades)
• All Ti grades resistant to crevice attack to
  about 80C
• Other grades (especially Pd) can be used up to
  gt250C

16
Corrosion - Galvanic Effects

• Ti very noble in chlorides - almost alwaysthe
  cathode
• Since Ti is cathode, no concern for corrosion
• In galvanic couple, other metal may have
  accelerated corrosion attack
• Hydrogen damage to Ti may occur if cathodic
  potential not regulated and if temperature gt 80ºC

17
CPI companies use Ti

• Dow,Dupont
• Shell, Chevron, BP (AMOCO)
• Morton Salt
• Kerr-McGee
• Bayer
• Heinz
• BASF

18
Ti application in CPI
Reactor Vessel
Ti lined reactor vessel for mining operation
19
Ti application in CPI cont..
Tube Exchanger
Straight heat tube exchanger
20
Ti application in CPI cont..
Tube Exchanger
Plate coil immersion heat exchanger
Plate heat exchanger
21
Ti application in CPI cont..
Ti tubed salt evaporator for table salt
22
Ti application in CPI cont..
Ti anode baskets for anodized metal parts
23
Benefits-Corrosion Resistance (Sea Water)
Corrosion Mode Cu Alloys Al Alloys 316 SS Adv. SS Ni Alloys Titanium
General Corrosion R/S R R R R R
Erosion Corrosion S R R R R R
Pitting Attack S S S R R R
Crevice Corrosion S S S S S R
Stress Corrosion R/S S R/S R R R
MIC S S S S R R
Weld Attack S S S S R R
Galvanic Attack S S S R R R
Composite Comp. S S S S S R
RResistance
SSusceptible
24
Benefits-Corrosion Resistance (Performance)
Maximum Performance Minimum Performance

• Titanium ASTM Grades 7 16
• Titanium ASTM Grade 12
• Titanium ASTM Grade 2 / Alloy C-276, C-22, 59
• Alloy 625
• 6 Mo Stainless Steel / 2507 Stainless Steel
• 2205 Stainless Steel
• 316L Stainless Steel
• 304 Stainless Steel

25
Galvanic series-Sea water
26
Ti application
Sea water application
Centrifugal pumps
27
Ti application
Sea water application
Cast pump for handling sea water
28
Benefits-Density

• Roughly half as dense as iron nickel based
  alloys
• A pound of titanium goes a lot further

Copper
Titanium
Zirconium
Stainless Steel
Nickel
29
Benefits

• Good Thermal Conductivity (12.5 Btu/Hr-Ft2-F/ft)
• 30 above 300 series Stainless steel,
• 60 above the super stainless grades

• Low Elastic Modulus (15 Mpsi)
• Titanium flexibility considered into design and
  fabrication
• (supports,shafts)

• Life cycle
• Ti wins life cycle costing and proper design
  engineering
• (thin wall, no corrosion allowance)

30
Benefits-Design Allowance
31
Cost considerations

• Total system installed cost maintenance
• Eliminate multiple installation/replacement costs
• Reduced maintenance costs (oxide forms slick
  surface)
• Titanium does not require coatings
• Environmental/contamination costs (Ti non-toxic)
• Reuse/recycle of Titanium

32
Mature Applications
Ti role in the CPI
gt30 yrs service history
33
Newer Applications
Ti role in the CPI
lt20 yrs service history
34
SUMMARY

• Excellent chloride corrosion resistance
• Wide selection of alloy properties without
  sacrificing corrosion resistance
• Proven resistance to many organic chemicals
• Environmentally friendly metal
• Cost effective for CPI equipment
• gt40 years proven service in the CPI
