Deepak Srivastava

1

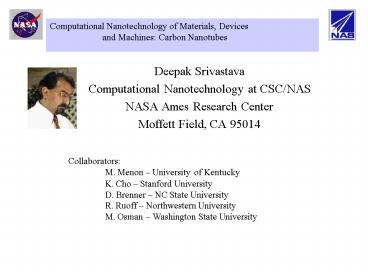

Computational Nanotechnology of Materials,
Devices and Machines Carbon Nanotubes

• Deepak Srivastava
• Computational Nanotechnology at CSC/NAS
• NASA Ames Research Center
• Moffett Field, CA 95014

Collaborators M. Menon University of
Kentucky K. Cho Stanford University D.
Brenner NC State University R. Ruoff
Northwestern University M. Osman Washington
State University
2
(No Transcript)
3
http//www.ipt.arc.nasa.gov at Ames Research
Center
4
Simulation Techniques

• Large scale Classical Molecular Dynamics
  Simulations on a Shared
• Memory Architecture Computer

• Tersoff-Brenner reactive many-body potential for
  hydrocarbons
• with long range LJ(6-12) Van der Walls
  interactions
• Parallel implementation on a shared memory
  Origin2000

• Quantum Molecular Dynamics Simulations

• Tight-binding MD in a non-orthogonal atomic
  basis
• Previous parametrization silicon and carbon (M.
  Menon and K. R
• Subbaswami, Phys. Rev. B 1993-94.
• Extended to heteroatomic systems including C, B,
  N, H

5
Experimental Nanotechnology at Ames Research
Center
http//www.ipt.arc.nasa.gov at Ames Research
Center
6
Nanomechanics of Nanomaterials

• Nanotubes are extremely strong highly elastic
  nanofibers

High value of Youngs Modulus (1.2 -1.3 T Pa
for SWNTs)
Elastic limit upto 10-15 strain

• Dynamic response under axial compression,
  bending torsion

• redistribution of strain
• sharp buckling leading to bond rupture
• SWNT is stiffer than MWNT

7
Nanomechanics of Nanomaterials
8
Nanotubes in Composites

• Experiment buckling and collapse of nanotubes
  embedded
• in polymer composites.

Local collapse or fracture of thin tubes.
Buckle, bend and loops of thick tubes..
9
Stiffness and Plasticity of Compressed C Nanotubes
10
Plastic Collapse of an (8,0) Carbon Nanotube
Quantum Molecular Dynamics

• D. Srivastava, M. Menon and K. Cho, Phys. Rev.
  Lett. (1999)

11
Plastic Collapse by Design

• Tube plastically collapses at the location of
  the defect
• New types of heterojunctions can be created
• Quantum dot effect in one dimensional system

12
CxByNz Nanotubes

• Band gap engineering over a larger range

• BN 5 eV
• BC2N 2 eV
• C 0 - 1 eV
• BC3 0.5 eV

13
BN Nanotubes - Structural Characteristics

• BN bond buckling effect

14
BN Nanotubes Nanomechanics and Plasticity

• Comparison of Youngs modulus and elastic limit

15
Anisotropic Plasticity of BN Nanotube

• Plastic collapse at 14.75 strain

(a)
(b)
(c)
(d)
(e)
16
Anisotropic Plasticity of BN Nanotubes
Quantum Molecular Dynamics
17
Comparison of Plastic Collapse of BN and C
Anisotropic strain release
Isotropic strain release
18
BN Nanotubes - Nanomechanics

• BN nanotube based composite with anisotropic
  plasticity
• Nanostructured skin effect !

19
(No Transcript)
20
Nanotube Electronics (Basics)
21
Band Structure
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
Nanoelectronics with Doping
26
(No Transcript)
27
(No Transcript)
28
Nano Electromechanical Effects (NEMS)
Mechanical deformation alter the electronic
deformation Of nanotubes effect is chirality
dependent
29
Mechano-Chemical Effects Kinky Chemistry
Cohesive Energy
Binding Energy
30
Functionalization of Nanotubes
31
Mechano-Chemical Effects Kinky chemistry
SEM images of MWNTs dispersed on a V-ridged
Formvar substrate
D. Srivastava, J. D. Schall, D. W. Brenner, K. D.
Ausman, M. Feng And R. Ruoff, J. Phys. Chem. Vol.
103, 4330 (1999).
32
Molecular Machines and Laser Motor
J. Han, A Globus and R. Jaffe
33
Molecular Machines and Laser Motor
34
Computational Nanotechnology PSE
Nanomanipulation in Virtual World
Simulations
Experiments
Next Generation of Technology and Products
35
Comments

• compressed C nanotube nanomechanics in
  composites
• BN nanotube is almost as stiff as a C nanotube
  with even higher
• elastic limit
• anisotropic plastic collapse is observed
• nanostructured skin effect
• functionality of a smart material
• concept of a mechanical kink catalyzed chemistry
  of flexible
• nanoscale materials
• kinky chemistry
