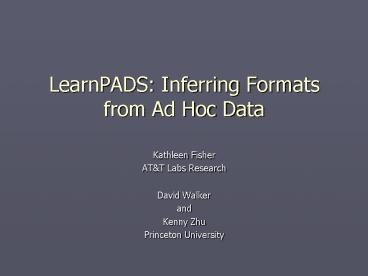

LearnPADS: Inferring Formats from Ad Hoc Data

1
LearnPADS Inferring Formats from Ad Hoc Data

• Kathleen Fisher
• ATT Labs Research
• David Walker
• and
• Kenny Zhu
• Princeton University

2
Ad Hoc Data

• Web server log
• 128.8.21.79 - - 15/Oct/1997203704 -0700 "GET
  /amnesty/images/rally4.jpg HTTP/1.0" 200 7352
• polux.entelchile.net - - 15/Oct/1997210207
  -0700 "GET /latinam/spoeadp.html HTTP/1.0" 200
  8540
• polux.entelchile.net - - 15/Oct/1997210229
  -0700 "GET /images/blkcnd2.gif HTTP/1.0" 200
  1082
• ws186.library.msstate.edu - - 15/Oct/199721024
  4 -0700 "GET /amnesty/usa/assault.html HTTP/1.0"
  200 4292
• ATT phone provisioning data
• 0100029529120100029529117100164960019100164
  9600271001649600291001649600IA02881001744
• 00IE02881001714400EDTF_CRTE1001908800EDTF_OS_
  11001995201161021309814261054589982
• 9152271915227110000no_ii152271EDTF_10SC
  1MF1FUNOEDTF_CRTE1001649600EDTF_OS_10100164
• NBA score sheet
• RNK NAME GP MPG PTS FGM-FGA
  FG 3PM-3PA 3P FTM-FTA FT
• 1 Kobe Bryant, LAL 77 40.8
  31.6 10.6-22.8 .463 1.8-5.2 .344
  8.7-10.0 .868
• 2 C. Anthony, DEN 65 38.2 28.9
  10.6-22.4 .476 0.6-2.3 .268 7.1-8.7
  .808
• Coral daemon log
• 1170306175.105858 "type""node",
  "nid""f9f0d5514ab26c84535acbf81e9d2488a038349a--2
  16.165.109.818089", "time"1170306175,
  "srvrpc"5000734, "getsrvrpc"1453263,
  "putsrvrpc"3365571
• 1170306175.105982 "type""cluster",
  "cid""0000000000000000000000000000000000000000",
  "level"0, "lsize"18, "size"214, "rtt"320058,
  "ctime"0

3
Automatically Generate Tools from Data!

• XML converter
• Data profiler
• Visualization tool
• More

4
Simple End-to-End

• Data Sources

Description
XML output
Punion payload Pint32 i PstringFW(3)
s2 Pstruct source \ payload
p1 , payload p2 \
0
24t
bar
end

0, 24
bar, end
foo, 16
5
Architecture
Raw Data
Format Inference
Tokenization
Structure Discovery
Format Refinement
Scoring Function
Data Description
6
Tokenization

• Parse strings convert to symbolic tokens
• Basic token set skewed towards systems data
• Int, string, date, time, URLs, hostnames
• A config file allows users to define their own
  new token types via regular expressions

0, 24
INT , INT
tokenize
bar, end
STR , STR
foo, 16
STR , INT
7
Structure Discovery Overview
struct
candidate structure so far
?
discover
INT , INT
,


?
?
STR , STR
INT
INT
STR , INT
sources
STR
STR
STR
INT
8
Structure Discovery Details

• Compute frequency distribution histogram for each
  token.
• (And recompute at every level of recursion).

INT , INT
STR , STR
STR , INT
percentage of sources
Number of occurrences per source
9
Structure Discovery Details

• Cluster tokens with similar histograms into
  groups
• Classify the groups into
• Structs Groups with high coverage low
  residual mass
• Arrays Groups with high coverage, sufficient
  width high residual mass
• Unions Other token groups
• Pick group with strongest signal to divide and
  conquer
• Struct involving comma, quote identified in
  histogram above

10
Format Refinement

• Reanalyze source data with aid of rough
  description and obtain functional dependencies
  and constaints
• Rewrite format description to
• simplify presentation
• merge rewrite structures
• improve precision
• add constraints (uniqueness, ranges, functional
  dependencies)
• fill in missing details
• find completions where structure discovery
  bottoms out
• refine base types (integer sizes, array sizes,
  seperators and terminators)
• Rewriting is guided by local search that
  optimizes an information-theoretic score

11
Scoring Function

• Finding a function to evaluate the goodness of
  a description involves balancing two ideas
• a description must be concise
• people cannot read and understand enormous
  descriptions
• a description must be precise
• imprecise descriptions do not give us much useful
  information
• Note the trade-off
• increasing precision (good) usually increases
  description size (bad)
• decreasing description size (good) usually
  decreases precision (bad)
• Minimum Description Length (MDL) Principle
• Normalized Information-theoretic Scores

Transmission Bits BitsForDescription(T)
BitsForData(D given T)
12
LearnPADS On the Web
http//www.padsproj.org
13
End
14
Related Work

• Most common domains for grammar inference
• xml/html
• natural language
• Systems that focus on ad hoc data are rare and
  those that do dont support PADS tool suite
• Rufus system 93, TSIMMIS 94, Potters Wheel 01
• Top-down structure discovery
• Arasu Garcia-Molina 03 (extracting data from
  web pages)
• Grammar induction using MDL grammar rewriting
  search
• Stolcke and Omohundro 94 Inducing probabilistic
  grammars...
• T. W. Hong 02, Ph.D. thesis on information
  extraction from web pages
• Higuera 01 Current trends in grammar induction
• Garofalakis et al. 00 XTRACT for infering DTDs

15
0, 24 foo, beg bar, end 0, 56 baz,
middle 0, 12 0, 33
