Title: Water Quality and Usage


1

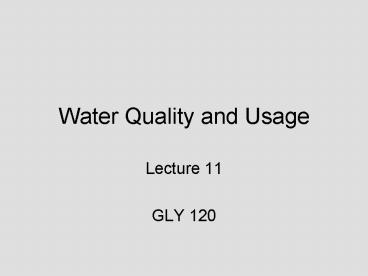

Water Quality and Usage
  • Lecture 11
  • GLY 120

2
  • Water is absolutely necessary to life and to all
    aspects of human use of the land
  • As a result, water resources are probably the
    most legislated and discussed commodity in the
    area of environmental law

3
Water Quality
  • Water quality can be thought of as
  • a measure of the suitability of water for a
    particular use
  • based on selected physical, chemical, and
    biological characteristics
  • Standards and guidelines are established to
    protect water for designated uses such as
  • Drinking
  • Recreation
  • Agricultural irrigation
  • Protection and maintenance of aquatic life
  • Standards for drinking-water quality ensure that
    public drinking-water supplies are as safe as
    possible

4
Water Quality Criteria
  • Water quality criteria are developed by
    scientists and provide basic scientific
    information about the effects of water pollutants
    on a specific water use
  • Are based on variables that characterize
  • the quality of water
  • and/or the quality of
  • the suspended particulate matter
  • the bottom sediment
  • and the biota

5
  • Many water quality criteria set a maximum level
    for the concentration of a substance in a
    particular medium (i.e. water, sediment, or
    biota) which will not be harmful when the
    specific medium is used continuously for a
    single, specific purpose
  • For some other water quality variables, such as
    dissolved oxygen, water quality criteria are set
    at the minimum acceptable concentration to ensure
    the maintenance of biological functions

6
  • Water quality criteria often serve as a baseline
    for establishing water quality objectives in
    conjunction with information on water uses and
    site-specific factors
  • Water quality objectives aim at
  • supporting and protecting designated uses of
    freshwater
  • while supporting and maintaining aquatic life
    and/or the functioning of aquatic ecosystems

7
  • The establishment of water quality objectives is
    not a scientific task but rather a political
    process that requires a critical assessment of
    national priorities.
  • Such an assessment is based on
  • economic considerations
  • present and future water uses
  • forecasts for
  • industrial progress
  • the development of agriculture
  • many other socio-economic factors

8
  • Targets to improve water quality are usually set
    at two levels.
  • The first represents the ultimate goal at which
  • no adverse effects on the considered human uses
    of the water would occur
  • the functions of the aquatic ecosystems would be
    maintained and/or protected

9
  • A second level is defined as a water quality
    target that should be reached within a fixed
    period of time.
  • This level is a result of a balance between
  • what is desirable from an environmental point of
    view
  • what is feasible from an economic and technical
    point of view.
  • This second level allows for a step-by-step
    approach that finally leads to the first level

10
  • Natural water quality varies from place to place,
    with the seasons, with climate, and with the
    types of soils and rocks through which water
    moves
  • When water from rain or snow moves over the land
    and through the ground, the water may
  • dissolve minerals in rocks and soil
  • percolate through organic material such as roots
    and leaves
  • react with algae, bacteria, and other microscopic
    organisms

11
  • When water evaporates from lakes and streams,
    dissolved minerals are more concentrated in the
    water that remains.
  • Each of these natural processes changes the water
    quality and potentially the water use.
  • In general, the common constituents are not
    considered harmful to human health
  • although some constituents can affect the taste,
    smell, or clarity of water

12
What is naturally in the water?
  • The most common dissolved substances in water are
    minerals or salts that, as a group, are referred
    to as dissolved solids
  • Dissolved solids include
  • common constituents such as
  • Calcium
  • Sodium
  • Bicarbonate
  • Chloride
  • plant nutrients such as
  • Nitrogen
  • Phosphorus
  • trace elements such as
  • Selenium
  • Chromium
  • Arsenic

13
  • Earths waters range widely in composition and in
    suitability for human usage
  • The most pure spring or rainwaters may have as
    little as 30 ppm (0.003) of minerals
  • Most saline waters may have nearly 300,000 ppm
    (30) dissolved substances
  • In general, waters with more than 500 ppm (0.05)
    dissolved salts are unsuitable for human
    consumption
  • Waters with more than 2000 ppm (0.2) dissolved
    solids are unsuitable for most other human uses

14
Federal Water Legislation
  • The federal government has long recognized the
    need to protect water resources from pollution
  • The ultimate goal of the legislation is to
    protect our water supply as well as the natural
    environment

15
  • Significant federal legislation includes
  • Federal Water and Pollution Control Act of 1956
  • This legislation had the objective of
  • enhancing the quality of water resources
  • and preventing, controlling, and abating water
    pollution
  • Water Quality Improvement Act of 1970
  • This legislation
  • expanded the power of the 1956 Act through
    control of oil pollution and hazardous pollutants
  • established research and development to eliminate
    acid mine drainage and pollution in the Great
    Lakes

16
  • Federal Water Pollution Control Act Amendments of
    1972
  • Also known as the Clean Water Act
  • The primary purpose of this legislation was to
    clean up the nations waters
  • Provided billions of dollars in federal grants
    for sewage treatment plants while encouraging
    innovative technology including alternative water
    treatment methods
  • Has resulted in tremendous improvement of water
    quality in the US

17
  • Comprehensive Environmental Response,
    Compensation, and Liability Act of 1980
  • Established the so-called Superfund to clean up
    hazardous waste disposal sites, reducing
    groundwater pollution
  • Hazardous and Solid Waste Amendments to the
    Resource Conservation and Recovery Act of 1984
  • Regulates underground storage tanks, thus
    reducing potential for gasoline and other liquid
    pollutants to damage groundwater resources

18
Water Use
19
Surface Water Laws
  • Riparian Doctrine
  • Prior Appropriation Doctrine

20
  • Riparian Doctrine
  • Prevailing water law in most states prior to 1850
  • Still used in most of the eastern half of the US
  • Riparian rights to water are restricted for the
    most part to owners of the land adjoining a
    stream or body of standing water

21
  • It is important to understand that a water right
    is not a legal title to the water
  • It is simply the legal right to use water in a
    manner dictated by law
  • Under the Riparian Doctrine, the right to use
    water is considered real property
  • But, the water itself does not belong to the
    property owner

22
  • Riparian water rights are considered property
    that enters into the value of the land and may be
    transferred, sold, or granted to other people
  • Landowners have the right to
  • make reasonable use of water on their land,
    provided the water is returned to its natural
    stream before it leaves the property
  • receive full flow of the stream undiminished in
    quantity and quality
  • But the property owner is not entitled to make
    withdrawals of water that infringe upon the
    rights of other riparian owners

23
  • Prior Appropriation Doctrine
  • Holds that prior usage is a significant factor
  • That is, the first person to divert water and use
    water from a surface water supply has the primary
    right and this may be passed on to successive
    owners
  • Furthermore, the right to use water is separate
    from other property rights
  • Appropriation water law is common in the western
    part of the US

24
Groundwater Law
  • Absolute Ownership Doctrine
  • Reasonable Use Doctrine
  • Correlative Rights Doctrine

25
Groundwater Law
  • Absolute Ownership Doctrine
  • In the US, laws governing groundwater use go back
    to the right of absolute ownership of the water
    beneath a particular persons land
  • Under this doctrine landowners could pump at will
    and take as much water as they wished
  • Even though that water was shared in a common
    groundwater aquifer with adjacent landowners

26
  • This type of arrangement works pretty well in a
    region with a wet, humid climate such as the
    eastern US, where there is usually plenty of
    water
  • However, even in these areas, problems may arise
    during drought conditions

27
  • Reasonable Use Doctrine
  • The amount of groundwater withdrawn is based upon
    the reasonable and beneficial purposes the water
    is used for on the land above the aquifer
  • Used mainly in the western US
  • Problems arise from
  • Establishing what is reasonable
  • The fact that the doctrine is applied through a
    system of laws regulating the issuing of pumping
    permits

28
  • Correlative Rights Doctrine
  • Developed in California
  • Recognizes a landowners right to use water
    beneath the land
  • Limits these rights by making provisions for
    other landowners whose property overlies a common
    groundwater source
  • All of the landowners have equal or correlative
    rights to a reasonable amount of groundwater when
    the water is applied to beneficial use of the
    land over the groundwater aquifer

29
  • Water is more widely used and more essential than
    any other resource
  • The amount consumed per capita varies widely as a
    function of each societys lifestyle and standard
    of living

30
Water Use
  • Water is more widely used and more essential than
    any other resource
  • The amount consumed per capita varies widely as a
    function of each societys lifestyle and standard
    of living

31
  • Definition of water usage terms
  • Withdrawal
  • The water physically extracted from its sources
  • Consumption
  • The withdrawn water that is no longer available
    because it has been
  • evaporated,
  • transpired,
  • incorporated into products or crops,
  • consumed by humans or livestock,
  • or otherwise held from returning to its source

32
  • Offstream uses
  • Remove or divert water from its source
  • Examples include water for
  • Irrigation
  • Livestock
  • Thermoelectric power generation
  • Industrial processes
  • Public supply
  • Consumptive use is an offstream use

33
  • Instream uses
  • Relates to the water that is used but not
    withdrawn from its source
  • Examples include use of river water for
  • Navigation
  • Hydroelectric power generation
  • Fish and wildlife habitat
  • Recreation

34
  • Total water usage in the US
  • In 2000, the total water usage was 5481 L (1448
    gal) per person per day for all usages
  • Total water use in the US has been declining
    since 1975
  • Due to
  • Efficiency and conservation efforts
  • Technological and economic changes

http//www.pacinst.org/press_center/usgs/
35
  • But the bad news is that pumping of groundwater
    has increased.
  • In too many places the underground aquifers are
    already over stressed.
  • Although groundwater is an important source of
    water
  • It is not unlimited
  • And it is not being used responsibly

36
  • Movement of Water to People
  • In our modern civilization, water is often moved
    vast distances from areas with abundant rainfall
    to areas of high usage
  • In California, demands are being made on northern
    rivers for reservoir systems supplying the cities
    in the southern part of the state
  • 2/3 of Californias runoff occurs north of San
    Francisco, where there is a surplus of water
  • 2/3 of Californias water use occurs south of San
    Francisco, where there is a deficit of water

37
Types of Water Usage
  • Irrigation
  • Agriculture is a major user of ground and surface
    water in the US
  • Accounts for 80 of the nations consumptive
    water use
  • Accounts for over 90 in many western states
  • Irrigated agriculture remains the dominant use of
    fresh water in the US
  • although irrigations share of total consumptive
    use has declined since 1970

38
  • Water management is an important element of
    irrigated crop production
  • Efficient irrigation systems and water management
    practices can
  • help maintain farm profitability
  • reduce the impact of irrigated production of
    offsite water quantity and quality

39
  • Industry and Mining
  • Water is said to be the lifeblood of industry
  • It is used as
  • a raw material
  • as a coolant
  • a solvent
  • a transport agent
  • and as a source of energy
  • For example, an automobile coming off the
    assembly line will have used at least 120,000 L
    of water
  • 80,000 L to produce the steel
  • 40,000 L more for the actual fabrication process
  • Many thousands more liters of water are involved
    in the manufacture of its plastic, glass, and
    fabric components

40
  • Industrial water use includes water for such
    purposes as processing, washing, and cooling in
    facilities that manufacture products
  • Major water-using industries include, but are not
    limited to
  • Steel
  • Chemical and allied products
  • Paper and allied products
  • Petroleum refining

41
  • For the year 2000, withdrawals were an estimated
    19,700 Mgal/d
  • Industrial withdrawals were about 5 of total
    withdrawals
  • Surface water was the source for 82 of total
    industrial withdrawals

42
  • Mining
  • Mining water use is classified as water used for
    extraction of minerals that may be in the form of
  • Solids such as coal, iron, and gravel
  • Liquids such as crude petroleum
  • Gases such as natural gas
  • For 2000, withdrawals were an estimated 3,490
    Mgal/d
  • Mining withdrawals were nearly 1 of total
    withdrawals
  • Groundwater was the source of 58 of total
    withdrawals for mining

43
  • Thermoelectric Power
  • Water for thermoelectric power is used in
    generating electricity with steam-driven turbine
    generators
  • The total quantity of water withdrawn for
    thermoelectric power in 2000 was an estimated
    195,000 Mgal/d
  • Thermoelectric power withdrawals accounted for
    48 of total water use
  • Surface water was the source for more than 99 of
    total thermoelectric power withdrawals

44
  • Hydroelectric Power
  • Hydroelectric energy is produced by the force of
    falling water
  • A dam holds back water, creating a reservoir of
    potential power
  • On the upper side of the dam, a gate is opened to
    let water surge through a tunnel leading to
    turbines
  • The water turns the turbines which in turn spin
    generators to generate electricity
  • The electricity is carried through cables to
    wherever its needed
  • Water uses for hydroelectric purposes in 2000
    were 3,290,000 Mgal/d
  • Hydroelectric power uses water instream is not
    included in total water withdrawal data

45
  • Trends in Water Use
  • Instream surface water use far exceeds offstream
    uses
  • A tremendous amount of water is used in the
    stream environment to
  • Generate electricity
  • Provide for navigation and recreation
  • Ensure fish and wildlife habitat

46
  • Both instream and offstream water uses increased
    until approximately 1975, and since then these
    uses have leveled off
  • Better water management and conservation has
    happened over the last 30 years

47
  • Irrigation needs and the thermoelectric industry
    are the big users of fresh water
  • Use of water by the public has increased steadily
    through the period
  • A trend presumably related to the steady increase
    in population of the country
  • The use of water by agriculture for irrigation
    leveled off in 1975 and has decreased slightly
    since then
  • Presumably related to efforts in water
    conservation

48
  • Industry, since 1980, has used significantly less
    fresh water
  • This is due, in part, to
  • New technologies that require less water
  • Improved plant efficiencies and increased water
    recycling

49
  • Trends from 1950-20000 for freshwater withdrawals
    by water-use category

50
Water Conservation
  • What can be done to use water more efficiently
    and reduce withdrawal and consumption?
  • Improved agricultural irrigation could reduce
    withdrawals by between 20-30
  • Such improvements include
  • Lined and covered canals that reduce seepage and
    evaporation
  • Computer monitoring and scheduling of water
    releases from canals
  • A more integrated use of surface water and
    groundwater
  • Not irrigating during the heat of the day
  • Improved irrigation systems
  • Better land preparation for water application

51
  • Withdrawal of water for domestic use may be
    substantially reduced at a relatively small cost
    with
  • More efficient bathroom and sink fixtures
  • Not watering lawns during the heat of the day
  • Drip irrigation systems for domestic plants

52
  • How people perceive the water supply is important
    in determining how water is used
  • People in Tucson, AZ, perceive the area as a
    desert
  • Cultivate many native plants such as cactus in
    their yards
  • Water use is 605 L (160 gal) per person per day
  • People in Phoenix, AZ, have been accused of
    having an oasis mentality
  • Have large lawns, mulberry trees, and high hedges
  • Use as much as 3780 L (1000 gal) per person per
    day

53
  • Water rates also make a difference
  • People in Tucson pay 75 more for water than do
    people in Phoenix, where the water supply is
    drawn from the Salt River rather than from
    groundwater (as it is in Tucson)
  • Water removal for steam generation of electricity
    could be reduced as much as 25-30 by using
    cooling towers designed to use less or no water
  • Manufacturing and industry might curb water
    withdrawals by
  • Increasing in-plant treatment and recycling water
  • Developing new equipment and processes that
    require less water

54
  • Groundwater is among the nations most important
    natural resources
  • It is the source of drinking water to more than
    140 million residents
  • or about half of the nations population
  • It is the primary source of drinking water for
  • nearly all of the rural populations
  • as well as for some of our largest metropolitan
    areas

55
  • Nearly 50 billion gallons of groundwater are used
    each day in support of the nations agricultural
    economy
  • The increasing hydrologic stresses and competing
    demands on our groundwater resources are making
    groundwater management increasingly complex

56
  • Water resource management needs a new philosophy
    that
  • considers geologic, geographic, and climatic
    factors
  • and utilizes creative alternatives
Write a Comment
User Comments (0)
About PowerShow.com
