ObjectOriented Design

1

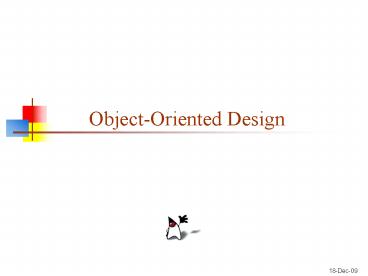

Object-Oriented Design
2
Objects have behaviors

• In old style programming, you had
• data, which was completely passive
• functions, which could manipulate any data
• In O-O programming, an object contains both data
  and methods that manipulate that data
• An object is active, not passive it does things
• An object is responsible for its own data
• It can protect that data (by marking it private)
• It can expose that data to other objects (by not
  marking it, or by marking it public)
• Data should not be exposed without good reason

3
Objects have state

• An object contains data
• The data represent the state of the object
• Data can also describe the relationship of the
  object to other objects
• Example a checkingAccount might have
• A balance (the internal state of the account)
• An owner (some object representing a person)
• An accountNumber (used as an ID number)
• An object should always protect its state
• Wouldnt it be nice to just add a few million
  dollars to your checking account balance?

4
Classes

• A class describes a set of objects
• The objects are called instances of the class
• A class describes
• Fields that hold the data for each object
• These data represent the state of the particular
  object
• Constructors that tell how to create a new object
  of this class
• Methods that describe the actions the object can
  perform

5
Example a Rabbit object

• You could create an object representing a rabbit
• It would have data
• How hungry it is
• How healthy it is
• Where it is
• And methods
• eat, run, dig, hide

6
One way to feed a rabbit

• class Rabbit int health 100 // percent
  int food 0 // range 0 (starved) to 10
  (full)
• Somewhere outside the Rabbit class...bugsBunny
  new Rabbit()bugsBunny.food bugsBunny.food
  1
• What this code is doing is reaching inside the
  Rabbit (ewww!) to put food into its stomach
• This is not a good Object-Oriented approach!

7
A better way to feed a rabbit

• class Rabbit int health 100 // percent
  private int food 0 // range 0 to 10
  public void eat() food food 1

• Somewhere outside the Rabbit class...bugsBunny
  new Rabbit()bugsBunny.eat()
• This is a proper Object-Oriented approach!

8
Object-Oriented design

• Here are basic precepts of O-O design
• Decide what kinds of objects you are going to
  have
• One way to do this is to write an English
  description of the program, then look for nouns
  in that description
• Determine how to represent the state of each
  object
• When you create objects, always create them in a
  valid state
• Make sure each method is guaranteed to leave its
  object in a valid state
• Determine the responsibilities of each kind of
  object
• In other words, what can it do? What are its
  actions (methods)?
• Make each object responsible for its own state
• The only way some other object can modify the
  state of this object is by calling some method of
  this object
• One way to ensure this is by making all fields of
  the object private
• Dont Repeat Yourself (the DRY principle)
• Every piece of data should have a single
  representation, in a single place
• Dont duplicate code--put it where it can be used
  by more than one object

9
Where no man has gone before...

• Lately Ive been working on a tiny (very tiny!)
  version of the old Star Trek computer game
• Im going to use this as an example of
  Object-Oriented design

---------------------------------
E
K B
B K
--------------------
-------------
K
K K
K K
---------------------------------

K
B
K
---------------------------------

• E represents the Enterprise
• The K are Klingon ships
• The B are starbases
• Asterisks are stars
• The galaxy is divided into quadrants
• The goal is to eliminate all the Klingons (before
  they eliminate you!)

10
Choosing the objects

• This is a little more realistic than the Rabbit
  example, but its still fairly easy to see what
  the objects are
• The Enterprise is an object (of type
  Enterprise)
• The Klingon ships, the starbases, and the stars
  are three more types of object
• There are some less obvious objects
• The Galaxy is an object
• But should it be composed of Quadrant objects?
• I didnt do it that way, and Im still not sure
  if I made the right decision
• Locations in the galaxy are objects
• Empty space locations are also objects

11
The Enterprise

• You, as captain of the Enterprise, play the game
  by giving commands to the Enterprise object
• The Enterprise has state
• How much energy it has
• How many photon torpedoes it has
• Its location in space
• The Enterprise has actions it can take
• It can move about in space, thus changing its
  location
• It can shoot photon torpedoes, thus reducing
  their number
• It can take a hit from a Klingon, thus reducing
  its energy
• It can shoot phaser beams, which (in this simple
  game) dont use energy
• The Enterprise is a good example of something
  that is readily modeled by an object

12
The Klingons

• Each Klingon is an object (an instance of the
  Klingon class), and has state
• How much energy it has
• How many photon torpedoes it has
• Its location in space
• Each Klingon has actions it can take
• It can shoot photon torpedoes
• It can take a hit from the Enterprise
• It can shoot phaser beams
• It cannot, however, move about in space
• Theres really not much difference between the
  Klingon ships and the Enterprise

13
The Starship class

• Remember the DRY principle--you dont want
  duplicate code in both the Enterprise and the
  Klingon classes
• To prevent code duplication, I made the
  Enterprise class and the Klingon class both
  subclasses of a Starship class
• The Enterprise and the Klingons inherit from
  Starship
• The fields energy, photonCount, and location
• The methods photonTorpedo, phaser, and takeHit
• The Enterprise has its own move method
• However, I never create a plain Starship
  object--I only create Enterprise and Klingon
  objects
• If I wanted to enforce this, I could make
  Starship an abstract class (just by putting the
  word abstract in front of class Starship)

14
Starbases

• When the Enterprise docks (moves adjacent to a
  Starbase), its energy and torpedoes are
  replenished
• You could make a case that restocking the
  Enterprise is something that should be done by
  the starbase, not by the Enterprise itself
• However...
• In general, an object should manage its own state
  (fields)
• We cannot easily make the state of the Enterprise
  available to Starbases while still hiding the
  state from other objects
• Since the Enterprise is responsible for moving
  itself, it is in the best position to know when
  it has moved adjacent to a Starbase
• My solution is to have a restock method in the
  Enterprise object, but only the Enterprise itself
  calls this method
• Such a method should probably be private

15
The galaxy

• The Galaxy is essentially--almost entirely--an
  array of objects (the Enterprise, Klingons, etc.)
• The most important responsibility of the Galaxy
  is to print itself, so that the player can see
  whats where
• Since its just an array, should we bother with
  making it into a class with the array as (almost)
  its only field?
• Yes! The Galaxy should be an object, since there
  is no other obvious place to put the printing
  responsibility
• Once youve made a Galaxy object, it quickly
  acquires other responsibilities
• Some object has to create all the other objects
  and place them in the Galaxy the obvious place
  to do this is in the initialization code of the
  Galaxy itself
• The Galaxy has to maintain its own array--moving
  and removing objects
• When the Enterprise moves, it updates its own
  Location, then tells the Galaxy where it has
  moved, so the Galaxy can keep track of it
• This violates the DRY principle (but I dont have
  a better solution)

16
Starbases, stars, and empty space

• Starbases and stars dont do much--so why are
  they objects?
• The Galaxy is an array of objects, which it needs
  to print
• Instead of a lot of if statements such as if
  (galaxyArrayrowcolumn instanceof Klingon)
  System.out.print("K") else if ...we can
  provide each class with a toString() method, and
  just say System.out.print(galaxyArrayrowcolu
  mn)
• This is also the reason for the EmptySpace class
• We could just leave those locations in the galaxy
  empty (null), but...
• Then our program would have to do a lot of
  checking for null
• We expose ourselves to a lot of
  NullPointerException problems
• Using a null object in this way is a handy
  trick to know

17
Cheating with boring objects

• Stars, Starbases, and empty space objects have
  no responsibilities other than providing a
  toString() method
• Why do we need more than one of each?
• Every Star will print as , and thats all it
  does
• A Star could have a Location, but thats not
  needed in my program
• In my code, I create one Star object and put it
  (actually, references to it) in multiple places
  in the Galaxy
• Remember, when you create an object with new,
  what you get back is actually a reference to the
  object
• There are two reasons for doing this
• Its more efficient (but this is hardly ever an
  actual issue!)
• It was less work to do it this way (the real
  reason)
• Starbases and empty space objects are handled
  the same way

18
Locations

• A Location object is just a pair of numbers row
  and column
• Starships have a Location
• Its okay to have tiny classes like this
• Again, though, they sometimes get extra
  responsibilities
• In my little Star Trek game, I need to know
• Whether two ships are in the same quadrant (so
  they can shoot at each other)
• How far apart two ships are (phaser fire
  attenuates with distance)
• For various reasons, I need to be able to
  translate between galaxy coordinates and
  quadrant coordinates
• The Location class is the right place for utility
  methods such as these

19
Oh, and one more class...

• In Java, execution begins with the method
  public static void main(String args)
• Where should this method be?
• Since its not appropriate for any of the other
  classes, I made a StarTrek class
• The main method creates the Galaxy, then calls a
  playGame method (also in the StarTrek class)
• The playGame method
• Prints an introduction to the game
• Gets commands from the user and calls the
  corresponding Enterprise methods
• Tells the Galaxy to print itself each time the
  Enterprise moves
• Calls an attack method for each Klingon in the
  same quadrant
• Tests if the game is over, and prints an
  appropriate message

20
Static variables

• One way for the game to end is for all the
  Klingons to be destroyed
• We can keep a count of how many Klingons there
  are (call it howMany)
• Where should we keep this count?
• The Galaxy is an obvious place, but...
• Klingons know when they are created and when they
  are destroyed, so keeping a count of them is most
  easily done in the Klingon class
• However...It doesnt seem right to have each
  Klingon keep its own count of how many Klingons
  are left
• Besides, this would violate the DRY principle
• Solution Make this variable a static variable
  (synonym class variable) of the Klingon class
  itself
• This means there is only one of it
• Its easily accessible by individual Klingon
  objects
• Its accessible from outside by saying
  (Klingon.howMany)
• Note the use of the Klingon class above, not an
  individual Klingon object

21
Static methods (getters and setters)

• Heres an easy way for the Enterprise to cheat
  Klingon.howMany 0
• Of course, you wouldnt write this in the game,
  right?
• But still, its good O-O practice for every class
  to protect itself from accidental or malicious
  modification
• Heres how to prevent this cheat
• Make the howMany variable private
• Provide a getter method (in the Klingon class)
  for it static int getHowMany() return
  howMany
• Dont provide a setter method for it static
  void setHowMany(int n) howMany n
• The getter method can easily be used from another
  class if (Klingon.getHowMany() 0) ...

22
What have we learned?

• The main points
• Objects have state, which they should protect and
  keep valid at all times
• Objects have responsibilities, which include
  updating their own states and asking other states
  to update theirs
• The DRY (Dont repeat yourself) principle Avoid
  redundant data and duplicate code
• Other points
• Inheritance (subclassing) is a good way to avoid
  duplicate code
• Abstract classes can be subclassed but cant
  themselves be instantiated
• Its okay to have small objects (but they may
  grow)
• Null objects are sometimes useful to avoid
  frequent tests for null
• Static variables and methods belong to the class
  itself, not to its objects, thus avoiding
  redundant (and possibly inconsistent) data
• Getter and setter methods can be used to protect
  an objects data

23
Refactoring

• I chose this program partly because it was pretty
  easy to see what the objects and their
  responsibilities should be
• You arent always this lucky!
• The first design is seldom the best design
• Good programmers are always willing to refactor
• Refactoring is changing the structure of a
  program without changing its behavior. For
  example,
• Renaming a method when you change what it does
• Moving a method to a more appropriate class
• Extracting part of a method and making it into a
  new method
• You should refactor when
• You see a better way of doing things
• You are about to add a feature, but the current
  design makes it hard
• You can be sure your refactoring doesnt break
  something!

24
Testing

• Conventional wisdom If it aint broke, dont fix
  it!
• Refactoring If you can make it better, fix it!
• When you change a program, you run the risk of
  breaking it, in unpredictable ways (hence the
  conventional wisdom)
• You can reduce the risk, and make the world safe
  for refactoring, if you have a good test suite
• Testing can be a lot of work, and most older
  programmers test their programs manually, and not
  very thoroughly
• The new testing framework, JUnit, that greatly
  eases the burden of testing
• Proper use of JUnit actually reduces the time it
  takes to produce a working program, and a much
  smaller percentage of that time is spent
  debugging
• Programs produced with JUnit have fewer bugs
• JUnit does take discipline at first (until you
  emotionally grasp the benefits)
• Unfortunately, JUnit is not part of any standard
  Java curriculum

25
Agile Programming

• In real life, the majority of programming
  projects fail!
• IMNSHO, the main reason is that they are too
  ambitious
• Instead of starting small and building up, they
  start with a grand plan that never gets
  realized
• Agile Programming says Do the simplest thing
  that can possibly work.
• That is, start with the smallest and simplest
  program that can do some of whats needed
• Make sure the program is correct (with JUnit
  testing)
• Never add features until all bugs have been fixed
• Theres a lot more to Agile Programming than this
  (such as, Refactor whenever you see a better
  way), but thats beyond the scope of this talk

26
The End
Don't ask for the information you need to do the
work ask the object that has the information to
do the work for you.
--Allen Holub
