Digital Forensics

1

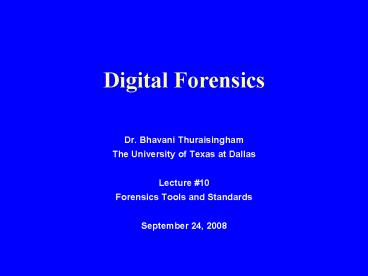

Digital Forensics

• Dr. Bhavani Thuraisingham
• The University of Texas at Dallas
• Lecture 10
• Forensics Tools and Standards
• September 24, 2008

2
Outline

• Review
• Forensics Tools
• Standards
• File Systems (Unix, Linux)
• Reference Chapters 7 and 8 of Textbook
• http//www.cftt.nist.gov/NISTIR_7490.pdf

3
Review

• Part 2
• Lecture 8 Windows File System and Forensics
• Lecture 9 Forensics Tools

4
Forensics Tools

• Hardware Forensics Tools
• Range from single purpose components (e.g.,
  devices) to complete systems (forensics
  workstations)
• Software Forensics Tools
• Analysis tools such ProDiscover and EnCase

5
Functions of Forensics Tools

• Acquisition
• Validation and Discrimination
• Extraction
• Reconstruction
• Reporting
• Comparison of some forensics tools are given on
  page 277 of Textbook (ProDiscover, AccessData,
  EnCase)

6
Functions of Forensics Tools - 2

• Acquisition
• Tools for data acquisition
• Physical data copy, logical data copy, data
  acquiring format, GUI acquisition
• Validation and Discrimination
• Integrity of the data, Also includes hashing,
  filtering, analyzing file headers
• Extraction
• Recovery task
• Data viewing, Keyword searching, Decompressing
• Reconstruction
• Reporting

7
Functions of Forensics Tools - 3

• Reconstruction
• Recreate the crime scene (suspect drive)
• Disk to disk copy, Image to disk copy, etc.
• Reporting
• Reporting generation tools help the examiner the
  prepare report
• Also helps to log reports

8
Software Tools

• Command line forensics tools
• Unix/Linux forensics tools
• SMART, Helix, Autopsy and Sleuth Kit
• GUI Forensics Tools
• Visualizing the data is important to understand
  the data

9
Hardware Tools

• Forensics workstations
• How to build a workstation
• What are the components
• How are the workstations connected in a lab
• How can distributed forensics be carried out
• Write Blockers
• Write blocker devoices to protect evidence disks
  (see the discussion in Chapter 4 under data
  acquisition)

10
Validating Forensics Tools

• NIST (National Institute of Standards and
  Technology) is coming up with standards for
  validation (will be discussed under standards)
• Establish categories for forensics tools,
  Identify forensics category requirements, Develop
  test assertions
• Identify test cases
• Establish test method
• Report test results
• NIST (National Institute of Standards and
  Technology) is coming up with standards for
  validation (will be discussed under standards
• Chapter 7 discusses validation protocols as well
  as some examination protocols

11
NIST Standards

• There are three digital forensics projects at the
  National Institute of Standards and Technology
  (NIST).
• These projects are supported by the U.S.
  Department of Justice's National Institute of
  Justice (NIJ), federal, state, and local law
  enforcement, and the National Institute of
  Standards and Technology Office of Law
  Enforcement Standards (OLES) to promote efficient
  and effective use of computer technology in the
  investigation of crimes involving computers.
• These projects are the following
• National Software Reference Library (NSRL)
• Computer Forensic Tool Testing (CFTT)
• Computer Forensic Reference Data Sets (CFReDS)

12
NSRL

• The NSRL is designed to collect software from
  various sources and incorporate file profiles
  computed from this software into a Reference Data
  Set (RDS) including hashes of known files created
  when software is installed on a computer. The law
  enforcement community approached NIST requesting
  a software library and signature database that
  meets four criteria
• The organizations involved in the
  implementation of the file profiles must be
  unbiased and neutral.
• Control over the quality of data provided by
  the database must be maintained.
• A repository of original software must be made
  available from which data can be reproduced.
• The database must provide a wide range of
  capabilities with respect to the information that
  can be obtained from file systems under
  investigation.

13
NSRL

• The primary focus of the NSRL is to aid computer
  forensics examiners in their investigations of
  computer systems.
• The majority of stakeholders are in federal,
  state and local law enforcement in the United
  States and internationally.
• These organizations typically use the NSRL data
  to aid in criminal investigations.

14
CFTT

• The goal of the CFTT project at NIST is to
  establish a methodology for testing computer
  forensic software tools through the development
  of general tool specifications, test procedures,
  test criteria, test sets, and test hardware. The
  results provide the information necessary for
  toolmakers to improve tools, for users to make
  informed choices about acquiring and using
  computer forensics tools, and for interested
  parties to understand the tools capabilities.
• The testing methodology developed by NIST is
  functionality driven. The activities of forensic
  investigations are separated into discrete
  functions, such as hard disk write protection,
  disk imaging, string searching, etc. A test
  methodology is then developed for each category.
  After a test methodology is developed it is
  posted to the web.

15
CFReDS

• The Computer Forensic Reference Data Sets
  (CFReDS) provide to an investigator documented
  sets of simulated digital evidence for
  examination.
• Since CFReDS has documented contents, such as
  target search strings seeded in known locations,
  investigators can compare the results of searches
  for the target strings with the known placement
  of the strings.
• Investigators can use CFReDS in several ways
  including validating the software tools used in
  their investigations, equipment check out,
  training investigators, and proficiency testing
  of investigators as part of laboratory
  accreditation.
• The CFReDS site is a repository of images. Some
  images are produced by NIST, often from the CFTT
  (tool testing) project, and some are contributed
  by other organizations.

16
CFReDS

• In addition to test images, the CFReDS site
  contains resources to aid in creating test
  images.
• These creation aids are in the form of
  interesting data files, useful software tools and
  procedures for specific tasks.
• The CFReDS web site is http//www.cfreds.nist.gov.

17
International Standards

• The Scientific Working Group on Digital Evidence
  (SWGDE) was established in February 1998 through
  a collaborative effort of the Federal Crime
  Laboratory Directors. SWGDE, as the U.S.-based
  component of standardization efforts conducted by
  the International Organization on Computer
  Evidence (IOCE), was charged with the development
  of cross-disciplinary guidelines and standards
  for the recovery, preservation, and examination
  of digital evidence, including audio, imaging,
  and electronic devices.
• The following document was drafted by SWGDE and
  presented at the International Hi-Tech Crime and
  Forensics Conference (IHCFC) held in London,
  United Kingdom, October 4-7, 1999. It proposes
  the establishment of standards for the exchange
  of digital evidence between sovereign nations and
  is intended to elicit constructive discussion
  regarding digital evidence. This document has
  been adopted as the draft standard for U.S. law
  enforcement agencies.
• http//www.fbi.gov/hq/lab/fsc/backissu/april2000/s
  wgde.htm

18
Macintosh Operating System (MAC OS X)

• Early MAC OS used HFS (Hierarchical file system)
  OS X uses HFS (optional) and also supports Unix
  File System
• OS 9 supports Volumes. Volume can be all or part
  of the storage media for hard disks
• Newer MACs booted can be booted from CD, DVD,
  Firewire drive. Older systems booted from hard
  drive
• Some forensics tools special for OS X. Some other
  Windows tools can also be used

19
Unix/Linux Operating System

• Everything is a file including disk drives,
  monitors, tape drives, network interface cards,
  etc.
• Unix has four components for its file system
• Boot block, superblock, Inode, data block
• Block is smallest disk allocation
• Boot clock has bootstrap code, superblock has
  system information, Inode is assignee to every
  file allocation unit., data blocks store
  directories and files
• Forensic examiner must understand the boot
  process of the operating system
• Disk partitions in Unix/Linus is very different
  from Windows. In Unix/Linux partitions are
  labeled as paths.

20
Summary of Lectures 8 and 9

• Overview of File Systems
• Examples Windows, MAC, Unix/Linux
• Three important concepts a forensics examiner
  should know
• The boot process, the file system, and the disk
  structures/partitions
• Tools exist for each of the operating systems
• Standards are emerging for conducting a forensics
  examination
• Need more standards for data formats, processes,
  metadata etc .

21
References

• Reference Chapters 7 and 8 of Textbook
• http//www.cftt.nist.gov/NISTIR_7490.pdf
