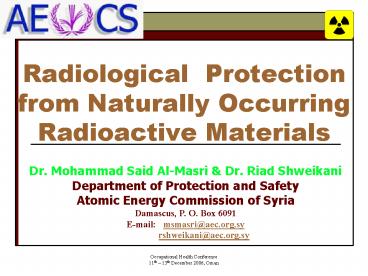

Radiological Protection from Naturally Occurring
Radioactive Materials
Dr. Mohammad Said Al-Masri Dr. Riad
Shweikani Department of Protection and
Safety Atomic Energy Commission of
Syria Damascus, P. O. Box 6091 E-mail
msmasri_at_aec.org.sy rshweikani_at_aec.org.sy
2
Radiation Sources in Oil and Gas Industry

• Radiation Sources in Oil Gas Industry
  (Overview)
• Origin of Naturally Occurring Radioactive
  Materials (NORM) in Oil and Gas Industry
• Where we can see NORM.

3
Radiation Sources in Oil and Gas Industry

• Sealed Sources
• Non-Destructive Testing (NDT)
• Gauges
• Well Loggings
• Open Sources
• Radioactive Tracers
• Naturally Occurring Radioactive Materials

4
Non-Destructive Testing

• ?-rays (60Co, 137Cs, )
• X-rays

5
Radiation Sources in Oil and Gas IndustrySealed
Sources Gauges
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
Radiation Sources in Oil and Gas IndustryOpen
Sources

• Radioactive Tracers
• Naturally Occurring Radioactive Materials (NORM)

11
(No Transcript)
12

• Origins of (TE)NORM in the Oil and Gas Industry

13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
Manual Cleaning
18
Production Water
19
(No Transcript)
20
Reported Activity Concentration Rangein EP
Waste Streams
21
Reported External Radiation Levels at Oil/Gas
Production Facilities
22
Risks Arising from Radiation Exposure And What
can we Do?
23
Radiation at Workplaces

• Radiation is invisible, tasteless, and odorless,
  and, as a result, is commonly overlooked as a
  potential hazard at workplaces.
• Therefore, workplaces need to determine whether a
  radiation problem exists and,
• If it does, take appropriate safety precautions
  to prevent or limit workers exposure to
  radiation.

24
Types of radiation

• Ionizing removes electrons from atoms
• Particulate (alphas and betas)
• Waves (gamma and X-rays)
• Non-ionizing (electromagnetic) can't remove
  electrons from atoms
• infrared, visible, microwaves, radar, radio
  waves, lasers

25
Background Radiation

• We all receive background radiation whether we
  are occupationally exposed or not

26
Why is radon a problem?

• Radon is an inert gas and is not poisonous.
• However it is a problem because
• it is radioactive
• it cannot be seen, heard or felt
• it is all around us
• Radon is the second most significant cause of
  lung cancer (after smoking).

27
NORM and Radon

• NORM may produce the radioactive gas radon
• Usually this is only significant problem in
  workplaces with poor ventilation.
• Radon entering poorly ventilated buildings or
  underground areas such as caves and mines may
  reach potentially dangerous concentrations.

28

• Regulation Related to Radiation Exposures at
  workplaces

29
NORM Exposure Criteria

• The basic principle is that
• The same radiation exposure criteria, applied to
  any other radiation activities, should be applied
  to workers exposed to NORM

30
International Regulations

• The International Commission on Radiological
  Protection (ICRP)
• has established fundamental radiation protection
  principles and recommendations. (ICRP Publication
  60).
• The International Atomic Energy Agency (IAEA)
• has established The International Basic Safety
  Standards for Protection Against Ionising
  Radiation and for the Safety of Radiation sources
  (BSS)
• Primary Responsibility for Radiation Safety rests
  on licensees and employers of occupationally
  exposed workers

31
Licensees and employers shall

• establish radiation safety objectives
• develop, implement and document a radiation
  safety program
• ensure compliance with the requirements set out
  in the legislation and the regulations.

32
Principles of radiation Protection
33
The General Goal of Radiation Protection

• 1- Justification
• positive net benefit.
• 2- Optimization
• be kept as low as reasonably achievable
• (The ALARA principle)
• 3- Dose Limitation
• dose limits or control of risk

34
Dose limitation

• Dose limits
• are aimed at ensuring that no individual is
  exposed to radiation risks that are judged to be
  unacceptable
• differ depending on whether the exposure is to
  workers or to members of the public
• do not apply to medical exposure where the issue
  is the intended result in terms of diagnosis or
  treatment.

35
Regulatory Status

• Recommended exposure limits are set by ICRP and
  IAEA to be
• Occupational exposure quidlines are 100 mSv in 5
  years (average, 20 mSv per year) with a limit of
  50 mSv in any single year.
• General public the standard is 1 mSv per year.
• (Natural background radiation is approximately 3
  mSv/year.)

36
Comparison of Risks of (Working) Life
(fatalities per million per year)
Exempt level (10 mSv) 0.5 Clothing
Footwear 3.3 Timber Furniture 10 Textile
s 36 Accidents at Work (US) 50 Public
limit (1 mSv/a) 50 Metal Manufacture 59 Ac
cidents at Home (US) 100 Natural Background
(2.7 mSv/a) 135 Construction 200 Road
Accidents (US) 200 Coal Mining 250 Radiat
ion worker limit (20 mSv/a) 1,000 Deep Sea
Fishing 2,000 Smoker (1 p/d) 5,000
37
Radiation Risks From NORM

• Radiation is potentially harmful to us and the
  type and extent of the radiation damage depends
  on two things
• where the radiation hits
• the size of the dose and how fast it is
  delivered.

38
Radiation Risks From NORM
Acute
a large amount of dose is received over a short
period of time. Also referred to as a
short-term exposure.
Chronic
repeated exposure to low doses of radiation.
39
When can an acute injury occur?

• 100 mSv Observable damage to cells
• 250 mSv Measurable changes to the blood
• 1 Sv will kill nobody
• 2 Sv may kill 5 of the people exposed
• 9 Sv will kill about 95 to 100 of those exposed
• 10 Sv will kill about 99 to 100 of those exposed

40
Can NORM cause these injuries?
No, it can't.
41
Types of Radiation Exposure and Radiation
protection Techniques
42
What are the hazards ?

• External exposure
• Internal exposure
• Spread of contamination

43
External Radiation Exposure

• From Sealed and unsealed Sources

44
Internal Radiation Exposure
Open Sources
45
Reduction of External Dose

• Minimize the time spent near the radiation source
• Maximize the distance away from the source
• Make use of available shielding
• Minimize the quantity of radioactive material
  handled

46
Internal Radiation

• Small quantities of radioactive material can give
  an appreciable dose inside the body
• Protection involves preventing radioactive
  material from entering the body.

47
Reduction of Internal Dose

• Minimize and control contamination
• Use proper protective clothing
• Do not eat, drink or smoke in contamination areas
• Check yourself for contamination prior to leaving
  a potentially contaminated area

48
Management and Workers Responsibilities toward
Radiation Protection and Safety
49
Management responsibilities

• Licensees and employers have primary
  responsibility for the protection of workers and
  must ensure that-
• dose limits are not exceeded and safety is
  optimised
• workers, other than those who are occupationally
  exposed, are protected as if they were members
  of the public
• workers are informed of their obligations and
  responsibilities for their own protection and
  that of others
• safety related reports from workers shall be
  recorded and appropriate remedial action be taken
  by the licensee or employer.

50
Conditions of Service

• Extra salary or other benefits are not to be used
  as substitutes for proper protection and safety.
• Female worker are instructed to notify the
  employer of pregnancy.
• Employers shall adapt working conditions as may
  be necessary for the protection of embryo or
  foetus.
• Pregnancy is not a reason to exclude a female
  worker from work.

51
Local Rules and Supervision

• The legal person (licensee / employer) shall
  provide-
• information to workers on perceived health risks
  including information to female workers on
  radiation and pregnancy
• information, instructions and training on
  emergency procedures.

52
Personal Protective Equipment and Monitoring

• Adequate and appropriate protective equipment
  shall be made available where necessary
• arrange for the assessment of occupational
  exposures
• be alert to potential exposures and contamination.

53
Health Surveillance

• The health surveillance of radiation workers-
• is defined as medical supervision intended to
  ensure the initial and continuous fitness of
  workers for their intended task.
• is based on general principles of occupational
  health
• should be designed to assess the initial and
  continuing fitness of workers for their intended
  tasks.

54
Records of worker exposure

• Records are to
• include the nature of work and the periods of
  employment
• include doses, intakes received under normal work
  conditions
• include doses, intakes in emergency intervention
  or accidents

55
Responsibilities of Workers

• Workers shall be directed to
• follow applicable rules and procedures for
  protection and safety
• appropriately use the monitoring devices,
  protective equipment and protective clothing
  provided by the employer / licensee
• co-operate with the employer with respect to
  protection and safety and the operation of
  radiological health surveillance and dose
  assessment programs

56
Responsibilities of Workers

• Workers shall be directed to
• accept information, instruction and training
  concerning protection and safety
• report to the employer, RPO or licensee any
  observed circumstances that could adversely
  affect compliance with regulations or safety.

57
Summary

• Any exposure to ionizing radiation may be
  potentially harmful to health.
• Everyone is subjected to a significant background
  exposure,
• Even doses from occupational practices smaller
  than background are unjustified if there is no
  associated benefit, or if they can be readily
  avoided.
• Why take risks
• if they can be easily avoided?

58
