Nairobi, Kenya

1

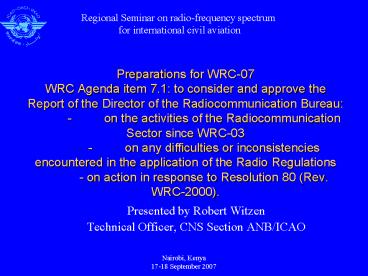

Preparations for WRC-07WRC Agenda item 7.1 to
consider and approve the Report of the Director
of the Radiocommunication Bureau - on the
activities of the Radiocommunication Sector since
WRC-03 - on any difficulties or inconsistencies
encountered in the application of the Radio
Regulations - on action in response to
Resolution 80 (Rev. WRC-2000).
Regional Seminar on radio-frequency spectrum for
international civil aviation

• Presented by Robert Witzen
• Technical Officer, CNS Section ANB/ICAO

2
Part 2 Experiences In The Application Of The
Radio Regulatory Procedures And Other Related
Matters

• Summary of errors, inconsistencies and obsolete
  parts of the Radio Regulations

3
Errors in the Radio Regulations

• Appendix 27
• 27/56 In the aeronautical mobile (R) service the
  use of emissions such as those listed below is
  permissible subject to compliance with the
  special provisions applicable to each case and
  provided that such use does not cause harmful
  interference to other users of the channel
  concerned.

4
Errors in the Radio Regulations

• 328.6-335.4 MHz
• AERONAUTICAL RADIONAVIGATION 5.258 5.258
  5.259

Bangkok, Thailand 8-10 January 2003
5
Outdated provisions

• 5.77 Different category of service  in
  Australia, China, the French Overseas Territories
  of Region 3, India, Indonesia (until 1 January
  2005), Iran (Islamic Republic of), Japan,
  Pakistan, Papua New Guinea and Sri Lanka,
  the  allocation of the band 415-495 kHz to the
  aeronautical radionavigation service is on a
  primary basis. Administrations in these countries
  shall take all practical steps necessary to
  ensure that aeronautical radionavigation stations
  in the band 435-495 kHz do not cause interference
  to reception by coast stations of ship stations
  transmitting on frequencies designated for ship
  stations on a worldwide basis (see
  No. 52.39).     (WRC-2000)No proposals from these
  States to remove their name
• The proposal to remove Indonesia from this
  footnote does not affect the AFI Region ICAO has
  no opinion on this proposal

6
Outdated provisions

• 5.203 In the band 136-137 MHz, existing
  operational meteorological satellites may
  continue to operate, under the conditions defined
  in No. 4.4 with respect to the aeronautical
  mobile service, until 1 January 2002.
  Administrations shall not authorize new frequency
  assignments in this band to stations in the
  meteorological-satellite service.     (WRC-97)
• The proposal to delete this provision from the
  radio Regulations is supported by ICAO

Nairobi, Kenya 17-18 September 2007
7
Outdated provisions

• 5.203A Additional allocation  in Israel,
  Mauritania, Qatar and Zimbabwe, the band 136-137
  MHz is also  allocated to the fixed and mobile,
  except aeronautical mobile (R), services on a
  secondary basis until 1 January 2005.     (WRC-97)

• The proposal to delete this provision from the
  Radio Regulations is supported by ICAO

Nairobi, Kenya 17-18 September 2007
8
Outdated provisions

• 5.203B Additional allocation  in Saudi Arabia,
  United Arab Emirates, Oman and Syrian Arab
  Republic, the band 136-137 MHz is also allocated
  to the fixed and mobile, except aeronautical
  mobile, services on a secondary basis until
  1 January 2005.     (WRC-03)
• The proposal to delete this provision from the
  Radio Regulations is supported by ICAO

Nairobi, Kenya 17-18 September 2007
9
Outdated provisions

• The proposals to remove 5.203 (meteorological
  satellites), 5.203A (fixed and mobile, except
  aeronautical mobile (R)) and 5.203B (fixed and
  mobile, except aeronautical mobile) will increase
  the availability of the band 136-137 MHz for the
  aeronautical mobile (R) service
• Opinion of countries mentioned in 5.203A and
  5.203 B important
• 136-137 MHz prime candidate for global
  implementation of air-ground data links

Nairobi, Kenya 17-18 September 2007
10
Provisions requiring update

• Current provision
• 5.362B Additional allocation  The band
  1 559-1 610 MHz is also allocated to the fixed
  service on a primary basis until 1 January 2005
  in Germany, Armenia, Azerbaijan, Belarus, Benin,
  Bosnia and Herzegovina, Bulgaria, Spain, the
  Russian Federation, France, Gabon, Georgia,
  Greece, Guinea, Guinea-Bissau, Hungary,
  Kazakhstan, Lithuania, Moldova, Mongolia,
  Nigeria, Uganda, Uzbekistan, Pakistan, Poland,
  Kyrgyzstan, the Dem. Peoples Rep. of Korea,
  Romania, Senegal, Swaziland, Tajikistan,
  Tanzania, Turkmenistan and Ukraine, and until 1
  January 2010 in Saudi Arabia, Cameroon, the
  Libyan Arab Jamahiriya, Jordan, Kuwait, Lebanon,
  Mali, Mauritania, the Syrian Arab Republic and
  Tunisia. After these dates, the fixed service may
  continue to operate on a secondary basis until
  1 January 2015, at which time this allocation
  shall no longer be valid. Administrations are
  urged to take all practicable steps to protect
  the radionavigation-satellite service and the
  aeronautical radionavigation service and not
  authorize new frequency assignments to
  fixed-service systems in this band.     (WRC-03)

Nairobi, Kenya 17-18 September 2007
11
Provisions requiring update

• Proposed new provision Countries having fixed
  service on a primary basis until 1 January 2005
• 5.362BB Additional allocation  The band
  1 559-1 610 MHz is also allocated to the fixed
  service on a secondary basis until 1 January 2015
  in Germany, Armenia, Azerbaijan, Belarus, Benin,
  Bosnia and Herzegovina, Bulgaria, Spain, the
  Russian Federation, France, Gabon, Georgia,
  Greece, Guinea, Guinea-Bissau, Hungary,
  Kazakhstan, Lithuania, Moldova, Mongolia,
  Nigeria, Uganda, Uzbekistan, Pakistan, Poland,
  Kyrgyzstan, the Dem. Peoples Rep. of Korea,
  Romania, Senegal, Swaziland, Tajikistan,
  Tanzania, Turkmenistan and Ukraine.
  Administrations are urged to take all practicable
  steps to protect the radionavigation-satellite
  service and the aeronautical radionavigation
  service and not authorize new frequency
  assignments to fixed-service systems in this
  band.     (WRC-03)
• This changes the note in the current 5.362B
  after these date the fixed service may continue
  to operate on a secondary basis into an
  allocation on a secondary basis.
• For clarity reasons, ICAO can support the proposal

Nairobi, Kenya 17-18 September 2007
12
Provisions requiring update

• Proposed new provision Countries having fixed
  service on a primary basis until 1 January 2005
• 5.362BA Additional allocation  The band
  1 559-1 610 MHz is also allocated to the fixed
  service on a primary basis until 1 January 2010
  in Saudi Arabia, Cameroon, the Libyan Arab
  Jamahiriya, Jordan, Kuwait, Lebanon, Mali,
  Mauritania, the Syrian Arab Republic and Tunisia.
  After this date, the fixed service may continue
  to operate on a secondary basis until 1 January
  2015, at which time this allocation shall no
  longer be valid. Administrations are urged to
  take all practicable steps to protect the
  radionavigation-satellite service and the
  aeronautical radionavigation service and not
  authorize new frequency assignments to
  fixed-service systems in this band.     (WRC-03)
• For clarity reasons, ICAO can support the
  proposal

Nairobi, Kenya 17-18 September 2007
13
Outdated provisions

• 5.433 In Regions 2 and 3, in the band 3 400-3 600
  MHz the radiolocation service is allocated on a
  primary basis. However, all administrations
  operating radiolocation systems in this band are
  urged to cease operations by 1985. Thereafter,
  administrations shall take all practicable steps
  to protect the fixed-satellite service and
  coordination requirements shall not be imposed on
  the fixed-satellite service.
• The proposal to delete this provision from the
  Radio Regulations is supported by ICAO. This band
  is not known as being used for aeronautical
  radionavigation systems (such as radar systems)
  for civil aviation.

Nairobi, Kenya 17-18 September 2007
14
Outdated provisions

• 5.476 In the band 9 300-9 320 MHz in the
  radionavigation service, the use of shipborne
  radars, other than those existing on
  1 January 1976, is not permitted until
  1 January 2001.
• The proposal to delete this provision from the
  Radio Regulations is supported by ICAO.
• Limited extension through a country footnote may
  be required in some countries

Nairobi, Kenya 17-18 September 2007
15
Provisions requiring update

• Wording in a number of footnotes
• and shall not constrain the development and
  use of the PPP service in the band yyy-zzz MHz
• Considered by the Bureau as an operational
  provision that not defines the status between
  services.
• Could be replaced with shall not cause harmful
  interference to nor claim protection from ..
  This would be sufficient to define the status
  between two services.

Nairobi, Kenya 17-18 September 2007
16
Provisions requiring update 1545-1555 MHz and
1646.5-1656.5 MHz

• Additional allocation to the aeronautical mobile
  (R) service
• 5.357 Transmissions in the band 1 545-1 555 MHz
  from terrestrial aeronautical stations directly
  to aircraft stations, or between aircraft
  stations, in the aeronautical mobile (R) service
  are also authorized when such transmissions are
  used to extend or supplement the
  satellite-to-aircraft links.
• 5.376 Transmissions in the band 1 646.5-1 656.5
  MHz from aircraft stations in the aeronautical
  mobile (R) service directly to terrestrial
  aeronautical stations, or between aircraft
  stations, are also authorized when such
  transmissions are used to extend or supplement
  the aircraft-to-satellite links.

Nairobi, Kenya 17-18 September 2007
17
Provisions requiring update 1545-1555 MHz and
1646.5-1656.5 MHz

• Radio Regulations Board (RRB)considered these
  provisions as an additional allocation to the
  aeronautical mobile (R) service.
• Proposal to incorporate the ruling of the RRB
  into the Radio Regulations as follows
• MOD 5.357 Additional allocation The band
  1 545-1 555 MHz is also allocated to the
  aeronautical mobile (R) service on a primary
  basis. The use of this band in the aeronautical
  mobile (R) service is limited to transmissions
  from terrestrial aeronautical stations directly
  to aircraft stations, or between aircraft
  stations to extend or supplement the
  satellite-to-aircraft links.
• (continued)

Nairobi, Kenya 17-18 September 2007
18
Provisions requiring update 1545-1555 MHz and
1646.5-1656.5 MHz (2)

• MOD 5.376 Additional allocation The band
  1 646.5-1 656.5 MHz is also allocated to the
  aeronautical mobile (R) service on a primary
  basis. The use of this band in the aeronautical
  mobile (R) service is limited to transmissions
  from aircraft stations directly to terrestrial
  aeronautical stations, or between aircraft
  stations to extend or supplement the
  aircraft-to-satellite links.
• The amendment will clarify the meaning of 5.357
  and 5.376
• Reflects a situation already existing in some
  countries
• AM(R)S in these bands may add to flexible system
  design
• Supported by ICAO

Nairobi, Kenya 17-18 September 2007
19
Provisions requiring update 1610-1626.5 MHz

• 5.366 The band 1 610-1 626.5 MHz is reserved on a
  worldwide basis for the use and development of
  airborne electronic aids to air navigation and
  any directly associated ground-based or
  satellite-borne facilities. Such satellite use is
  subject to agreement obtained under No. 9.21.
• The RRB established a rule of procedure
  considering this an additional allocation to the
  radionavigation-satellite service.
• The amendment will clarify the meaning of 5.357
  and 5.376
• Reflects a situation already existing in some
  countries
• AM(R)S in these bands may add to flexible system
  design
• Supported by ICAO

Nairobi, Kenya 17-18 September 2007
20
Provisions requiring update 1610-1626.5 MHz (2)

• Proposed amendment
• MOD 5.366 Additional allocation The band
  1 610-1 626.5 MHz is also allocated to the
  aeronautical radionavigation-satellite service on
  a primary basis. The use of this band in the
  aeronautical radionavigation-satellite service is
  limited to airborne electronic aids to air
  navigation and any directly associated
  ground-based or satellite-borne facilities and is
  subject to agreement obtained under No. 9.21.
• This amendment, which reflects current practice
  by the Bureau, can be supported by ICAO.

Nairobi, Kenya 17-18 September 2007
21
Regional Seminar on radio-frequency spectrum for
international civil aviation

• END
