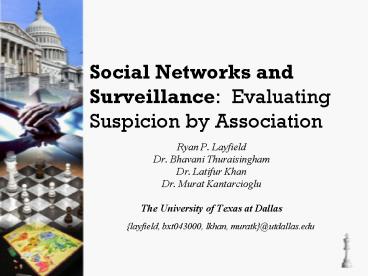

Social Networks and Surveillance: Evaluating Suspicion by Association

1
Social Networks and Surveillance Evaluating
Suspicion by Association

• Ryan P. Layfield
• Dr. Bhavani Thuraisingham
• Dr. Latifur Khan
• Dr. Murat Kantarcioglu
• The University of Texas at Dallas

layfield, bxt043000, lkhan, muratk_at_utdallas.edu
2
Overview

• Introduction
• Our Goal
• System Design
• Social Networks
• Threat Detection
• Correlation Analysis
• The Experiment
• Setup
• Current Results
• Issues
• Future Work

3
Introduction

• Automated message surveillance is essential to
  communication monitoring
• Widespread use of electronic communication
• Exponential data growth
• Impossible to sift through all by hand
• Going beyond basic surveillance
• Identifying groups rather than individuals
• Monitoring conversations rather than messages

4
Our Goal

• Design new techniques and apply existing
  algorithms to
• Create a machine-understandable model of existing
  social networks
• Identify abnormal conversations and behavior
• Monitor a given communications system in
  real-time
• Continuously learn and adapt to a dynamic
  environment

5
System Design

• Three major components
• Social Network Modeler
• Initial Activity Detector
• Correlated Activity Investigator

6
Social Networks

• Individuals engaged in suspicious or undesirable
  behavior rarely act alone
• We can infer than those associated with a person
  positively identified as suspicious have a high
  probability of being either
• Accomplices (participants in suspicious activity)
• Witnesses (observers of suspicious activity)
• Making these assumptions, we create a context of
  association between users of a communication
  network

7
Social Networks

• Within our model
• Every node is a unique user
• Every message creates or strengthens a link
  between nodes
• Over time, the network changes
• Frequent communication leads to stronger links
• Intermittent messaging implies weakening social
  ties
• The strength of the link implies how strong an
  association between individuals is
• From this data, we can theoretically identify
• Hubs
• Groups
• Liaisons

8
Social Networks
9
Threat Detection

• Every message sent is scrutinized in the interest
  of identifying suspicious communication
• Keywords analysis
• Prior context (i.e. previous message content)
• When a detection algorithm yields a strong
  result, a token is created
• The token is created at the origin and passed to
  the recipient(s)
• Existing tokens, if any, are cloned instead
• The result is a web that potentially reflects the
  dissemination of suspicious information activity

10
Correlation Analysis

• Future messages with similar suspicious topics
  are not always identifiable with the same
  initial techniques
• Quick replies
• Pronoun use
• Assumption that recipient is aware of topic
• If a token is present at the sender when a
  message is sent
• Message token is associated with and new message
  are analyzed
• If analysis yields a strong match, the token is
  further cloned and passed to recipient

11
The Experiment

• A rare set of words shared between two or more
  messages are candidates for keyword analysis, but
  they are not always easily sifted from noise
• Noise within text-based messages comes in a
  variety of forms
• Misspelled words
• Unusual word choice
• Incompatible variations of the same language
  (i.e. British vs. American English)
• Unexpected language
• However, we do not want to eliminate potential
  keywords
• Document names
• Terminology specific to a subject
• Buzz words

12
The Experiment

• We proposed an experiment that attempts to
  eliminate false positives due to noisy data while
  strengthening and expanding our correlation
  techniques

13
Setup

• Tools
• Running word rank database
• Implementation of word set theory infrastructure
• JAMA Matrix Library
• Singular Value Decomposition
• Our Approach
• Apply SVD noise filtering based on 100 messages
• Analyze word frequency correlation between
  current message and prior suspicious messages
• Generate a score based on the results

14
Setup

• Construct a matrix based on the last 100 messages

messages
More common
words
Less common
15
Setup

• Decompose and rebuild

VT
?
U
A
Eliminate weak singular values
16
Setup
Pulled from messages j and k
Raw total score for word wi
Pulled from running word database
Counts only intersection of words
Predefined fixed threshold
17
Current Results

• Method is not currently accurate
• Large fluctuations
• Correlation easily swayed by plethora of common
  words
• Uncommon words not given enough weight

18
Current Results
1000 messages evaluated, first 100 used to seed
word ranks.
19
Issues

• Word frequencies fluctuate wildly during
  beginning of experiment (0.0 10.0)
• Extreme cost for current construction methods and
  computation
• Filtering context limited to recent global
  history
• Affected by large bodies of text

20
Future Work

• Tap potential of existing matrix for further
  analysis
• Adaptive filtering feedback algorithms
• Speed improvements to accommodate real-time
  streams
• Flexible communication platform monitoring
• Addition of pipe architecture for modular threat
  detection and correlation
