Creating Class Behaviors

1

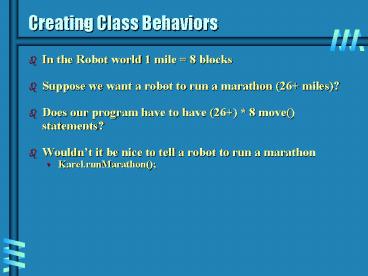

Creating Class Behaviors

• In the Robot world 1 mile 8 blocks
• Suppose we want a robot to run a marathon (26
  miles)?
• Does our program have to have (26) 8 move()
  statements?
• Wouldnt it be nice to tell a robot to run a
  marathon
• Karel.runMarathon()

2
Building a Marathon-Running Robot

• Let us build a robot to run a marathon
• If we define a moveMile() behavior as eight
  move() messages
• we can reduce the size of our program by (26)
  8 / 8 or down to 26 instructions
• Can we do better than these 26 instructions?
• we can specify as many behaviors as we need for a
  class of robots
• Can we think of other behaviors to further
  simplify the problem?
• HAS A relationships
• Marathon Robot HAS A move mile behavior or
  characteristic (that is different from a ur-Robot)

3
Defining New Classes of Robots

• To build a new class of robots, we include a
  class specification in a new file of our program
• The general form of this specification
• class ltnew-class-namegt extends ltold-class-namegt
• ltlist-of-new-methodsgt

4
Specification Details

• Reserved Words and symbols
• class
• extends
• braces
• We must replace the elements in angle brackets lt
  gt appropriately
• ltnew-class-namegt what do we call this new type of
  robot?
• ltold-class-namegt what old robot to add features
  to?
• ltlist-of-new-methodsgt list of new features

5
Naming Things

• In developing the names for robots and new
  methods
• any uppercase and lowercase letters A..Z, a..z,
  digits 0..9, and underscore _ can be used
• unique name to the program
• does not match any reserved words
• must begin with a letter
• typically upper case for a class
• lower case for a method or instruction

6
Specifying a Marathon Robot

• class MarathonRobot extends Robot
• void moveMile()
• // instructions omitted for now
• // other instructions

7
extends Robot?

• class MarathonRobot extends Robot
• we indicate the MarathonRobot inherits all the
  capabilities of the Robot class
• in other words MarathonRobot knows all about
  move(), turnLeft(), pickBeeper(), putBeeper(),
  and shutOff()
• Robot is the base class of MarathonRobot
• MarathonRobot is a derived class of Robot
• IS-A relationship
• MarathonRobot IS A ur-Robot

8
Defining new methods in a program

• Download Stair SweeperDemo
• Verify this program is correct by tracing the
  code before running it

9
Robot Program Format

• We use at least two files in creating new robots
  and robot methods
• The Main Class file which is where the robot is
  constructed and given its task
• The Main Class is defined, the world is accessed,
  the speed is set
• The robot is constructed and receives its task
  instructions in the task() method
• The second file contains the description of the
  new robot, and the definition of its methods
• A constructor which describes how we build the
  robot
• And the definitions of the new instructions

10
Main Class

• public class Main implements Directions
• public static void task()
• Stair_Sweeper Karel new Stair_Sweeper(1, 1,
  East, 0)
• Karel.climbStair()
• Karel.pickBeeper()
• // other instructions
• Karel.turnOff()
• // Main entry point
• static public void main(String args)
• World.setDelay(20)
• World.readWorld("stairs.txt")
• task()

11
Class Header Main

• public class Application implements Directions
• // details of the class specification here
• Name of class will be same as the name of the
  file, with a .java suffix
• This class is contained in the file Main.java
• Capitalization counts
• Directions is an interface that is is implemented
  by Main
• In other words Main fleshes out the details of
  Directions
• Main has the remaining details specific to the
  particular task the robot has to perform

12
StairSweeper class

• class Stair_Sweeper extends Robot
• // constructor
• public Stair_Sweeper(int street, int avenue,
• Directions.Direction dir, int count)
• super(street, avenue, dir, count)
• //methods
• public void turnRight()
• turnLeft()
• turnLeft()
• turnLeft()
• public void climbStair()
• turnLeft() move()
• turnRight() move()

13
Class header StairSweeper

• class Stair_Sweeper extends Robot
• Name of class will be same as the name of the
  file, with a .java suffix
• This class is specified in the file
  StairSweeper.java
• The StairSweeper robot inherits information and
  extends the capabilities of the Robot robot
• Everything a Robot can do, a StairSweeper can do
• move(), turnLeft(), pickBeeper(), putBeeper(),
  turnOff()
• But a StairSweeper will be able to do more (have
  more features)

14
Constructing a new robot

• public Stair_Sweeper(int street, int avenue,
• Directions.direction dir, int count)
• super(street, avenue, dir, count)
• This specifies how a robot is to be constructed
• Go back and look at the main()
• The instruction new Stair_Sweeper(1, 1, East, 0)
  is using this method, known as a constructor
• We are specifying location, direction, and number
  of beepers
• A constructor has the same name as the class
• The super keyword is indicating that this object
  is to be built the same way as its parent, Robot
• Our robot constructors will always look like this
  at the beginning

15
New robot methods

• public void turnRight()
• turnLeft()
• turnLeft()
• turnLeft()
• public void climbStair()
• turnLeft()
• move()
• turnRight()
• move()

• public is a modifier letting us know that we can
  access this method from outside the class (in
  main() for example)
• Notice that climbStair() can use turnRight() as
  part of its definition
• The method headers are known as signatures (name
  and paramter list)
• All of the signatures of a class are known as the
  class interface or API
• Interface vs. interface?

16
Advantages of building new robots

• Structure problem solutions
• Programs become easier to understand and read
• Lead to fewer errors
• Enable future modifications
• Debugging programs is easier
• New instructions can be tested independently
• New instructions impose structure, which makes it
  easier to find bugs

17
Conditionals

• How do we solve tasks in which every particular
  of a task is not specifically known?
• A robot needs the ability to survey its immediate
  environment and make decisions about what to do
  next
• The IF and the IF/ELSE provide robots with
  decision making abilities
• Robot programs contain several different kinds of
  instructions
• Messages to robots, either primitives or new
  instructions
• Constructors (specifications on how to build a
  robot)
• Control statements IF and IF/ELSE are the first
  examples of these

18
The IF instruction

• General form
• if ( lttestgt )
• ltinstruction-listgt
• Robot determines whether lttestgt is true or false
• ltinstruction-listgt is a sequence of any valid
  robot commands that will be performed when the
  robot determines the lttestgt is true
• Nothing will happen when the lttestgt is false

19
Example of IF statement

• // in a method // in a main task block
• if (nextToABeeper()) if (Karel.nextToABeeper(
  ))
• pickBeeper() Karel.pickBeeper()
• turnLeft() Karel.turnLeft()
• A beeper will be picked up only if there is a
  beeper on the same corner as the robot
• Dependent upon the results of the test
• The robot will turn left, regardless of whether a
  beeper is on the corner or not
• Independent of the results of the test

20
Conditions that a robot can test

• class Robot extends Robot
• boolean frontIsClear()
• boolean nextToABeeper()
• boolean nextToARobot()
• boolean facingNorth()
• boolean facingSouth()
• boolean facingEast()
• boolean facingWest()
• boolean anyBeepersInBeeperBag()
• boolean isVisible()
• // notice we are checking the state of the
  robot
• // we can also use accessors to build our own
  tests

21
Negative conditions?

• Suppose we want a negative form of a predicate?
• We can precede a predicate with the negative
  operator !
• if (! Karel.next-To-A-Beeper())
• // stuff

22
For practice two methods

• public void faceNorth()
• public void faceNorthIfFacingSouth()

23
The IF/ELSE instruction

• General form
• if ( lttestgt ) // note lack of semicolon
• ltinstruction-list-1gt
• else // note lack of semicolon
• ltinstruction-list-2gt
• Robot determines whether lttestgt is true or false
• ltinstruction-list-1gt is a sequence of any valid
  robot commands that will execute when the robot
  determines the lttestgt is true
• ltinstruction-list-2gt will execute when the lttestgt
  is false

24
Racer Robot

• A hurdle jumping race
• A robot will run a mile. The course may or may
  not have an obstacle (wall) in the path. If the
  robot encounters a wall, it will go around
  (hurdle) the wall. Otherwise it will continue on
  its path
• Download Sprinter demo

25
Nested IF Instructions

• Written with an IF instruction nested inside the
  THEN or ELSE clause of another IF
• As an example
• if ( lttestgt )
• if ( lttestgt )
• ltinstruction-list-1gt
• else ltinstruction-list-2gt
• else
• ltinstruction-list-2gt

26
New predicate instructions

• We could create a new subclass of the robot class
  and provide a new predicate method
• class myRobot extends Robot
• // assume constructor
• boolean frontIsBlocked()
• return ! frontIsCLear()
• // more stuff

27
Use of the new predicate

• public static void main(String args)
• myRobot R new myRobot(1, 1, North, 0)
• if (R.frontIsBlocked())
• // stuff
• // and so on

28
Walls to the right or left?

• Suppose we needed to determine if there is a wall
  to the right or left?
• public boolean leftIsClear()
• turnLeft()
• if (frontIsClear())
• turnRight() // assume definition
• return true // method terminates here
• turnRight()
• return false
• Return statement immediately terminates the method

29
When to Use an IF Instruction

• The IF instruction allows a robot to decide
  whether to execute or skip entirely the block of
  instructions within the THEN clause
• The IF/ELSE instruction allows a robot to decide
  whether to execute or skip the block of
  instructions within the THEN clause or the ELSE
  clause
• Nesting these instructions allows robots to make
  more complex choices

30
Loops

• We have already seen instances where a robot
  needs to repeat instructions to perform a task
• turnRight()
• moveMile()
• By defining new instructions we can minimize
  repetitive instructions
• runMarathon()

31
Loops for known number of repetitions

• There are times when you know how many times an
  instruction needs to be repeated
• turnRight() is always 3 left turns
• moveMile() is always 8 moves()
• Method turnRight() with a loop
• void turnRight()
• for (int count 0 count lt 3 count)
• turnLeft()

32
FOR loop General form

• for (int count 0 count lt ltnumberOfTimesgt
  count)
• ltinstruction-listgt
• int count count is the name of a variable that
  stores integers (whole numbers) its initial
  value is 0
• count lt ltnumberOfTimesgt as long as the current
  value of count is less than the number of loops
  we want, we keep looping
• count will be equal to the number of loops we
  wanted when the loop is finished
• count we increment (add 1 to) the value of
  count
• ltinstructionsgt Any valid robot instructions,
  including other loops

33
FOR loop What does this do?

• void whatDoIDo()
• for (int count 0 count lt 4 count)
• for (int count2 0 count2 lt 6 count2)
• move()
• turnLeft()

34
An unknown number of repetitions

• Suppose we know we want a robot to repeat a
  series of instructions, but we do not know how
  many times
• Task There is a beeper somewhere on the same
  street in front of the robot, but we do not know
  exactly where How does the robot find the
  beeper?
• FOR loop requires an upper limit (and there is no
  guarantee the beeper will fall within the range)
• IF statements are a one-time execute statement
• We need something to combine the testing ability
  of the IF statement with the iteration of a FOR
  loop

35
WHILE loop General form

• while ( lttestgt )
• ltinstruction-listgt
• Reserved word while starts the instruction,
  parentheses enclose the lttestgt , and braces
  enclose the ltinstruction-listgt in the usual way
• lttestgt The same conditions used in the IF
  instructions
• A robot starts the loop by checking the lttestgt in
  its current situation
• If TRUE, the robot executes the
  ltinstruction-listgt and rechecks the situation
• If FALSE, the robot executes instructions that
  follow the WHILE loop

36
WHILE loop find the beeper

• class BeeperFinder extends Robot
• // usual constructor
• // assumes no intervening wall segments
• void findBeeper()
• while (! nextToABeeper())
• move()

37
WHILE loop Clear a corner

• A robot is on a corner that may or may not have
  beepers on it. The robot is to make sure that the
  corner is clear of all beepers
• // fill in the blanks
• void clearCorner()
• while ( _____________________)
• _____________________

38
When to use repeating instructions
39
Random Walks

• A random walk is a model built on mathematical
  and physical concepts that is used to explain how
  molecules move in a closed space.
• Can be used as the basis for several mathematical
  models that predict stock market prices
• Owen Astrachan
• A Computer Science Tapestry, Chapter 7
• McGraw Hill, New York, 1997

40
Random Walks

• We will use random walks as a way to further our
  understanding of the use and development of
  classes
• We will look at a random walk in Karel
• This will coincide with moving from a
  one-dimensional random walk with a single object,
  to two objects walking in the same environment
• Karel provides a graphical interface in our
  exploration

41
A Random Walk with Karel

• See RandomWalker Demo
• This application will tell us in a walk of 50
  steps, how far a Robot will end up from origin

42
Two-D Robots

• Suppose we wanted to track our robots in
  two-dimensional space, what changes do we have to
  make
• To Main.java program
• To RandomWalker.java)
• Do we need another class?

43
Two Robots Walk

• See CountWalker project
• Suppose we wanted to track two robots in the same
  space, and see how many times they collide?
• Remember, a random walk is a model ... that is
  used to explain how molecules move in a closed
  space, among other things

44
Two Robots Walk

• This presents a special problem It is very
  difficult for an object of one class to be
  aware of a specific object of another class
• You can pass one object of a class to another
  object of a class, but it is a very difficult for
  the receiving object to know that the sent object
  is a specific object
• The best solution is to create a superclass or
  reporting class that can keep track of the
  sub-classes activities in our case, we could
  create a pond class that could watch our
  robots, and report on the number of times they
  collide
• We could do this, but not at this time we will
  come back to this issue later in the course

45
Minilab

• Use the RandomWalker class to solve these
  problems
• Prompt the user for a location. Report the
  number of steps the robot takes until it reaches
  that position.
• Given a maximum number of steps from the user,
  report the number of collisions of two robots in
  a two dimensional space
• Right now, a 2D robot can move in only a north,
  south, east, or west direction with each step.
  Modify the class so that a 2D robot could move
  along 8 possible compass points, including,
  northeast, southeast, southwest, and northwest
  (in other words, move diagonally from its
  current position)
• Play hide and seek with other robots using
  visibility

46
Simulating Board Games

• See RobotChutesLadders using GamePiece interface
  class
• Try Uncle Wiggly, Parcheesi
