Title: SHMS Q1


1
SHMS Q1
  • This presentation will probably involve audience
    discussion, which will create action items. Use
    PowerPoint to keep track of these action items
    during your presentation
  • In Slide Show, click on the right mouse button
  • Select Meeting Minder
  • Select the Action Items tab
  • Type in action items as they come up
  • Click OK to dismiss this box
  • This will automatically create an Action Item
    slide at the end of your presentation with your
    points entered.

2
Q1 Specifications
  • SHMS2006L Tune
  • Pole Radius 0.25 m
  • Aperture Radius 0.20 m
  • Gradient 8.98 T/m
  • Effective Field Length 2.14 m

3
Cold Mass Assembly
  • SHMS Q1 copy of HMS Q1 with the following
    exceptions
  • EFL 2.151m vs. 1.889m
  • SC cable 36 strand Rutherford Cable vs.
    Stabilized Cable
  • of conductor stacks/coil 1 vs. 4
  • Thicker Fe leg
  • No correction coils

Helium Can outer shell
Pole Radius 25 cm
Warm Bore Ø 40.2 cm
Helium Can inner shell
4

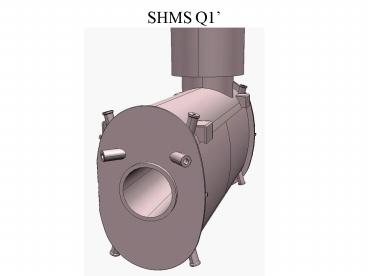

Three Dimensional Views
Notch for Beamline
Cold Mass Assembly
Current Lead Egress
Average Turn Length 4.95 m Total Cable length
1.59 Km
5
Side View
Tie Bolts x4
Yoke length 2.03m
6
Cross Section View One Quadrant
Yoke Material 1006Yoke Weight 12,855
lbsConductor Weight 336 lbsMagnet Weight 20
tons
Helium Cooling channels
Iron Yoke
Added Iron to Leg
Coil Stacks
7
Close up of the conductor stack
80 Turns / stack
Kapton
B-Stage
Yoke
SC Cable
Midplane
1.51mm
8
Top view of coil support structure For HMS Q1
Many of the components needed will be cloned from
the HMS Q1
9
Q1 Current Parameters
  • NI (total) 1,019,866 A.turns
  • Total Turns 320
  • Current 3,187.1 Amps
  • Critical Current Margin 4,659 Amps
  • Stored Energy 0.628 MJ
  • Inductance 123.7 mH

10
Q1 Magnetic Model Summary
  • Field Gradient G 9.095 T/m
  • Integral G 19.56 (T/m).m
  • EFL 2.151 m

11
Tosca Results
Current Density 18,100 A.T/cm2
12
Field in Iron
Tesla
Average Field in Yoke 2.3 T
Highest fields along edges4.61 T
13
Central Field Gradient Plot
Gradient T/m
14
Gradient Quality out to R0.20 m
Quality
15
Midplane Gradient Map
16
Gradient Plot
17
Excitation Curve
18
Multipole Harmonics
19
Harmonics Excitation
20
Stray Field Along Beam Line
21
Stray Field Bender and Q1
BendersStray Field
Integral By.dz 0.56 T.m
Q1s Stray Field
Units Gauss.Cm
22
Coil Forces
Peak Field in Coil is 2.7 T
23
Quadrant Yoke forces
24
FEA Model Loads
25
Von Mises Stress
Units PSI
Unit Psi
Max Stress is 6 Ksi
26
Deflection
Units Inches
DeflectionInches
27
Tie Bar Stress316S 36mm Diameter RodMJ36x2-4h6h
ThreadsDesign Stress 300 MPa 43.5Ksi (1/3
of Ultimate)
  • HMS Q1
  • Squeeze Load 10.44 Ksi
  • EM Force 20.74 Ksi
  • Total Stress 31.18 Ksi
  • SHMS Q1
  • Squeeze Load 10.44 Ksi
  • EM Force 35.53 Ksi
  • Total Stress 45.97 Ksi

Squeeze Load is that needed to achieve a packing
factor 96 for the Laminations. From Tesla.
28
Next Steps for Q1 Magnet Development
  • Trial windings of Coil. Biggest issue for the
    HMS magnets
  • Preparing Conductor De-Keystoning.
  • Review RD report validating structural integrity
    given longer length and higher forces.

29
Conclusion
  • Tosca model demonstrates that the longer and
    higher gradient Q1 design meets the magnetic
    specifications.
