Status of CSC panels production LAB8 facility

1

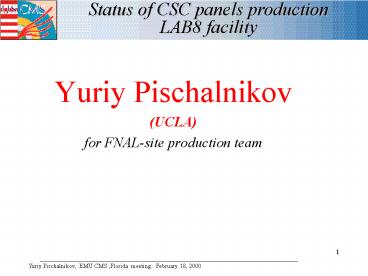

Status of CSC panels productionLAB8 facility

• Yuriy Pischalnikov
• (UCLA)
• for FNAL-site production team

2
Panels productionOut-line

• Panels procurement and Inspection
• Plascore performance
• (Giorgio A. slides)
• Panels production rate at LAB8
• Where are we now in our FY00 schedule
• Rejection rate ( how many panels we lost)
• QA/QC of Panels (strips milling accuracy)
• results of TD database analysis

3
Panel Procurement Inspection (Giorgio slides)

• Panel Procurement Status
• Received and Inspected 600 5x12 Panels (out of
  1500)
• Received and Inspected 200 4x12 Panels (out of
  500)
• After some initial definition of tests we
  converged on the following QC steps
• Make Laser flatness measurements on 3 of the
  panels
• Screen 100 of the panels with a Pin Gauge
  Measurement

800 40
4
Panel Procurement Inspection (Giorgio slides)
Flatness Measurement
Before
After
5
Panel Procurement Inspection (Giorgio slides)

• 490 total measurements on the plot (available)
• Rejection
• Pin Gauge gt 80 mils
• 14/600 rejected 5x12
• 2/200 rejected 4x12
• 2 rejection factor

Attempt to try to fix panels dont work yet
6
Panels Production Rate-FY2000 http//tdpc01.fnal.
gov/project/UsCmsEmu/Lab8Production
We made 409(337on Gerber) ME234/2 Panels gt 56
ME2324/2Chamber(40) 5 prototypes chambers
(ME1/2,ME2/1)
7
LAB8 load schedule for FY2000
Total 11panels (11/4002,75)
We reached flat rate of DRtrouble 3
8
Alignment marks gtgt gtgtstrips artwork position
Rotation
1. Scale narrow side (Y81-Y1 )meas-(Y81-Y1
)theor. (X0) wide side (Y81-Y1 )meas-(Y81-Y1
)theor. (X12) 2. Off-set narrow -
1/2((Ymeas81-Ytheor81 ) ((Ymeas1-Ytheor1)).
(X0) wide - 1/2((Ymeas81-Ytheor81 )
((Ymeas1-Ytheor1)). (X12) 3. Rotation (Off-set)n
arrow - (Off-set)wide / L
X
1st groove
81st groove
Y
Scale
1st groove
81st groove
Off-set
9
EMU CMS Database
10
Narrow side
11
Narrow side
12
Wide side
13
Wide side
14
TD database - Alignment marks -Summary
For 40 of ME234/2 panels (already made at
LAB8), overall quality of Panels (based on
alignment marks analysis) is very good.
Rotation
X
1st groove
81st groove
rotation
Y
Scale
81st groove
1st groove
Off-set
15
Summary

• Panel receiving and inspecting
• 600200800panels 40 of whole CSC volume
• 100 inspected with pin gauge
• with pin gauge gt 80mils 2 rejection
• Panels production rate is according schedule
  (near 14 panels/week)
• We already made 56ME234/2 chambers( 40)5
  protos
• we reached plato in rate of DR(lost panels) 3

• Quality (accuracy) of strips art-work milling
  from
• TD database (alignment marks position) 300
  panels
• scale -4,5mils narrow and 2mils wide
• off-set 1-2mils
• rotation 1mils/12
