Title: Week 5 Symbolizing Map Data


1

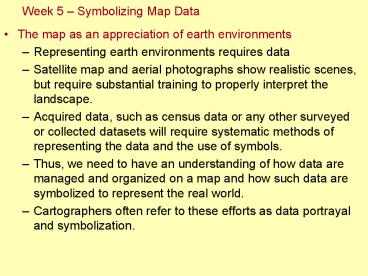

Week 5 Symbolizing Map Data
  • The map as an appreciation of earth environments
  • Representing earth environments requires data
  • Satellite map and aerial photographs show
    realistic scenes, but require substantial
    training to properly interpret the landscape.
  • Acquired data, such as census data or any other
    surveyed or collected datasets will require
    systematic methods of representing the data and
    the use of symbols.
  • Thus, we need to have an understanding of how
    data are managed and organized on a map and how
    such data are symbolized to represent the real
    world.
  • Cartographers often refer to these efforts as
    data portrayal and symbolization.

2
Week 5 Symbolizing Map Data
  • Data portrayal and symbolization
  • Numeric and non-numeric map data come in all
    kinds of formats, all kinds of densities, all
    kinds of data collection methods, and all kinds
    of time frames.
  • How we portray them depends on a combination of
    these varying factors.
  • But geometrically speaking, they come in as point
    data (zero dimension), line data (one dimension),
    area data (two dimensions) volume (three
    dimensions) and volume through time (four
    dimensions).
  • Therefore, we can portray them as point symbols,
    line symbols, area symbols or shades, 3-D
    formats, and 3-D formats over time (animation).
  • Data may be classified as qualitative and
    quantitative.
  • Symbols may be realistic or abstract (mimetic or
    arbitrary).

3
  • Qualitative and quantitative data maps
  • Qualitative data refer to nominal (named)
    geographic information, e.g. a valley, a mountain
    range, a river, a church in a reference map,
    sedimentary rocks on a geologic map, commercial
    retail area on a land use map, clayey soils on a
    soil map
  • There is no numeric quantity associated to the
    map data
  • Quantitative data refer to the amount of things
    that are being mapped, e.g. the number of people
    on a population map, temperature records on a
    weather map, elevations on a topographic map, the
    amount of traffic on a flow-line map
  • Numeric data usually indicate how much of
    something is distributed spatially on the map

4
Quantitative and qualitative data maps.
Qualitative
Quantitative
5
Qualitative
Point data maps
Quantitative
6
Qualitative
Line data maps
Quantitative
7
Qualitative no one area should look darker than
another, because these are just classifications
of lands, and not comparisons of quantities.
Area data maps
Quantitative
Darker shades normally indicate higher quantities.
8
Manually prepared 3-D block diagram
3-D formats
Computer-generated 3-D terrain model
9
Time series maps are particularly useful in
detecting change over time
10
Week 5 Symbolizing Map Data
  • Symbols play an important role in helping the map
    reader understand the map
  • But other processes, such as data collection,
    mapping methods, and how to classify data also
    play very important roles in helping the map
    reader.
  • Well examine the nature of symbols, data
    collection and mapping methods, and the process
    of map generalization.

11
Symbols may be realistic or pictorial or abstract
Realistic point feature
Abstract point feature
Abstract line feature
Realistic line feature
Realistic areal feature
Abstract areal feature
12
Some cartographers use different terms to
illustrate this type of symbolization by
referring to a pictoral continuum from being
Mimetic or mimicking to Arbitrary
13
But when a map is all put together and finally
published, the map reader will only have the
symbols to interpret the map and try to get a
sense of what is the main map message by
visualizing the geographic patterns from the map.
14
Week 5 Symbolizing Map Data
  • Generalizing map data
  • It is apparent that map data must be generalized
    to some degree before they can be symbolized and
    represented on a map.
  • Given all of the variations of map data formats
    that weve discussed as well as the abstraction
    of the symbols, the map reader must exercise some
    common sense in interpreting a map.
  • Because much geographic information has been
    generalized and when it is finally represented on
    a map as map symbols, a great deal of alteration
    of the original data has already taken place.
  • Consider the following series of maps

15
  • How useful is this map? How do we interpret this
    map?
  • Looking at the map legend, we can derive several
    conclusions
  • That the map was purposely classified into four
    classes, two of which are above the national
    average of 79.6 persons per sq. mile and the
    other two below. (continued on next slide)

16
  • That the dark blue represents the most dense
    states
  • That the range of the dark blue is from 300 to
    9,316 persons/sq. mile
  • That this range is very large, compared to all
    other ranges
  • That the information is lost if we wish to
    compare the density say, between NY and Rhode
    Island, or between Massachusetts and Delaware
    even though all 4 states are within the same
    class of 300-9316.
  • For all that matters, one of these states may be
    as dense as 9,316 since the data indicated that
    as the highest in the range while another state
    can be as low as 300 or close to the low end of
    300.

7. There is no way to know which state is
high and which state is low. 8. There is also no
way to know how low the lowest state is is it at
300 or can it be at 350?
17
9. That the population density of Wisconsin can
possibly be the same as that of California since
they have the same color on the map. 10. That,
according to the map, Alaska can be as high as
6.9 and Minnesota can be as low as 7.0, putting
these two states practically having little to no
difference in terms of population density. Is
this true? According to the map, it is true but
in reality, maybe not! 11. That there is no
variation in population density within each
state! 12. That if one needs information on
variations in population density in each state,
the mapping method must include data at the
county level, as on the map in the next slide
18
On this map, population density data were
collected at the county level. 1. There is a lot
more variation in population density on this map
and the map now really reflects the concentration
of urban centers.
19
  • That the black color represents the most dense
    counties, in the range of 3,000 to 66,940.
  • That this range is also very large (22 times
    between high and low)
  • That the spatial resolution is much better than
    the previous state level map. Geographic
    patterns can thus emerge.
  • That there is still no variation in population
    density information within each county.
  • The question then becomes whether we need data
    variation within one county?
  • Examine at the next set of maps.

(They are actually enlargements of the same map).
20
Consider the geographic background that relates
to population density in San Bernardino County in
California which extends into the Mojave Desert
and Miami-Dade County in Florida which extends
into the Everglades. Are there many people
living in Mojave Desert or Everglades?
21
Week 5 Symbolizing Map Data
  • Generalizing map data
  • The way that a cartographer generalizes map data
    and the very method that we use for mapping would
    indeed change the perception of the map patterns.
  • Not only should a cartographer be faithfully
    seeking the best ways to map geographic data, but
    the map reader should also be cognizant of what
    goes on in the mapping process in order to get
    the correct insight of the precise geographic
    pattern.
  • Thus, we must also study the accuracy of maps.
  • Consider the following scenarios.

22
Different data sampling techniques will result in
different number of data points collected.
23
(a) Mapping by townships
(b) Mapping by townships with uninhabited areas
added.
(c) Mapping by subdivisions of townships. When
the mapping area unit is smaller, the mapping of
the true phenomenon is more accurate, as in
this case of Cape Cod where heavy concentration
of homes are along either coasts and the middle
strip of land is devoted to commercial
establishments along a state highway.
24
Week 5 Symbolizing Map Data
  • How to lie with maps and distort the truth
  • Because of the different ways of mapping
    geographic data and the outcomes of the maps can
    change, there is also ambiguity in the
    interpretation of maps.
  • In fact, the author of your textbook has also
    written another book titled How to lie with
    maps.
