Digital HCAL using GEM

1

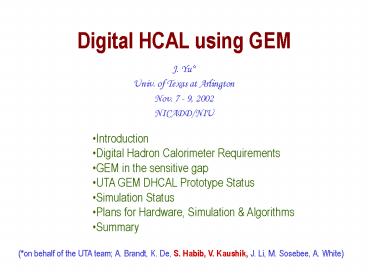

Digital HCAL using GEM

• J. Yu
• Univ. of Texas at Arlington
• Nov. 7 - 9, 2002
• NICADD/NIU

• Introduction
• Digital Hadron Calorimeter Requirements
• GEM in the sensitive gap
• UTA GEM DHCAL Prototype Status
• Simulation Status
• Plans for Hardware, Simulation Algorithms
• Summary

(on behalf of the UTA team A. Brandt, K. De, S.
Habib, V. Kaushik, J. Li, M. Sosebee, A. White)
2
Introduction

• LC physics topics
• Distinguish W from Z in two jet final states ?
  Good jet mass resolution
• Higher Jet energy resolution
• Excellent jet angular resolution
• Energy flow algorithm is one of the solutions
• Replace charged track energy with momentum
  measured in the tracking system
• Requires efficient removal of associated energy
  cluster
• Higher calorimeter granularity
• Use calorimeter only for neutral particle
  energies
• Best known method for jet energy resolution
  improvement
• Large number of readout channel will drive up the
  cost for analogue style energy measurement ?
  Digital HCAL
• Tracking calorimeter with high gain sensitive gap

3
DHCAL General Requirements

• Thin and sensitive readout layer for compact
  design
• One or two level digital hit recording for EFA
  use
• On-board amplification, digitization and
  discrimination for readout, minimizing noise and
  cross-talk
• Flexible design for easy implementation of
  arbitrary cell size for upgrade
• Minimal intrusion for crackless design
• Ease of construction and maintenance
• Cost effective

4
DHCAL Gas Amplification Requirements

• Sufficiently large gain for good S/N ratio (3
  orders of magnitude smaller signal in gas
  compared to scintillation counter)
• Minimize cross-talk between cells in readout
• Isolated readout path from active volume to avoid
  coherent noise
• Modularity, retaining continuity for gas and HV
  supplies and readout
• Digitized readout from each cell
• Allow pad design to avoid strip ambiguity
• Keep low HV for safety and reliability
• Simple readout electronics for cost savings and
  reliability

5
DHCAL Requirements for EFA

• Small cell size for higher position resolution
  for good multiple track shower separation
• High efficiency for MiPs in a cell for effective
  shower particle counting and MiP tracking
• Possibility for Multiple thresholds
• Dense and compact design for quick shower
  development to minimize confusion and resolution
  degradation
• Large tracking radius with optimized magnetic
  field for sufficient separation between tracks
  for shower isolation

6
Goals for UTA DHCAL Development

• Develop digital hadron calorimetry for use with
  EFA
• Aim for cost effectiveness and high granularity
• Look for a good tracking device for the sensitive
  gap
• Develop GEM cell(s) and prototype
• Develop module/stack design for EFA optimization
• Simulate GEM behavior in calorimeter
• Implement GEM readout structure into simulation
• Develop EF and calorimeter tracking algorithms
• Cost effective, large scale GEM DHCAL

7
Why GEM?

• GEM developed by F. Sauli (CERN) for use as
  pre-amplification stage for MSGCs
• Allow flexible and geometrical design, using
  printed circuit readout ? Can be as fine a
  readout as GEM tracking chamber!!
• High gains, above 104,with spark probabilities
  per incident ? less than 10-10
• Fast response
• 40ns drift time for 3mm gap with ArCO2
• Relative low HV
• A few 100V per each GEM gap compared to 10-16kV
  for RPC
• Rather reasonable cost
• Foils are basically copper-clad kapton
• 400 for a specially prepared and framed
  10cmx10cm foil

8
CERN-open-2000-344, A. Sharma
9
GEM Foils

• Most foils made at CERN
• A total of about 1000 foils made
• COMPASS experiment has large scale, 31cmx31cm,
  GEM
• Kapton etching most difficult step ? Work with
  Saulis group

A. Sharma CERN OPEN-98-030
10
GEM gains
CERN GDD group
11
Double GEM DHCAL Design
12
Double GEM test chamber

• Sufficient space for foil manipulation
• Readout feed-through, retaining large space for
  ease of connection
• Clear cover to allow easy monitoring
• Readout pads connection at the bottom

2cmx2cm pad design
J. Li, UTA
13
UTA GEM Test Chamber HV layout
Drift gap
HV fed from one supply but individually adjusted
? Good to prevent HV damage on the foils
2.1kV
Transfer gap
Induction gap
14
UTA GEM Prototype Status

• Readout circuit board (2cmx2cm pads) constructed
• HV Connection implemented
• Two GEM foils in the UTA Nano fabrication
  facility cleanroom
• Preamp in hand and characterization completed

Amplification factor of 300 for GEM size signal
(LeCroy HQV800 )
15
Single GEM gain/discharge probability

• Simulation study in progress using multi-jet
  final states
• Understand average total charge deposit in a cell
  of various sizes
• Study fake signal from spiraling charged particle
  in the gap

A.Bressan et al, NIM A424, 321 (1998)
16
UTA Simulation Status

• Two masters students have been working on this
  project
• Mokka Geometry database downloaded and installed
  at UTA
• Preliminary mixture GEM geometry implemented
• Completed single pion studies using default
  geometry
• Reproduced expected response
• Energy resolution seems to be reasonable also
• Root macro based and JAS based analysis packages
  developed
• Proceed with more detailed GEM geometry
  implementation

17
Single Pion Studies w/ Default TESLA Geometry

• 1000 single pion events using Mokka particle gun
  command.
• Incident energy range 5 200GeV
• kinematics information on primary particles in
  the files
• Developed an analysis program to read total
  energies deposited per pion for each incident
  energy.
• Mean Energy vs Incident pion energies
• Energy conversion from the slope of the straight
  line
• Conversion factor is 3.54 and agrees with the
  computed sampling fraction

18
TESLA TDR Geometry

• Ecal Electromagnetic Calorimeter Material
  W/G10/Si/G10 plates (in yellow)
• 1mm W absorber plates
• 0.5 mm thick Si, embeded 2 G10 plates of 0.8 mm
  each

• Hcal Hadronic Calorimeter
• Material
• 18 mm of Fe
• 6.5 mm of Polystyrene scintillator (in green)

19
TESLA TDR detector live energy deposit for single
pions
20
TESLA TDR Elive vs Ep

21
TESLA TDR CAL Single Pion Resolution
22
GEM Simulation Status

• Mokka Geometry database downloaded and installed
  at UTA
• New Geometry driver written ? Mixture GEM
  geometry implemented ?Need to use ArCO2 only
• Single pion study begun for discharge probability
• Initial study shows that the number of electron,
  ion pair with gain of 104 will be on the order of
  107 for single 200GeV pions
• Getting pretty close to the 108 from other
  studies ? Might get worse for jets from W pairs,
  due to fluctuation
• Need more studies to compute the discharge
  probability.
• Cell energy deposit being investigated to
  determine optimal threshold based on cell energy
  ? Proceed to energy resolution studies
• Determine optimal gain using live energy deposit
  vs incident energy

23
GEM Prototype Geometry
24
GEM Geometry Implementation Mechanics in Mokka

• TDR / Hcal02 Model chosen for modification
• Fe-GEM sub-detector instead of the existing
  Fe-Scintillator
• New driver for the HCal02 sub-detector module
• Local database connectivity for HCal02 ? Database
  downloaded and implemented at UTA

Courtesy Paulo deFrietas
25
Single pion study with GEM
15GeV
5GeV
26
Cell Energy Deposit in GEM HCal
27
GEM Sampling Weight
28
Summary

• Hardware prototype making significant progress
• GEM foils delivered and are in the clean room for
  safe keeping
• Preamp and Discriminator in hands ? Preamp
  characterized
• HV System implemented
• Readout Pad implemented
• Almost ready to put GEM foils in the prototype
  box
• GEM foil mass production being looked into by
  3MSimulation effort made a marked progress
• Simulation effort made a marked progress
• Single pion study of Mokka default TESLA TDR
  geometry complete
• Analysis tools in place
• The resolution seems to be reasonable
• Preliminary GEM Mixture geometry implemented
• First results seems to be a bit confusing
• Initial estimate of eIon pair seems to be at
  about 107 for 200GeV pions
• Local Geometry database implemented
• Optimal threshold for digitization and gain will
  come soon
• Will soon move onto realistic events, WW, ZZ, or
  tt ? jets
