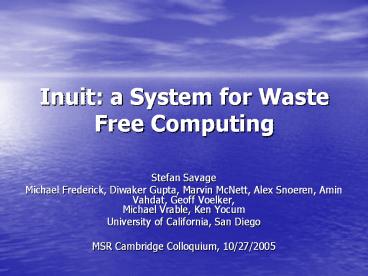

Inuit: a System for Waste Free Computing

1
Inuit a System for Waste Free Computing

• Stefan Savage
• Michael Frederick, Diwaker Gupta, Marvin McNett,
  Alex Snoeren, Amin Vahdat, Geoff Voelker,
  Michael Vrable, Ken Yocum
• University of California, San Diego
• MSR Cambridge Colloquium, 10/27/2005

2
First a warning
gt From Stefan Savage mailtosavage_at_cs.ucsd.edu
gt Sent 03 August 2005 0937 gt To Rebecca
Isaacs gt Cc jon.crowcroft_at_cl.cam.ac.uk
mvrable_at_cs.ucsd.edu gt Subject RE Invitation -
Cambridge Systems Colloquium 27 Oct gt If you'd
like to get a talk out of me I can certainly do
one, but I'm gt not sure the talks I have on tap
will be a perfect fit for the topics gt below
(unless you're amenable to a wildly gesticulating
rant)
gt From Rebecca Isaacs mailtorisaacs_at_microsoft.c
om gt Sent Friday, September 16, 2005 1153 AM gt
To Stefan Savage gt Cc jon.crowcroft_at_cl.cam.ac.uk
gt Subject RE Invitation - Cambridge Systems
Colloquium 27 Oct gt Hi Stefan, gt Actually wild
gesticulations could be quite entertaining...

• Thus, this talk is wild speculation
• I am unconstrained by
• thinking my ideas through
• evaluating if they might be practical
• or, any real experience with the problem domain

3
American Culture

• The US has developed, by far, the most
  consumption-oriented, wasteful culture in the
  history of mankind
• 400 million tons of waste/year (almost 25 of
  world)
• 100 quads energy/year (almost 30 of world usage)

4
Inuit Culture

• Indigenous people of North America and Eastern
  Russia
• Subsistence hunters -gt Bowhead Whale
• Nothing is wasted for to waste would be
  disrespectful to the whale Abvibich lglaunifat
  Niginmun
• Meat -gt protein
• Jaw bones -gt sled runners
• Ribs -gt Fences and arrow points
• Shoulder blades -gt housing structures
• Baleen -gt Rope and baskets
• Lungs/Liver -gt Drums
• Blubber -gt Oil lamps

5
Modern computing is very American

• Most of the time they do nothing of value
• void cpu_idle (void) (200 Trillion BTUs?)
• Yet, we keep buying more (250M last year!)
• And, we throw out the old ones (150M last year)
• Bottom line computers are treated as disposable
  items to be acquired to excess, lightly used and
  then discarded

6
A Case StudySystems Computing at UCSD

• 100 servers
• 2-5 Trillion Instructions per Second
• 150GB memory
• 22kW power consumption (peak)
• 100kBTU/hr heat load (peak)
• We have 30 students sharing these machines
• The waste paradox
• Students insist that resources are scarce and we
  need to buy more machines
• They cant get machines when they need them, and
• They cant run the large-scale experiments they
  want
• Yet. resource utilization is ltlt 5

7
Why is this?

• We all like the abstraction of a machine as a
  unit of computing allocation
• This is deep in the DNA of the PC computing model
• Provides isolation (software, performance)
• Our direct implementation of this abstraction is
  where we get into trouble
• High preemption cost -gt long term allocation
• Get off my machines you _at_-head
• Poor resource sharing
• Your disk storage is not unique Bolosky et al
• Your memory is not unique
• Your computing is not unique

8
The Inuit system

• Unit of allocation is the machine cluster (can be
  1 machine)
• Implementation via virtual machines (modified
  Xen)
• Key idea Try to eliminate all unintended
  resource redundancy
• Extreme multiplexing
• Storage sharing
• System continuations
• Maximize cluster-level parallelism
• Aggressive migration
• Place to maximize resource utilization (sharing
  AND use)
• Cluster activations
• Allow cluster applications to adapt to changes in
  resource availability
• Potemkin Xenoservers Parallax The
  Collective GMS Single Instance Store
  Pastiche Rx Transparent Result Caching
  judicious amounts of grad student effort

9
Extreme multiplexing

• Share storage between similar VMs
• CoW memory/disk (ala Potemkin)
• Discover newly shared data (ala ESX server)
• Throw away idle storage remotely available
• Allows 10s or 100s of VMs per physical machine
• Many VMs -gt likely that a VM is available when
  CPU goes idle
• System continuations share execution traces
  across similar VMs
• Pre-cache state changes from common (input, CFG)
  blocks
• Roll-forward VMs to cached result state (opposite
  of ReVirt)
• Note leverage controlled non-determinism (Rx) -gt
  Plausibility is sufficient

10
Aggressive migration

• Cluster similar VMs on the same physical
  machines
• To maximize cheap sharing opportunities
• Migrate VM/storage to maximize global utilization

• Balance CPU/memory load
• E.g., Large working set VMs can disrupt
  multiplexing
• Migrate VM away, or migrate memory away (depends
  on workload)

11
Cluster activations

• For those who need multiple simultaneous machines
  (virtual clusters)
• Gang scheduling of VC VMs
• Can specify hard/soft resource requirements
• Violate utilization maximization for hard
  requirements
• Application notification on soft resource
  violation
• Provide feedback about resources backing VMs

12
Where does this make sense?

• Obvious places
• UCSD
• Datacenters
• The Grid
• Application servers
• Less obvious
• Desktops
• Huh?

13
Inuit on the desktop?

• Two opportunities
• VMs make Networks of Workstations palatable
• Idle CPU/Memory up for grabs
• Manageability
• Encapsulating desktop in VM makes deployment easy
• Checkpoint/restore of whole system image
• Cheap migration of whole workstation (Internet
  Suspend/Resume/Collective)

14
Where are we now?

• At the social engineering stage
• Get everyone to eat the dog food and fix problems
  until its at least as good as what we had
• Almost all of our servers now run Xen by default
• Students forced to use Xen as their only
  environment
• Lots of support infrastructure
• Address allocation/routing DNS (IP addresses
  DNS names correspond to VMs not PMs)
• Control interface (which images onto which VMs,
  VM auth,etc)
• Half-done with virtual reboot/tty interface
• Work to improve Potemkin stability/overhead
• The rest is a hand wave

15
Questions

• ?
