Performance Analysis of VoIP over WiMax

1

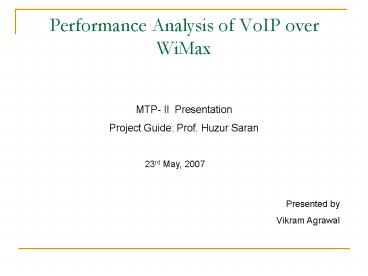

Performance Analysis of VoIP over WiMax
MTP- II Presentation Project Guide Prof. Huzur
Saran
23rd May, 2007
Presented by Vikram Agrawal
2
Agenda

• IEEE 802.16 An attractive alternative
• QoS support in Mac Layer
• Voice over IP
• Performance metrics
• Simulation and Results
• Future work

3
IEEE 802.16 An attractive alternative

• Increasing demand for broadband access.
• Serves worlds rural and sub-urban places
• High data rates and connectivity
• NLOS performance and mobility

Support for Voice calls ??
Video on Demand ??
4
QoS support in Mac Layer
QoS Functions within BS and SSs Source CELM06
5
Issues with VoIP

• Low Efficiency

IP/UDP/RTP header
MAC Header
Payload
Efficiency lt 50
20 Bytes
40 Bytes
10-30 Bytes
6
Issues with VoIP
Voice conversation
7
Issues with VoIP

• Voice Activity Detector
• 60 of a Voice conversation is silence
• Talk spurts - on state
• Silence Gaps - off state

• Continuous Process (10ms)
• 10 bytes

ON
ACT frame

• Exponential process
• Background Noise
• 2 bytes

OFF
SID frame
8
VoIP over WIMAX

• MAC scheduling for VoIP traffic
• UGS or rtPS ?
• Grant interval size
• Voice Traffic model
• Admission Control for new VoIP client
• Resource availability
• QoS policy

9
Simulation Done

• Used Wimax module for NS2
• Used tele-traffic theory for network flow
• Inter arrival time and Call holding time is
  exponentially distributed
• To model Spurts and Gaps, exponential
  distribution is used
• Call admission control is based on resource
  availability

10
Performance Metrics

• Throughput
• Resource utilization
• Transmission delay
• Latency
• Call dropped
• Call in progress

11
UGS vs rtPS
Num of nodes 5 AHT 60 sec AIT 2 sec
12
Constant Bit Rate Voice Traffic
13
Constant Bit Rate Voice Traffic
14
Constant Bit Rate with Spurts and Gaps
15
Constant Bit Rate with Spurts and Gaps
16
Comparison
17
Comparison
18
Grant Interval
19
Grant Interval
20
Varying Grant Interval
21
Varying Grant Interval
22
Varying Number of Service Station
23
Varying Number of Service Station
24
Future Work

• Voice Traffic with data traffic
• Using Wimax test bed with quality of voice
  received as a QOS constraint
• Considering voice calls between SSs and not only
  between SS and BS

25
References

• C. Cicconetti, C. Eklund, L. Lenzini, and E.
  Mingozzi. Quality of service support in IEEE
  802.16 networks. IEEE Network, 205055, March
  2006.
• C. Cicconetti, C. Eklund, L. Lenzini, and E.
  Mingozzi. Performance evaluation of the IEEE
  802.16 MAC for QoS support. IEEE Trans. Mobile
  Comput., 62638, January 2007.
• Oleg Gusak, Neal Oliver, and Khosrow Sohraby.
  Performance evaluation of the 802.16 medium
  access control layer. In ISCIS, pages 228237,
  2004.
• Draft of WiMax Standard, "IEEE Standard for Local
  and Metropolitan Area Networks - Part 16 Air
  Interface for Fixed Broadband Wireless Access
  Systems", IEEE 802.16 forum.
• Carl Eklund, Roger B. Markas, and Kenneth L.
  Stanwood, "IEEE Standard 802.16 A technical
  overview of the wireless MAN Air Interface for
  Broadband Wireless Access", IEEE Communications
  Magazine, pp 98-107, June 2002.

26
References

• Jenhui Chen, Chih-Chieh Wang, Frank Chee-Da Tsai,
  Chiang-Wei Chang,Syao-Syuan Liu, Jhenjhong Guo,
  Wei-Jen Lien, Jui-Hsiang Sum, and Chih-Hsin Hung.
  The design and implementation of wimax module for
  ns-2 simulator.In WNS2 06 Proceeding from the
  2006 workshop on ns-2 the IP network simulator,
  page 5, New York, NY, USA, 2006. ACM Press.
• Jorn Seger. Modelling approach for voip traffic
  aggregations for transferring tele-traffic trunks
  in a qos enabled ip-backbone environment, 2003.
• W. Jiang and H. Schulzrinne. Analysis of on-off
  patterns in voip and their effect on voice
  traffic aggregation, 2000.
• David Tse and Pramod Viswanath. Fundamentals of
  wireless communication. Cambridge University
  Press, New York, NY, USA, 2005.

27

• Questions ?
• Suggestions ?

Thank You
