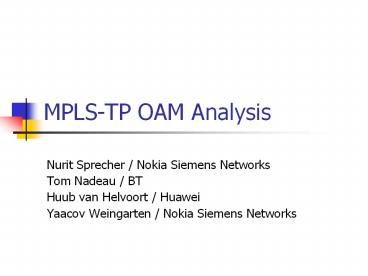

MPLS-TP OAM Analysis

• Nurit Sprecher / Nokia Siemens Networks
• Tom Nadeau / BT
• Huub van Helvoort / Huawei
• Yaacov Weingarten / Nokia Siemens Networks

2
Purpose of the Document

• IETF existing OAM Tools for LSPs
• LSP Ping
• MPLS BFD
• IETF existing OAM tools for PWs
• VCCV supporting ICMP Ping
• VCCV supporting LSP Ping
• VCCV supporting BFD (with and without IP/UDP
  encapsulation)

MPLS-TP OAM Requirements Draft (draft-vigoureux-m
pls-tp-oam-requirements-00.txt)

• Analyze whether the existing IETF OAM tools can
  be used to fulfill the requirements
• Identify which tools need to be extended to
  comply with the requirements
• Identify whether new tools need to be defined

3
Organization of the Document

• Discusses first the architectural requirements
  and the general principles of operations, and
  then the requirements for the OAM functions.
• The existing tools are evaluated for each aspect
  and gaps (if exist) are identified.
• Recommendations and guidelines are provided.

4
Organization of the Document
Remote Defect Indication
Alarm Suppression
Connectivity Verification
Architectural Requirements
General Principles of Operations
Continuity Check
Requirements for the OAM Functions
Analysis of OAM Requirements

• The existing tools are evaluated for each and
  gaps (if exist) are identified.
• Recommendations and guidelines are provided.

5
Principal Recommendations

• Define Tandem Connection entity for both LSPs and
  PWs
• Extend ACH to provide control channel for MPLS
  Sections, LSPs and Tandem Connections
• Define a VPCV (Virtual Path Connectivity
  Verification) mechanism for LSP and Tandem
  Connection, reusing as much as possible the same
  principles of operation as VCCV.
• Extend BFD to support Point-to-Multipoint
  transport paths
• Define tools to support the following functions
  (with the ability to authenticate the messages)
• Connectivity Verification (BFD does not support
  communication to MIPs)
• Alarm suppression
• Lock indication
• Packet loss measurement
• Diagnostic test
• Trace-route (LSP Ping can not be used as it is
  dependent on IP functionality)
• Delay Measurement
• Remote Defect Indication
• Client signal fail

6
Principal Recommendations (Contd.)

• Extend the management-plane/control-plane to
  support the configuration of the OAM entities and
  the set of OAM functions they need to support
• To be considered change the name of the ACH
  CV Type to Protocol Type in order to avoid
  confusion with the CV function.

7
Conclusion

• Authors are soliciting more comments and feedback
  from WG
• Authors believe that current draft version is
  comprehensive
• Should it become a WG document?
• Authors request the WG to adopt the
  recommendations
• Identify a list of documents that should be
  extended.
• Identify a list of documents that should be
  specified.

8
