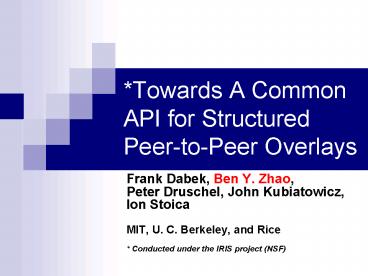

Towards A Common API for Structured Peer-to-Peer
Overlays

• Frank Dabek, Ben Y. Zhao,Peter Druschel, John
  Kubiatowicz, Ion Stoica
• MIT, U. C. Berkeley, and Rice
• Conducted under the IRIS project (NSF)

2
State of the Art

• Lots and lots of peer to peer applications
• Decentralized file systems, archival backup
• Group communication / coordination
• Routing layers for anonymity, attack resilience
• Scalable content distribution
• Built on scalable, self-organizing overlays
• E.g. CAN, Chord, Pastry, Tapestry, Kademlia, etc
• Semantic differences
• Store/get data, locate objects, multicast /
  anycast
• How do these functional layers relate?
• What is the smallest common denominator?

3
Some Abstractions

• Distributed Hash Tables (DHT)
• Simple store and retrieve of values with a key
• Values can be of any type
• Decentralized Object Location and Routing (DOLR)
• Decentralized directory service for
  endpoints/objects
• Route messages to nearest available endpoint
• Multicast / Anycast (CAST)
• Scalable group communication
• Decentralized membership management

4
Tier 1 Interfaces
5
Structured P2P Overlays
Tier 2
CFS
PAST
SplitStream
i3
OceanStore
Bayeux
Tier 1
CAST
DHT
DOLR
Key-based Routing
Tier 0
6
The Common Denominator

• Key-based Routing layer (Tier 0)
• Large sparse Id space N(160 bits 0 2160
  represented as base b)
• Nodes in overlay network have nodeIds ? N
• Given k ? N, overlay deterministically maps k to
  its root node (a live node in the network)
• Goal Standardize API at this layer
• Main routing call
• route (key, msg, node)
• Route message to node currently responsible for
  key
• Supplementary calls
• Flexible upcall interface for customized routing
• Accessing and managing the ID-space

7
Flexible Routing via Upcalls

• Deliver(key, msg)
• Delivers a message to application at the
  destination
• Forward(key, msg, nextHopNode)
• Synchronous upcall with normal next hop node
• Applications can override messages
• Update(node, boolean joined)
• Upcall invoked to inform application of a node
  joining or leaving the local nodes neighborSet

8
KBR API (managing ID space)

• Expose local routing table
• nextHopSet local_lookup (key, num, safe)
• Query the ID space
• nodehandle neighborSet (max_rank)
• nodehandle replicaSet (key, num)
• boolean range (node, rank, lkey, rkey)

9
Caching DHT Illustrated
10
Caching DHT Implementation

• Interface
• put (key, value)
• value get (key)
• Implementation (source S, client C, root R)
• Put route(key, PUT,value,S)Forward upcall
  store valueDeliver upcall store value
• Get route(key, GET,C)Forward upcall if
  cached, route(C, value), FINDeliver upcall if
  found, route(C, value)

11
Ongoing Work

• Whats next
• Better understanding of DOLR vs. CAST
• Decentralized endpoint management
• Policies in placement of indirection points
• APIs and semantics for Tier 1 (DHT/DOLR/CAST)
• KBR API implementation in current protocols
• See paper for additional details
• Implementation of Tier 1 interfaces on KBR
• KBR API support on selected P2P systems

12
Backup Slides Follow
13
Our Goals

• Protocol comparison
• Identify basic commonalities between systems
• Isolate and clarify interfaces by functionality
• Towards a common API
• Easily supportable by old and new protocols
• Enable application portability between protocols
• Enable common benchmarks
• Provide a framework for reusable components

14
Key-based Routing API

• Invoking routing functionality
• Route (key, msg, node)
• Accessing routing layer
• nextHopSet local_lookup(key, num, safe)
• nodehandle neighborSet(max_rank)
• nodehandle replicaSet(key, num)
• boolean range(node, rank, lkey, rkey)
• Flexible upcalls
• Delivery (key, msg)
• Forward (key, msg, nextHopNode)
• Update (node, boolean joined)

15
Observations

• Compare and contrast
• Issues locality, naming, caching, replication
• Common general algorithmic approach
• Contrast instantiation, policy,
• Revising abstraction definitions
• Pure abstraction vs. instantiated prototype
• E.g. DHT abstraction vs. DHash
• Abstractions colored by initial application
• E.g. Object location ? DOLR ? Endpoint Location
  and Routing
• Ongoing understanding of Tier 1 interfaces

16
Flexible API for Routing

• Goal
• Consistent API for leveraging routing mesh
• Flexible enough to build higher abstractions
• Openness promotes new abstractions
• Allow competitive selection to determine right
  abstractions
• Three main components
• Invoking routing functionality
• Accessing namespace mapping properties
• Open, flexible upcall interface

17
DOLR on Routing API
18
DOLR Implementation

• Endpoint E, client C, key K
• Publish route(objectId, publish, K,
  E)Forward upcall
• store (K,E) in local storage
• sendToObj route(nodeId, n, msg)Forward
  upcall
• e Lookup (K) in local storage
• For (n ? e), route (ni, msg)
• If (n gt e), route (nodeId, n - e, msg)

19
Storage API Overview

• linsert(key, value)
• value lget(key)

20
Storage API

• linsert(key, value) store the tuple ltkey, valuegt
  into local storage. If a tuple with key already
  exists, it is replaced. The insertion is atomic
  wrt to failures of the local node.
• value lget(key) retrieves the value associated
  with key from local storage. Returns null if no
  tuple with key exists.

21
Basic DHT API Overview

• insert(key, value, lease)
• value get(key)
• release(key)
• Upcalls
• insertData(key, value, lease)

22
Basic DHT API

• insert(key, value, lease) inserts the tuple
  ltkey, valuegt into the DHT. The tuple is
  guaranteed to be stored in the DHT only for
  lease time. value also includes the type of
  operations to be performed on insertion. Default
  operation types include
• REPLACE replace value associated with the same
  key
• APPEND append value to the existing key
• UPCALL generate an upcall to application before
  inserting

23
Basic DHT API

• value get(key) retrieves the value associated
  with key. Returns null if no tuple with key
  exists in the DHT.

24
Basic DHT API

• ltkey, valuegt scan(searchKey) let n denote the
  node responsible for searchKey. Return the tuple
  stored at n whose key follows searchKey. If no
  such a key exists, returns the first key that
  follows searchKey and which is not mapped on n.
• Notes
• If there is a tuple whose key is equal to
  searchKey, then that tuple is returned
  (degenerates to get() operation)
• This function assumes a total order amongst the
  keys.
• This function can be used to implement global
  scan in DHT

25
Basic DHT API

• Release(key) releases any tuples with key from
  the DHT. After this operations completes, tuples
  with key are no longer guaranteed to exist in the
  DHT.

26
Basic DHT API Open questions

• Semantics?
• Verification/Access control/multiple DHTs?
• Caching?
• Replication?
• Should we have leases? It makes us dependent on
  secure time sync.

27
Replicating DHT API

• Insert(key, value, numReplicas) adds a
  numReplicas argument to insert. Ensures
  resilience of the tuple to up to numReplicas-1
  simultaneous node failures.
• Open questions
• consistency

28
Caching DHT API

• Same as basic DHT API. Implementation uses
  dynamic caching to balance query load.

29
Resilient DHT API

• Same as replicating DHT API. Implementation uses
  dynamic caching to balance query load.

30
Publish API Overview

• Publish(key, object)
• object Lookup(key)
• Remove(key, object)

31
Publish API

• Publish(key, object) ensures that the locally
  stored object can be located using the key.
  Multiple instances of the object may be published
  under the same key from different locations.
• object Lookup(key) locates the nearest
  instance of the object associated with key.
  Returns null if no such object exists.

32
Publish API

• Remove(key, object) after this operation
  completes, the local instance of object can no
  longer be located using key.
