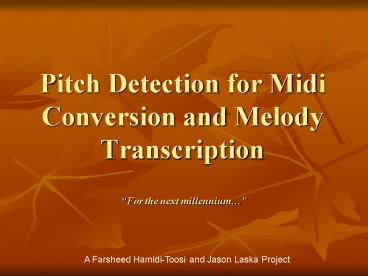

Title: Pitch Detection for Midi Conversion and Melody Transcription


1
Pitch Detection for Midi Conversion and Melody
Transcription
  • For the next millennium

A Farsheed Hamidi-Toosi and Jason Laska Project
2
Overview
  • Motivation
  • reasons for wanting this technology
  • Theory of Pitch Detection
  • harmonics of a musical note
  • HPS Algorithm
  • other Algorithms
  • Implementation/Goals
  • HPS Algorithm on the DSP
  • duration estimation through the serial output
  • conversion to midi file format
  • monophonic melody detection
  • polyphonic detection of 2 notes (intervals of at
    least 5ths)
  • Experiments/Simulation
  • Matlab analog frequency detector script
  • Simulink simulation of frequency detection
  • Matlab Mex-Function for generating midi files
    based on any given input
  • Problems/Caveats
  • low pitch fundamental is detected less than the
    1st octave harmonic.

3
Motivation for Project
  • many musicians would like to jot down their
    ideas quickly
  • ideal for musicians who would like to use their
    instrument of choice to play ideas, rather than
    play on a keyboard
  • helpful for musicians who dont know how to
    notate music (and for non-traditional approaches
    to music composition)
  • helpful for trained musicians who do not want to
    deal with time-consuming music notation software
    such as Finale
  • output to midi allows for standardization and
    exportation to a large suite of available
    applications for further processing

4
Frequencies and Harmonics of a Musical Note
  • a musical note is made up of a fundamental
    frequency, plus many other harmonics
  • the fundamental frequency is what we hear as a
    note or a pitch
  • different instruments have different timbres, or
    harmonic components

Diagrams Professor Fred Skiff Ahmed Diallo
5
Harmonic Product Spectrum Algorithm (HPS)
This algorithm provides a simple way for
extracting the fundamental frequency of a musical
note.
The Algorithm
  • First convert the sampled signal into the
    frequency domain using the FFT. Large peaks will
    appear, corresponding to the harmonic components
    of the note.
  • Downsample the original DFT at multiple rates (in
    parallel) multiples of the fundamental frequency
    line up.
  • Multiply each downsampled version of the DFT
    together to enhance the value of the fundamental.
  • After the multiplication, the remaining peak is
    the fundamental frequency. The original analog
    frequency of the short sample can be obtained and
    the note determined through a look-up table.
  • The Algorithm (Math)
  • Y(w) is the multiplication of downsampled
    versions of X(w)
  • The fundamental is the maximum value of Y(w)

6
de la Cuadra, P., Master A., Sapp, C. 2001.
"Efficient Pitch Detection Techniques for
Interactive Music"
Pitch Detection Theory
7
Problems and Solutions (HPS)
  • Problem Significant change between notes or
    noise on signal
  • can cause detection of incorrect pitch (wrong
    fundamental frequency detected)
  • can be solved by looking for long patterns of the
    frequency to detect outliers
  • Problem Low pitches are detected with the
    frequency at the 1st octave harmonic.
  • this happens because the spacing between notes at
    low frequencies is very narrow (a high resolution
    FFT is needed to truly compute the pitch which
    would require a lot of computational power per
    sampling set)
  • one solution is to choose the lower octave when
    the peak before the chosen peak has amplitude of
    about half the chosen peaks amplitude
  • another solution is to detect that a pitch might
    be high or low, and perform a high resolution FFT
    on just the low samples

Pitch Detection Theory
8
Other Algorithms
  • Maximum Likelihood
  • compares the frequency spectrum of the input
    samples to predetermined frequency spectra
  • fast for small set of pitch choices
  • works well with sounds of consistent timbre
  • Zero Crossing
  • time domain algorithm
  • count the number of times samples cross a
    zero-level reference in a given block
  • very inaccurate
  • detects high vs. low pitch

Pitch Detection Theory
9
Using the DSP for Pitch Detection
  • take in blocklen samples of sound
  • process each block to find the pitch using HPS
    algorithm
  • map the calculated analog frequency of this
    pitch to a predetermined pitch number for
    serial output on the DSP (a look-up table)

10
Using the Serial Port to approximate duration of
pitch
  • each processed block will output its pitch (or
    no sound) at a constant rate on the serial port
  • this constant rate is known and can be used to
    calculate the duration of a note based on how
    many times in a row its value was output
  • a simple Matlab script or function can compute
    this based on the output vector and generate a
    midi file
  • error checking (for incorrect pitches) can be
    applied here

Implementation
11
Converting to Musical Instrument Digital
Interface (MIDI)
  • What is MIDI?
  • a powerful communications protocol for digital
    music first introduced in 1983 that allows for
    storage of musical data (.mid file) or
    transmission of data from a keyboard or MIDI
    triggers
  • MIDI contains information about tempo, time
    signature, key, notes, even the instrument
    patch (i.e. piano or bass guitar)
  • any of these parameters in the midi file can be
    modified independently (i.e., can patch to
    choices of several general instruments as well as
    custom instruments)
  • MIDI can also be used for music notation
    (Finale, Cakewalk)
  • How commonly used is midi?
  • Midi is the industry standard for digital music.
    Almost all professional (and high end consumer)
    digital keyboards support midi, as well as
    professional audio recording suites

12
Converting to Musical Instrument Digital
Interface continued
  • How does the midi format work?
  • information about the track is stored in a
    header
  • information about the composition (key, tempo,
    etc.) can be stored in a track chunk that
    applies to the whole file
  • information about notes can be stored into
    several track chunks. This can allow for
    multiple instruments to play at the same time.
  • note information is as simple as note on and
    note off. The note on is given a specific
    time offset from the previous note, and the note
    off is given a time offset from its
    corresponding note on.
  • there are many extra features that support
    specifics of different instruments such as soft
    pedal, decay of note, vibrato settings, etc
  • How do midi synthetic sounds work?
  • general MIDI sounds mimic real instruments by
    generating harmonic components associated with
    specific instrument timbres

13
findPitch.m
  • findPitch.m
  • This is a demonstration file which takes
  • the name of a wave file and detects the
    fundamental
  • frequency and returns this number in
  • analog freq.
  • function findPitch(filename)
  • Get File
  • note,samprate,bitdepth wavread(filename)
  • Get Size of file
  • notelen length(note)
  • Take the fft
  • fftNote (abs(fft(winNote))).2
  • figure, plot(fftNote(1halflen))
  • title('fft of the note')
  • Go through the fft and downsample/multiply (3
    times)
  • fftNote2 fftNote
  • fftNote1 fftNote
  • fftNote3 fftNote
  • downsample(fftNote1,2)
  • downsample(fftNote2,3)
  • downsample(fftNote3,4)
  • totalfft fftNote.fftNote1.fftNote2.fftNote3
  • figure, plot(totalfft(1halflen))
  • title('Fundamental Frequency Selected')
  • Find the freq of max peak
  • Y,I max(totalfft(1halflen))

14
Hanning Window
15
findPitch ( C4, 261.6255653006 Hz, piano)
Example for middleC.wav
findPitch middleC.wav TheNote 262.1984
16
findPitch ( A0, 27.500 Hz, piano)
Example for A0Piano.wav findPitch('A0Piano.wa
v') TheNote 55.4950
Note This corresponds to A1, not A0. The HPS
algorithm makes the error of choosing a frequency
one octave higher than the fundamental this is
because for low frequencies we see two large
spikes, with the higher frequency being greater
in amplitude. However, if the smaller, lower
frequency spike is greater than half of the
larger, higher frequency spike, the lower spike
is the true fundamental frequency.
17
MidiGen
This MIDI file was generated with a Matlab
function. You can see the portability of the
MIDI format as we exported the MIDI file to Lime
which transcribed the MIDI file to musical notes.
18
Timeline
  • decide on DSP output format and achieve serial
    output ability (the week of 4/12/04)
  • implement pitch detection and correction on the
    DSP (the week of 4/19/04)
  • modify MidiGen for determined format (the week
    of 4/19/04)
  • Extras
  • experiment with polyphonic sounds (starting
    4/19/04)
  • modify project for polyphonic detection if
    possible (starting 4/19/04)

Goals
