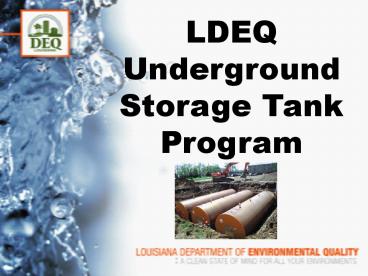

LDEQ Underground Storage Tank Program

1
LDEQ Underground Storage Tank Program
2
2008 LOMCSA Conference Presentation

• LDEQ USTD Update
• Hot Topics
• Energy Act Status
• MFUSTTF Update

3
LDEQ USTD UPDATE

• New Executive Staff
• USTD Supervisors in Lafayette, Monroe, New
  Orleans and Baton Rouge
• Staff now in Harahan, Mandeville, Pineville,
  Lafayette, Lake Charles, Monroe, Shreveport,
  Baton Rouge and Lockport offices
• Total staff headcount in USTD 43

4
(No Transcript)
5
LDEQ USTD UPDATE

• Some remediation oversight work still performed
  by other Divisions but decreasing
• Contractors being used to assist in performing
  inspections
• Small business assistance working with owners
• Enforcement and trust fund remain separate but
  closely coordinated.

6
USTD Universe

• 4573 sites (not closed), 4100 paying invoices
• 380 Stage 2 Vapor Recovery sites 80 Stage 1
  sites
• 841 UST Remediation Sites, 715 trust fund
  eligible
• 78 UST Post-Hurricane sites
• 173 UST Remediation Sites handled outside of
  USTD.

7
USTD NumbersJuly 1, 2007- June 30, 2008

• NFA letters 112
• Comfort letters 76
• Closure Complete letters 17
• Total UST Remediation Sites Closed 205
• Closures 467 tanks
• Installations 281 tanks
• Change of Ownerships 408

8
USTD NumbersJuly 1, 2007 June 30, 2008

• CEI Inspections Total 1221
• CEIs USTD 687
• CEIs Contractor 534
• Other Inspections Total 855
• Closure 121
• Installation 14
• Incident 30
• Follow Up 56
• Stage 2 380
• Remediation 475
• Total UST Inspections 2076

9
USTD Outreach - Brochure

• Reporting
• Recordkeeping
• Reminders

13
10
E-Newsletter
11
USTD Website
12
XP Class
13
USTD Hot Topics
14
Common Compliance Issues

• Improper release detection performance or no
  release detection
• No corrosion protection on metal flex hoses
• Not maintaining required facility records
• Not updating Registration forms (UST-REG-01 and
  UST-REG-02).

15
Lined Tanks The Issue

• Tanks are required to be re-evaluated 10 years
  after upgraded by lining
• Most tank liners failed when inspected
• Options are to inspect and repair liners or
  evaluate tank integrity and install corrosion
  protection
• LDEQ was requested to consider an alternative
  tank integrity evaluation method similar to what
  is allowed in Mississippi Texas

16
Lined Tanks Decision

• LDEQ contacted EPA to discuss federal position
  EPA deferred to State
• LDEQ researched available methods and industry
  status and evaluated costs
• LDEQ discussed with LOMCSA members
• LDEQ brought before the MFUSTTF Advisory Board
  for input
• LDEQ reached decision to allow an alternative
  assessment method using tank tightness testing
  provided that certain requirements were met.

17
Louisiana Alternative Assessment Procedure

• Tank Tightness Test prior to addition of IC
  system
• Tank Tightness Test 3 to 6 months after addition
  of IC system
• Annual Tank Tightness Testing thereafter (can use
  ATG or SIR for the annual tests if 0.1gph leak
  rate at correct product level)
• Monthly release detection other than Inventory
  Control or Manual Tank Gauging
• Facilities that installed IC systems without
  performing integrity assessments can use LAAP by
  performing TTT immediately, then annually
  thereafter

18
Lined Tanks Considerations for Owners

• Compatibility with alternative fuels
• Cost to perform testing and install impressed
  current at low throughput facilities
• Planned life of facility
• Cost of closure and deductible if release
  discovered
• Potential liability if a catastrophic leak
  occurs.

19
Motor Fuel Delivery Certificates

• Meeting held with LOMSCA Members to discuss
  issues
• Changing market conditions
• Brokers attempting to obtain certificates
• Audit issues
• Make certain everyone being treated equally
• Additional discussions to be held.

20
LDEQ Abandoned Tank Program

• Interest from trust fund used to address
  abandoned properties
• Financially unable to pay must provide
  financial information
• When work completed, lien placed on property
• Work done through contracting
• Funding available ramping program up.

21
LDEQ Post-Hurricane Assessments

• EPA provided approximately 12 million to
  evaluate and clean up releases that may have been
  caused by the Hurricanes
• No tank removals or repairs allowed
• Two contracts have been awarded
• Site Assessment
• RECAP/CAP development
• Additional contracts for Corrective Action
• Will reduce impact on Trust Fund.

22
Alternative Fuels

• Ethanol Blends (E10, E85), Biodiesel
• 2 E85 sites in Louisiana (Sulphur BR)
• Additional E85 sites in Baton Rouge soon
• DEQ Website (UST Division, Other Helpful Links)
• Alternative fuel information
• Conversion documents

23
Alternative Fuels

• Documented problems
• Equipment compatibility (LAC 33XI.505)
• Check all equipment for compatibility
• Phase separation
• 0.35 water can cause ethanol to drop out
• Water tight UST system
• Monitor for water regularly
• Accelerated corrosion and conductivity

24
UST Air Issues

• National Emissions Standards for Hazardous
  Pollutants Federal Requirement
• Ozone non-attainment
• Stage 2 Vapor Recovery to be determined based
  on Ozone non-attainment and SIP
• Stage 2 Exemption Rule E85 facilities, new car
  rental facilities and new car manufacturing
  facilities
• Vapor freeing issues ozone non attainment
• See new Frequently Asked Questions on USTD
  website!

25
New Federal Regulations

• EPA will be developing new regulations
• Will address Energy Act components as well as
  cleanup of old regulations that were written in
  1988
• We have been told that EPA will defer to state
  regulations for states with federal delegation
• New regulations are being primarily developed for
  tribal lands and states without federal
  delegation.

26
New Federal Regulations

• These regulations would provide EPA with red tag
  authority in our state
• Regulations being developed using standard
  federal process
• EPA has been meeting with various groups to begin
  process
• We plan to be involved in federal rulemaking.

27
Other EPA UST Initiatives

• More aggressive cleanups incident backlog
  project
• Petroleum Brownfields abandoned site cleanup
• Financial assurance more scrutiny of state fund
  soundness
• Alternative Fuels compatibility issues

28
Path Forward
29
DEQ in 2008-2009Focus Areas 10 Point Plan

• 1. Ethics and Integrity
• 2. Transparency
• 3. Level Playing Field
• 4. Front-Loading
• 5. Regionalization
• 6. Investment in Employees
• 7. Investment in Community Organizations and
  Local Governments
• 8. Investment in Small Businesses
• 9. Investment in Green Government and Applied
  Research
• 10. Investment in Technology and eBusiness

16
30
USTD 08-09 Initiatives

• Expand outreach - E-newsletters
• Online forms and payments
• Inspection Computerization
• Certified worker program improvements
• Expand abandoned tank program
• Increase involvement of MFUSTTF Board

31
USTD 08-09 Initiatives

• Finalize Secondary Containment regs
• Initiate Operator Training rulemaking
• Initiate clean up of state regs
• Revise closure guidance document
• Incorporate PFP principles and expand PFP
  program
• Participate in federal rulemaking effort.

32
ENERGY ACT
33
ENERGY ACT

• Financial Responsibility or Secondary
  Containment
• Delivery Prohibition
• Inspections
• State Compliance Report
• Public Record and,
• Operator Training.

34
Energy Act

• Secondary Containment
• Energy Act Work Group developed proposed rule
• Advanced Notice of Proposed Rulemaking published
  in 2007 no comment
• Minor changes made to address concerns brought
  out in later work group meeting
• Proposed rule published June 20, 2008, Public
  Hearing July 29, 2008, Comment Deadline August 5,
  2008, Scheduled to go final December 20, 2008.

35
Secondary Containment

• Tanks installed after 12/20/08
• Secondarily-contained (double-walled, jacketed,
  etc.) and interstitial monitoring

36
Secondary Containment

• Secondarily-contained piping with interstitial
  monitoring required

37
Energy Act

• Delivery Prohibition
• Tanks ineligible for delivery if spill
  prevention, overfill protection, leak detection
  or corrosion protection equipment is not
  installed and,
• Ineligible for delivery if written warning for
  improper operation of above and fail to comply.

38
Energy Act

• Delivery Prohibition
• EPA Deadline August 8, 2007
• LDEQ Status
• Rule Proposed 6/20/07
• Public Hearing 7/25/07
• Rule Final 10/20/07
• Implementation began 4/15/08

39
Energy Act

• Delivery Prohibition
• Red tags only placed on during inspection when
  verified and authorization given by USTD
  management
• Contractors not allowed to red tag during
  inspections, LDEQ supervisors will red tag
  contractor sites if violations still present
• Notice provided to distributers via blast fax,
  email and internet site.

40
Energy Act

• Delivery Prohibition
• Most common problem for immediate red tag no
  release detection
• Contractor findings are being corrected by owners
  prior to DEQ staff arriving to red tag
• Two sites red tagged by DEQ staff but expect more
  to come due to inspection schedule and 30 day
  notices being sent out.

41
Delivery ProhibitionRed Tags
42
UST Compliance Act August 8, 2007 Inspection
Deadline

• June 20, 2006-August 8, 2007 UST Inspections
• LDEQ Staff 457 CEIs
• EPA Contractors 913 CEIs
• DEQ Contractors 314 CEIs
• Total 1684 CEIs

43
Energy Act

• Inspections
• Must inspect every site once every three years
  with a one year extension possible for the first
  3 year cycle
• Current UST active site universe 4500 sites
• 3 year cycle 1500 inspections per year
• Year 1 1200 inspections by LDEQ and
  contractor, EPA planning to perform 300
• Trying to increase number of inspections so EPA
  contractors not needed --- dependent on
  contractor cost

44
Energy Act

• State Compliance Report
• Report must include
• Location of each government owned tank
• Date of last inspection of each non-compliant
  tank
• Actions taken to ensure compliance and,
• Basis for compliance determination.
• LDEQ will update report to EPA

45
Energy Act

• Public Record
• Must include the number, sources, and causes of
  underground storage tank releases
• The record of compliance
• The number of equipment failures
• Must be available for the public in paper and
  electronic format.

46
Energy Act

• Public Record
• EPA Deadline First Report due December 2008
  Begin gathering data October 1, 2007.
• LDEQ Status New form developed for release
  reporting Data being gathered QA/QC ongoing.

47
Energy Act

• Operator Training
• Training for 3 classes of operators
• Persons primarily responsible for operation of
  UST system (Class A)
• Persons having daily on-site responsibility for
  UST systems (Class B) and,
• Daily on-site employees having responsibility for
  emergencies caused by a spill or release (Class
  C) (Can be trained by an A or B Operator).

48
Energy Act

• Operator Training
• EPA Deadline Program developed by August 2009
  all workers trained by August 2012
• LDEQ Status Program development stage Energy
  Act Work Group meeting to develop rules

49
ENERGY ACT

• Operator Training Options
• 3rd party training and testing
• LDEQ training and testing
• Web-based training and testing
• Reciprocal training with adjacent states
• Facility specific training

50
Trust Fund
51
MFUST TF Funding Sources

• TWO SOURCES
• .8 cent per gallon fee that is remitted to the
  Department by wholesale distributors
• ( 21 million per year)
• Twelve distributors are audited randomly by DEQ
  Internal Audit per year (out of 345)
• 275 per year new and used oil tanks
• (25,000/year)

52
Claims Paid per Fiscal Year (Revenue is constant
20- 22 Million)

• FY Claims Claims Paid
• 2002 2011 25,333,94
• 2003 2240 23,321,322
• 2004 2178 19,953,818
• 2005 2217 18,282,085
• 2006 2214 16,718,257
• 2007 2503 16,391,867
• 2008 2600 17,000,000 (PROJ.)

53
MFUSTTF Reimbursement

• Unit cost for all activities up to the
  implementation of a CAP (Corrective Action Plan).
• CAP Activities are at Time Materials with bids
  required for anything over 10,000.00
• Average cost to complete site that requires
  remediation is 700,000.00.

54
Reimbursement Backlog

• Response Action Contractors (RACs) are allowed to
  submit claims quarterly.
• In 2003, there was a four month backlog.
• The current backlog is 14 days.

55
MFUSTTF

• 2003 - Trust Fund was paying to clean up 450
  sites while collecting 20 - 22 million per year
• 2008 - Trust Fund is paying to clean up 700
  sites while still collecting the SAME 20 - 22
  million per year.

56
MFUSTTF Other Expenses

• DEQ UST activities cost about 3 million to 4
  million per year.
• DEQ collects roughly 700,000 from UST
  registrations and roughly another 1 million from
  the EPA grants
• By law, the balance of the costs of LDEQ UST
  oversight (1.3 - 2.3 million) comes out of the
  UST Trust Fund.

57
Fund Soundness

• Cost to clean up all sites currently in
  Corrective Action Plan (CAP) phase is 46 million
  (this is over the next 4 to 6 years)
• Balance before encumbrances in Fund currently is
  22.5 million, plus in the next 4 years, we will
  collect 80 million more in fees.
• Current balance minus anticipated costs for the
  next four years is a negative 23.5 million,
  however, even this balance is improving by 2
  million to 3 million per year.
• 3 month audit each year no findings!

58
MFUSTTF Advisory Board

• Plan to expand advisory role of board
• Bring important issues before the board to make
  certain all sides are heard before decisions are
  made
• Use the board as a sounding board for ideas or
  ways to improve the program.

59
REMEDIATION OVERSIGHT GROUP (ROG)

• UST Division, Engineering, Toxicology, Trust Fund
  personnel
• Review remediation plans
• To ensure cleanup is required
• To ensure correct clean up levels are applied
• To ensure use of appropriate technology
• To identify quickly if the technology doesnt
  work as planned (approve 2 years funding at a
  time)
• To ensure the most Bang for the Buck

60
Remediation Oversight Group (ROG)

• Ensures cost effective expenditures and preserves
  money remaining in balance to clean up site
• Ensures viability of trust fund as a financial
  assurance mechanism for owners
• No longer a backlog for meetings, scheduled as
  soon as CAP received

61
Remediation Oversight Group (ROG)

• Meetings held with ROG, RACs and Owners to
  discuss CAP and budget
• Participation in person at HQ or regional office
  or via conference call
• OWNERs strongly encouraged to participate

62
Pay For Performance
Common Sense For Cleanups
63
Pay For Performance

• Time Materials Approach
• Traditionally, UST releases have been reimbursed
  on a pre-approved Time Materials approach
• The RAC performs a task and submits a claim for
  MFTF reimbursement for the time, equipment, and
  materials required to complete the task
  regardless of the environmental results

64
Pay For Performance

• Time Materials Problems
• Paying for time, materials, or services instead
  of environmental results
• Too much paperwork
• Too little focus on remediation
• Projects are too costly and take too long to close

65
Pay For Performance

• Pay For Performance Approach
• Pay For Performance is an alternative approach to
  reimbursing a RAC for corrective action
• Agreement between owner/operator RAC that sets
  a fixed price and timeframe for remediation
• LDEQ signs the agreement to encumber the
  necessary funds

66
Pay For Performance

• Key Components of PFP
• Firm, fixed price for remediation
• Specified timeframe for remediation
• Established remedial goals
• Contamination-reduction payments based on
  achieving milestones
• Can be used on new releases or existing time
  material releases
• Escape clauses

67
PFP Principles Being Considered for Time
Materials Program

• Revise ground water monitoring guidelines
• Tiered site investigations
• Run time on systems used to determine amount paid
  for OM
• Changing the way payments are made on reports
• Deductions for late submittals.

68
Cost Efficient and Expedient Site Closure

• Why is it important to you?
• You are responsible for any costs over the 1
  million allowed
• The fund is your financial assurance if fund is
  not financially sound insurance required
• 3rd Party Liability
• Allows you to sell your property when an offer is
  made instead of having to wait for cleanup to be
  completed.

69
LDEQ USTDContact Information

• Address P.O. Box 4314
• Baton Rouge, LA 70821
• Phone [phone]
• FAX [phone]
• Web http//www.deq.louisiana.gov/portal/tabid/265
  9/Default.aspx
