CS1030

1

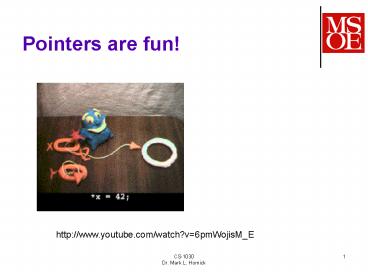

Pointers are fun!
http//www.youtube.com/watch?v6pmWojisM_E
2
Pointers are

• used to store the address of an object
• An address is legitimate data by itself in C
• Every memory location has an address
• a data type
• Ex int is a datatype
• pointer to int is also a (separate) datatype
• Since they hold memory addresses, all pointers
  are the same size in bytes (unlike the data they
  point to)

3
Pointer declaration confusion

• Declaration of a pointer uses the prefix
• int pValue // pointer to an integer
• int pValue // another way of declaring the same
• Be careful with multiple declarations on one
  line
• int pValue1, pValue2
• int pValue1, pValue2 // No!!!
• int pValue1 // OK
• int pValue2 // OK

4
Pointers unary operators

• New unary operators
• prefix address of (can use on pointers or
  regular variables)
• int aValue 3int pValue aValue // sets
  pValue to the addr of aValue
• prefix - dereference (can only use on pointers)
• int someOtherValuesomeOtherValue pValue //
  sets someOtherValue aValue

5
Pointers unary operators

• New unary operators
• prefix or postfix increment the address
  stored in the pointer
• int aValue 3int pValue aValue // addr
  might be 0x1234pValue // new addr is 0x1236
  why not 0x1235????
• // what does (pValue) do???
• -- prefix or postfix decrement the address
  stored in the pointer

6
Confusing syntax explained

• int aValue 1 // an intint anotherValue 2
  int pValue aValue // ptr to aValue//
  above line is same as// int pValue // ptr,
  but not initd// pValue aValue // now
  initdpValue anotherValue // points to
  anotherValue
• // what does pValue anotherValue mean???
  // whatever pValue points to now equals aValue
• pValue aValue// same as anotherValueaValue

A common C convention pointer variable names are
prefixed with p
7
More Confusing syntax

• int aValue 1 // an intint anotherValue 2
  int p1 aValue // ptr to aValueint p2
  anotherValuep1 p2 // same as
  aValueanotherValuep1 p2 // now both point
  to anotherValue

8
The NULL pointer

• Pointers should only be made to point at valid
  addresses
• The exception is the NULL pointer, whereint
  pValue NULL // points to address 0// or int
  pValue 0
• This is a convention that allows you to check to
  see if a pointer is valid

9
Pointing a pointer at a valid address

• Since a pointer holds an address, the pointer can
  be made to point anywhere in (data)
  memoryuint8_t pValue // 16-bit addr of 8-bit
  valuepValue 0x0038 // what is at 0x38???
• Now explain what this doespValue 0xFF

10
Pointers and arrays

• Say you define an array of characters
• char sABCD
• The string variable is actually a pointer to the
  beginning of the array, so we can write
• char ps s // or ps s0
• Dereferencing the pointer gives the value of the
  character at that address
• char c ps // same as c s0
• Incrementing the pointer advances the pointer
  address to the next character in the array
• ps // same as ps s1

11
Pointer Arithmetic

• Incrementing a character pointer advances the
  pointer address by one byte, to the next
  character in the array
• ps // value of ps increases by 1
• Say you define an array of longs
• long larray 1L, 2L, 3L, 4L
• long pl larray
• Incrementing a long pointer advances the pointer
  address by four bytes, to the next long in the
  array
• pl // value of pl increases by 4

Pointer arithmetic is dependent on the size of
theelement the pointer is declared to reference.
12
Pointers as function arguments

• Consider a function
• int16_t add( uint8_t px, uint16_t py)
• uint8_t means pointer to unsigned 8-bit int
• uint16_t means pointer to unsigned 16-bit int
• Since Atmega32 uses 2-byte addressing, all
  pointers are 2 byte variables
• GNU GCC passes arguments left to right using
  registers r25 to r8
• Above, value of px is placed in r24r25 (low,
  high bytes)
• Pxs value is the address of some 8-bit uint8_t
  value somewhere in memory
• Value of py (2 bytes) is placed in r22r23
• Calling such a function
• uint8_t x3
• uint16_t y4
• uint8_t px x
• uint16_t py y
• int16_t sum add(x, y)
• sum add(px, py)

px(high)
px(low)
. . .
. . .
. . .
. . .
x3
13
Within the function, the arguments must be
dereferenced to manipulate the values

• Implementing such a function
• uint16_t add(uint8_t px,uint16_t py )
• uint8_t tempx px
• uint16_t tempy py
• uint16_t sum tempx tempy
• // or uint16_t sum px py
• return sum

14
The const specifier

• Prevents objects passed by address from being
  changed within a function
• Heres the modified declaration of the method
  that passes by address
• void printValue(const int pValue)
• Usage printName( value )

15
Notation for const and pointers is tricky

• int x
• const int ptr1 x // x is constant
• // Cant use ptr1 to change x, but can change
  ptr1 to point to another object
• int const ptr2 x // ptr2 constant
• // Cant change ptr2 to another object, but can
  change value of x
• const int const ptr2 x
• // Cant do either
