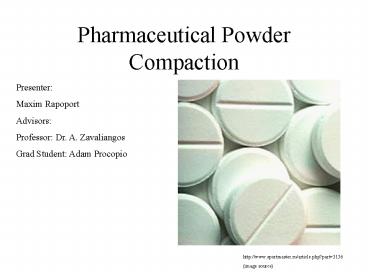

Pharmaceutical Powder Compaction

1
Pharmaceutical PowderCompaction
Presenter Maxim Rapoport Advisors Professor
Dr. A. Zavaliangos Grad Student Adam Procopio
http//www.sportmaster.ru/article.php?part3156 (i
mage source)
2
INDUSTRIAL APPLICATION
Porous Compact
Powder
3
ABAQUS POWDER COMACTION SIMULATION
4
FINDING CONTACTin non-contactingbodies
NO ZOOM
100x ZOOM
5
PARTICLE DISTANCE
How to gauge distance between particles?
?
6
NORMAL
7
PROBLEM WITH NORMAL
The P1 is a point in particle 1 P2 and P3 are
point in particle 3 When normal is calculated P1
is very close to the line given by P2-P3 Contact
is detected even though P1 is far from p1-p2
1
RESULT overestimation at early stages
2
3
8
COLLISION
Before
After
9
RESULTS
NORMAL
COLLISION
10
Snap shot-Last Stages
Coordination Number
Normal
Collision
11
Snap shot-Early Stages
Collision
Normal
12
ANALYSIS

• Algorithms converge on late stages
• Normal algorithm overestimates the number of
  contact in early stages
• Collision algorithm makes rearrangement apparent

13
Current Work

• Verification of correctness of algorithm
• Using contact pairs to evaluate contact area and
  orientation
