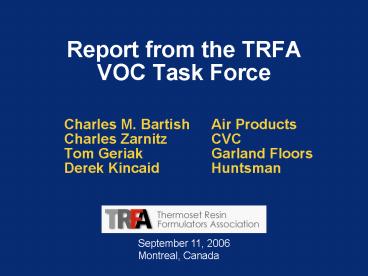

Report from the TRFA VOC Task Force

1
Report from the TRFA VOC Task Force

• Charles M. Bartish Air Products
• Charles Zarnitz CVC
• Tom Geriak Garland Floors
• Derek Kincaid Huntsman

September 11, 2006 Montreal, Canada
2
TRFA and VOCs Background

• New US regulations are sharply reducing levels of
  VOCs acceptable in coatings formulations
• Significant discussion in Regulatory Affairs
  session in Ft. Lauderdale re new VOC legislation
• Coatings, Civil Engineering, Flooring Committee
  requested effort to address issue for TRFA
• Team formed to address issue, focused on needs of
  TRFA companies
• Purpose of this presentation is to update the
  membership on accomplishments to date

3
Why is there concern about VOCs?

• Any volatile compound of carbon is a VOC for
  regulatory purposes, unless specifically exempted

• VOC NOx Sunlight ? O3
• Precursors motor vehicle exhaust, industrial
  emissions, gasoline vapors, chemical solvents
• Sunlight, hot weather lead to harmful
  concentrations
• Winds carry O3 and its precursors miles from
  sources
• Ozone is harmful to health and the environment
• Triggers health problems even at very low levels
• Long-term exposure may cause permanent lung
  damage
• Damages plants and ecosystems

4
VOCs are regulated federally and locally

• Federal Clean Air Revisions Act of 1996
• resulted in stricter national VOC regulations.
• AIM (Architectural and Industrial Maintenance)
  regulations became effective in 1999.
• EPA "non-attainment" areas exceeding 8-hr
  standards
• Some state regulations even tougher and impact
  coatings
• California (CARB) and New Jersey strict standards
• Southern California (SCAQMD) has the toughest
  rules
• Ozone Transport Commission (OTC) regulations
• Areas from Northern Virginia to New England
  adopted lower VOC limits January 2005.
• More regulations coming
• LADCO Lake Michigan Air Directors Consortium
• VISTA Visibility Improvement State and Tribunal
  Association of the Southeast

5
Ozone 8-hr non-attainment areas
6
Impact Regulations are driving down allowable
VOC content in coatings
7
TRFA formed the VOC Task Force

• Industry team members with interest, commitment
  to address issue
• Charlie Bartish Air Products and Chemicals
• Charlie Zarnitz CVC Specialty Chemicals
• Tom Geriak Garland Floors
• Derek Kincaid Huntsman
• Significant participation from TRFA
  administration
• Jeri Church
• Kathy Fatz
• Benzyl alcohol suppliers asked, but declined to
  participate

8
Task Force approaches outlined

• Focus on VOC issues related to benzyl alcohol
• Common ingredient in many formulated products
• Limited volatilization formulation dependent
• Consider alternate performance-equivalent
  solvents supplier feedback pessimistic based on
  work to date
• Define why benzyl alcohol should not be
  classified VOC
• Existing analytical methods (EPA 24, ASTM 2369)
  overstate VOC impact of benzyl alcohol
• Develop and get new method approved
• Components can be excluded, i.e. reactive
  diluents
• EPA process, although tedious, exists to delist
  chemicals from VOC list
• Work closely with other organizations with common
  interests
• NPCA, ASTM, CARB, SCAQMD, EPA

9
Insights into new method development

• Current method EPA 24
• 0.3 g sample thin sample dissolved in 3 ml
  solvent
• Hard to include fillers and other additives
• Cure at 110C for 1 hr in forced draft oven
• Benzyl alcohol has a low vapor pressure, but EPA
  method will encourage volatilization
• Methods should reflect real world use
• TRFA proposed experiments to characterize impact
  of temperature on VOC measurement

10
TRFA experiments to characterize impact of
temperature on VOC

• VOC measurement should be dependent on
  temperature of bake oven
• TRFA companies provided three hardeners
  containing benzyl alcohol from 30 50.
• Formulated product gave benzyl alcohol in the
  range of 13 18.
• CVC measured VOC content by EPA 24 on the
  formulated product, but varied temperature of
  test to measure impact

11
Reduced bake temperature in EPA 24 gives more
realistic VOC results
12
ASTM task group D01.21.24B proposed changes to
ASTM 2369

• ASTM task group leading efforts to change methods

• Addressing high (gt90) solids coatings
• Fred Gelfant (Stonhard) chairs task group
• Proposed changes include
• Sample size not limited to 0.3 g
• Apply at thickness for product intended use
• No solvent dilution required in test
• Up to 24-hr cure time
• These changes could benefit the benzyl alcohol
  case.
• Stonhard data supports conclusion
• TRFA will work more closely with ASTM
• EPA letter will allow use of changes in certain
  areas

13
EPA exemption letter expected to allow use of
revised procedure

• EPA committed to issue exemption letter
• Timing still unclear
• Will allow changes to VOC test procedure for
  two-component, high solids coatings
• Revision of ASTM 2369 will include all changes
  described earlier

14
Next steps and what you can do to help

• Gain active support from CARB / SCAQMD re oven
  temperature change in method
• Validate Task Force lower temperature oven test
  results against proposed ASTM method changes
• Volunteer for ASTM analytical round robin test
  program
• Provide supporting data that benzyl alcohol has
  remained in coatings over time
• Join, support ASTM committee D.01 and signal
  approval of changes to ASTM D2369

15
Delisting benzyl alcohol as VOC or finding
replacement is a long shot

• NPCA has experience leading effort to delist
  tertiary-butyl acetate as VOC
• Nearly a five-year effort
• Test data necessary
• Three year effort abandoned on benzyl alcohol
• Finding alternate, drop-in carrier to benzyl
  alcohol not likely in near future
• Supplier companies have had programs to identify
  alternate carriers
• Challenge is to find performance equivalent
  materials (reactivity, physical properties)

16
Conclusions

• New VOC regulations require a response from TRFA
  formulators to meet new requirements
• Formulations containing benzyl alcohol need
  attention to meet new VOC limits
• TRFA VOC Task Force is formed and has reviewed
  several options for solutions
• Benzyl alcohol delisting or replacement low
  probability to meet time needs
• Modification of analytical methods EPA 24 / ASTM
  2369 offers good potential for success and may be
  usable in near future
• TRFA VOC Task Force will work closely with ASTM
  to influence industry forward program
