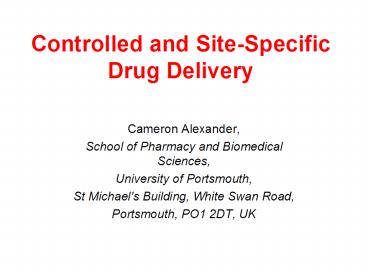

Controlled and Site-Specific Drug Delivery

• Cameron Alexander,
• School of Pharmacy and Biomedical Sciences,
• University of Portsmouth,
• St Michael's Building, White Swan Road,
• Portsmouth, PO1 2DT, UK

2
Outline of course

• Introduction

• The need for controlled and site-specific drug
  delivery

• Why do we need controlled and site-specific drug
  delivery?

• disadvantages of current methods
• advantages of controlled and targeted release

Polymer-based delivery systems

• Polymers in current use
• polymer therapeutics in situ drug release
• Smart or responsive polymers
• pharmaceutical targeting and dynamic release
• Imprinted polymers
• potential new release systems

Future Trends References/Further reading Links
3
Why do we need controlled drug delivery?
Reasons

• Medical
• - Optimum dose, at the right time, and in the
  right location

• Industrial
• - Efficient use of expensive ingredients,
  reduction in production costs

• Societal
• - Beneficial to patients, better therapy,
  improved comfort and standard of living

4
Why do we need controlled drug delivery?
Case study

• Inositol Monophosphatase and Manic Depression
• Manic depression affects 1 population (500,000
  people in UK)

• Inositol Monophosphatase catalyses cleavage of
  phosphate from inositol- 1-phosphate

• Loss of phosphate causes cell responses
  overactive in manic depression

• Currently treated via lithium ion therapy
  inhibition of Inositol Monophosphatase

• Lithium ion therapy
• Lithium ions extremely toxic (2 mM)
• Very narrow therapeutic window (0.8- 1.2 mM
  optimum

• Mode of action by replacing Mg2 in IMPase

A candidate for controlled release?

• New IMPase inhibitors being developed
• Expensive?
• Time taken for clinical acceptability?

• Controlled delivery of lithium ions
• Existing treatment without danger of crossing
  threshold toxicity?

5
Why do we need controlled drug delivery?
Disadvantages of current methods

• The drug does not reach the active site
• wasteful, potential toxic responses at other sites

• The drug does not reach the active site in the
  desired concentration

• expensive, ineffective at applied dose

Advantages of new methods

• Maintenance of drug levels within a desired
  range

• efficient, need for fewer administrations

• Delivery of difficult drugs
• slow release of water-soluble drugs, fast release
  of low-solubility drugs


6
The need for controlled release
Examples

• Poorly-soluble drugs
• Danazol (pituitary gonadotropin inhibitor)
• Can be solubilised in b-cyclodextrin

• Peptides and proteins
• Proteolysis in vivo, poor bioavailability
• Insulin delivery in diabetes treatment (predicted
  to affect 200million people by 2040!

• Nucleic acids
• Degradation by exo- and endo nucleases barrier
  to gene therapy

• Alcoholic Binge Causes Massive Degradation of
  Hepatic Mitochondrial DNA in mice.
  Ethanol-induced mitochondrial DNA depletion was
  prevented by 4-methylpyrazole, an inhibitor of
  ethanol metabolism, and attenuated by melatonin,
  an antioxidant.
• CONCLUSIONS After an alcoholic binge, ethanol
  metabolism causes oxidative stress and hepatic
  mitochondrial DNA degradation in mice.
  Gastroenterology, 117(1)181-90 1999

7
What is a polymer and how can they help?
What is a polymer?

• Large molecule composed of a number of sub-units
• Natural e.g. alginates,
• synthetic e.g. poly(HMPA)
• Function governed by number and arrangement of
  constitutional repeat units e.g. A-n,
  -A-B-n, -A-A n-B-B m , --A-A-B-A-B-B-A-

• How are they made?
• Processing of natural products alginates from
  seaweeds, celluloses from plants

• Synthesis from chemical feedstocks
  poly(olefins), nylons, poly(esters)

• How can they help?
• Protection of therapeutic compound during passage
  through body, as encapsulant or carrier.

• Mediator or activator of controlled release

8
Examples of polymers in drug delivery

• Monolithic devices
• films with the drug in a polymer matrix
• Easy to fabricate, typically by simple mixing of
  polymer and drug

• Example Eudragit RS100 polymer, mixed with
  sorbitol and Flurbiprofen

• Reservoir devices
• Drug contained by the polymer
• Release is usually diffusion controlled (Fickian)
  i.e. J -D?C where J flux, C component of
  concentration across membrane of defined area,
  and ? is a differential vector operator
• Example PharmazomeTM Theophylline release

• Leachable additives
• Polymer contains drug and a second component
  which is typically hydrophilic and diffuses out,
  rendering the polymer porous thus releasing the
  drug.

• Polymer drug conjugates
• Polymer attached to drug by (covalent)
  sacrificial linker

• Example HMPA-doxorubicin (PK1, FCE 28068)
  undergoing clinical trials

9
Examples of polymers in drug delivery
Microencapsulation

• Polymer capsules containing active therapeutic
• Natural or synthetic polymers can be used to form
  capsules

• Widely adopted in industry fragrance release,
  flavour masking etc

• How are they made?
• Interfacial polycondensation
• polymer forms at boundary of two-phases
• Proteins and cells can be encapsulated
• Controlled gelation in aqueous solution
• E.g. addition of sodium alginate drug in water

• Mode of drug release
• Physical disruption of capsules
• Diffusion through porous capsule membrane
• Example SouthernBiosystems (sucrose acetate
  butyrate) for ocular drug release

10
Examples of polymers in drug delivery

• Biodegradable polymers
• Polymer degrades in vivo to release the drug
• Simple release mechanism, but difficult to obtain
  fine control over degradation

• Does not invoke an inflammatory or toxic
  response.

• Is metabolized in the body after fulfilling its
  purpose, leaving no trace

• Common biodegradable polymers
• Poly(lactide-co-glycolide) (PLGA)
• Poly(hydroxybutyrate-co valerate) (Biopol)

• Synthesis of biodegradable polymers
• Chemical synthesis
• Bacterial biosynthesis (Biopol)

• Examples in use
• Dexon (poly(glycolide)
• Vicryl (PLGA)

11
Examples of polymers in drug delivery
Polymers for oral delivery - hydrogels

• Major class of polymer drug delivery vehicles
• Three-dimensional, hydrophilic polymeric
  networks, swollen with water

• Cross-linking between polymer chains determines
  swelling and gel flexibility

• Natural or synthetic derived very large number
  of hydrogels have been produced

• Ionic (acidic, basic) or neutral dependent on
  desired application

• Inherently biocompatible strongly hydrated

• How are they made?
• Example 2-hydroxyethylmethacrylate (HEMA)

• Mode of drug release
• Diffusion of drug from gel complex
  mechanistically due to gel microstructure

• Active efflux next lecture!

12
Examples of polymers in drug delivery
Polymers for oral delivery - mucoadhesives

• 2nd Major class of polymer drug delivery
  vehicles

• Similar in design features to hydrogels
  (sub-class)

• Ability to localise at mucus membrane via
  adhesive interactions

• Contain functional groups for binding to mucosal
  surfaces primarily H-bonding

• Pendant chains for intimate contact and
  interdigitation with mucins

• Inherently biocompatible strongly hydrated

• How are they made?
• Example Methacrylic acid poly(ethylene oxide)
  mucoadhesives

• Mode of drug release
• Diffusion of drug from gel can be activated by
  pH or hydration change

• Active efflux next lecture!

13
Examples of polymers in drug delivery
Thermosensitive hydrogels in drug delivery
14
Examples of polymers in drug delivery
Polymers for cancer therapy delivery of
therapeutics

• Requirements for intracytoplasmic delivery - 1
• Biocompatible vector
• Ability to carry drug or therapeutic
• Protection against biodegradation/metabolism
  prior to site delivery

• Avoidance of rapid liver uptake

• Requirements for intracytoplasmic delivery - 2
• Appropriate cell targeting functionality
• Ability to enter cell by endocytosis
• Ability to exit endosomes and enter cytoplasmic
  compartments

• Traffic intracellularly to appropriate organelle
• Deliver drug at target by suitable mechanism

15
The Enhanced Permeability and Retention (EPR)
effect

• Schematic diagram showing the fate of long
  circulating polymerdrug.

• Top panel shows the selective uptake of the
  polymer

• conjugate by the enhanced permeability and
  retention (EPR) effect.

• Bottom panel shows the uptake of polymer
  conjugates by endocytosis-release

• of drug intracellularly.

16
The Enhanced Permeability and Retention (EPR)
effect
Schematic diagram showing a) lysosomotropic b)
intracytoplasmic delivery Lysosomal enzymes (E)
are shown to illustrate the effects of their
presence on polymer-drug conjugates
17
References

• Reviews

• Smart polymers and what they could do in
  biotechnology and medicine. Galaev, I.Y.
  Mattiasson, B. TIBTECH. 17, 335-340 (1999).

• Hydrogels as mucoadhesive and bioadhesive
  materials a review. Peppas NA, Sahlin JJ.
  Biomaterials (1996) 17 1553-1561

Websites

• http//atom.ecn.purdue.edu/peppamer/research/biop
  oly.html

• http//www.searlehealthnet.com/pipeline.html
• http//www.polymers.com/

18
Ficks Laws of diffusion
Fick's First Law The flux, J, of a component of
concentration, C, across a membrane of unit area,
in a predefined plane, is proportional to the
concentration differential across that plane such
that
Fick's Second Law The rate of change of concentr
ation in a volume element of a membrane, within
the diffusional field, is proportional to the
rate of change of concentration gradient at that
point in the field, as given by
where t time.
19
Polymer collapse in a chiral environment
Variation of polymer LCST in presence of amino
acid
Possible mechanism

• L-Tryptophan interacts with amide groups,
  stabilising polymer in water.

• D-tryptophan interaction blocked by bulky
  sec-butyl chains along polymer backbone. Polymer
  destabilised

20
Biomolecular recognition systems
21
Polymer-based separations

• Smart or responsive polymers
• What is a smart polymer?
• Macromolecule capable of a non-linear response to
  an external stimulus

• e.g. temperature, pH, magnetic and electric field
  sensitive systems


22
